LeCroy WaveAce series User Manual

Getting Started Manual
WA-GSM-E RevB
60
USING THE FFT MATH FUNCTION

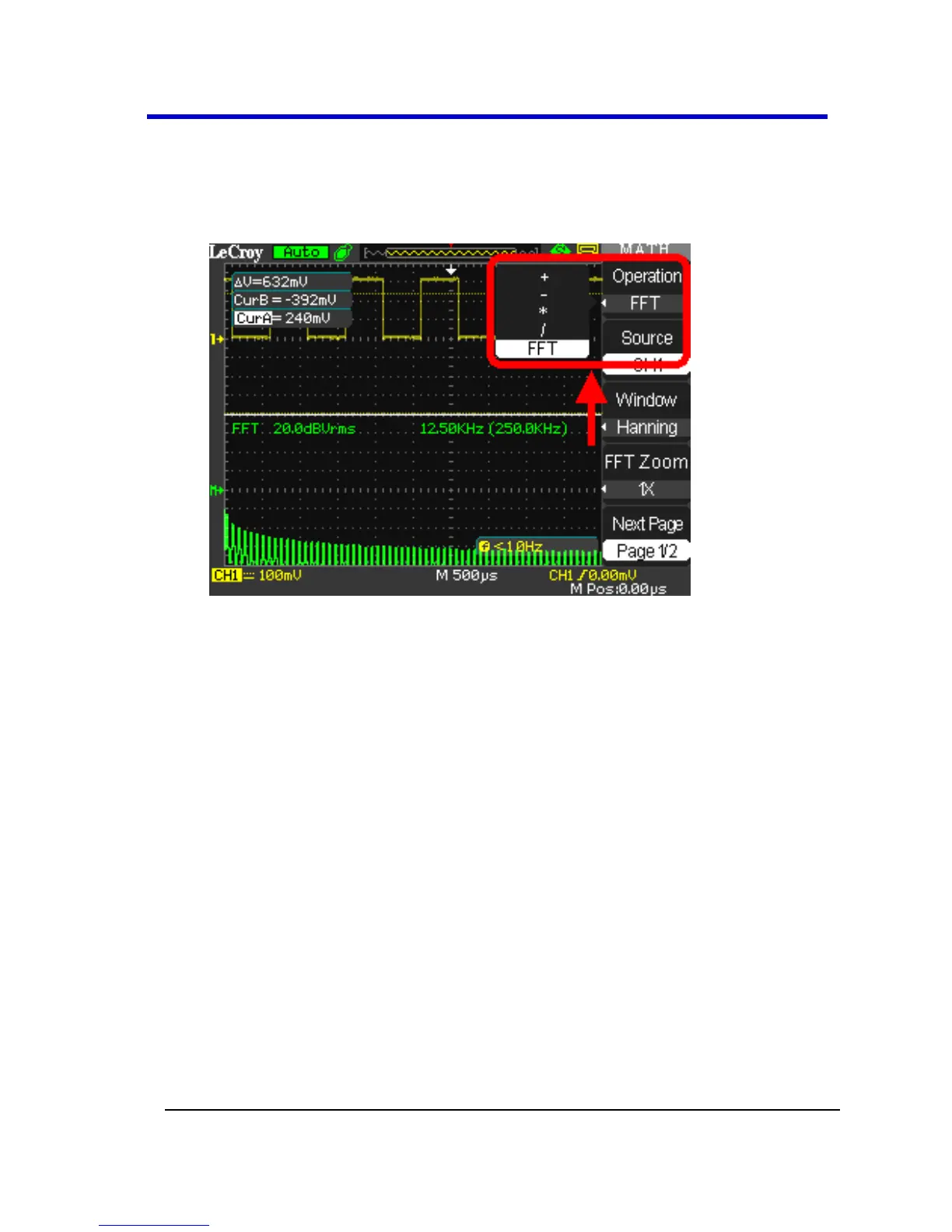

1. Set up an FFT math function by pressing the MATH front panel
button. The Math menu is shown.
2. Press the Operation menu option button and select FFT.
3. Press the Source menu option button and select a source (CH1,
CH2) for the FFT waveform.
4. Press the Window menu option button and select a type of window
(Rectangle, Hanning, Hamming, or Blackman).
5. Press the FFT Zoom menu option button and select a zoom factor
(1X, 2X, 5X, or 10X).
6. Press the Next Page menu option button to go to page 2/2.
7. Press the Scale menu option button and select Vrms or dBVrms.
8. Press the Display menu option button and select Split to display the
FFT waveform on the bottom half of the screen or Full screen to
display the FFT waveform on the full screen.
Creating Reference Waveforms
Creating Reference Waveforms
Two reference waveforms (REFA and REFB) can be created and saved into
internal memory on the oscilloscope.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
