WaveAce Series
63
WA-GSM-E RevB
Save and Recall
Saving and Recalling Oscilloscope Setups
You can quickly save and recall up to 20 oscilloscope panel settings and 20
waveforms in internal memory. Waveforms and panel settings can also be
saved to a USB memory device.
Saving the Current Settings

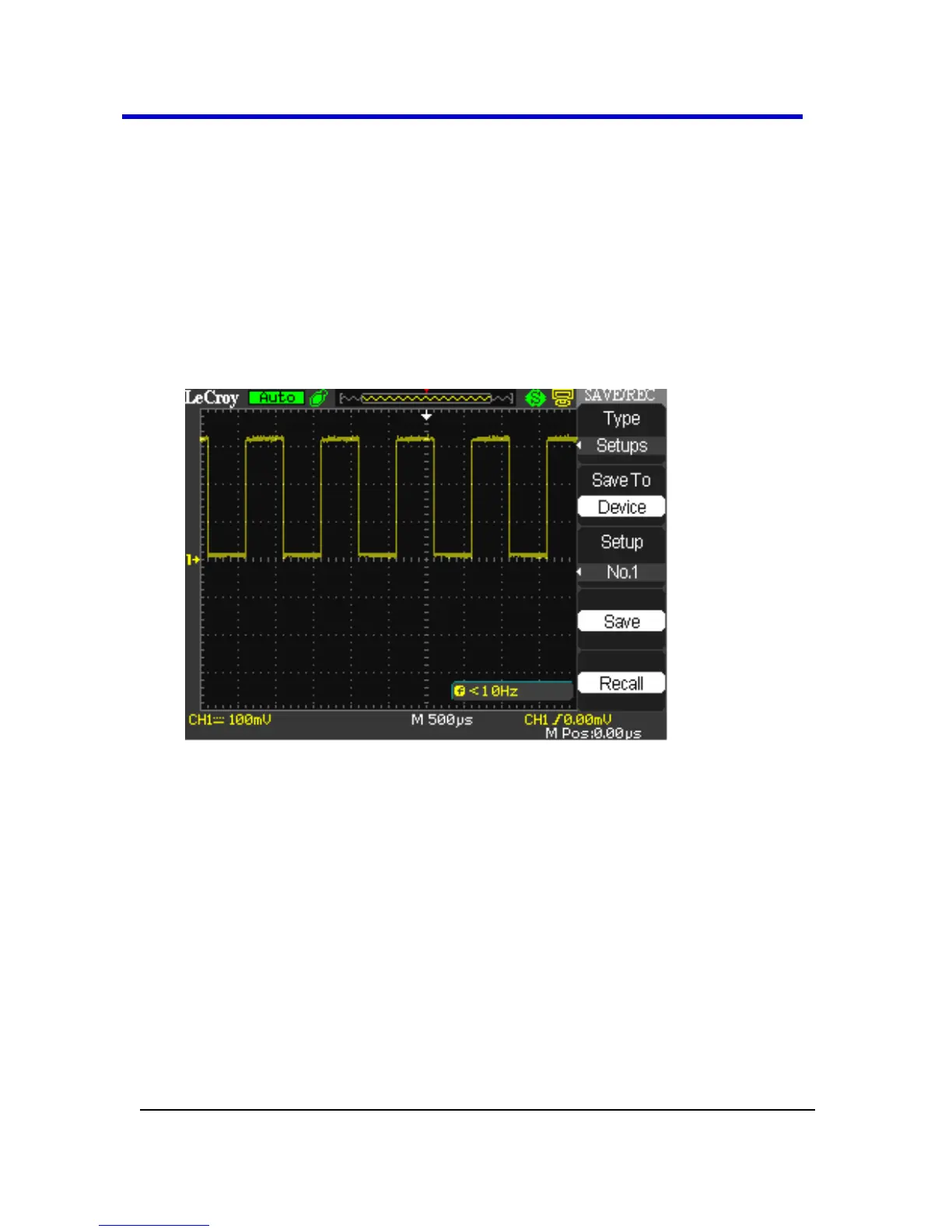

1. Press the Save/Recall front panel button. The SAVE/REC menu is
shown.
2. Press the Type option button and select Setups.
3. Save your setup either to internal memory or on a USB memory
device using the following methods.
Saving Setups to Internal Memory
Press the Save To option button to select Device.
Press the Setup option button or turn the Adjust front panel
knob and assign a number (No. 1 - No. 20) to the setup.
Press the Save option button to save the current setup.
The setup is saved to memory and the oscilloscope briefly
shows a Store Data Success! message on the lower part of
the grid display area.
