3. Pressing the Record option button shows the Record menu where
you can record the input waveform from CH1 and CH2 (also, CH3
and CH4 on four channel versions), with a maximum record length
of 2500 frames.
You can record Pass/Fail test output (especially useful when
capturing abnormal signals over a long period of time) without
having to watch the signal.
Just set the source, the time interval between record frames, and
the maximum number of record frames. For more information, see
Using Record (on page 95).

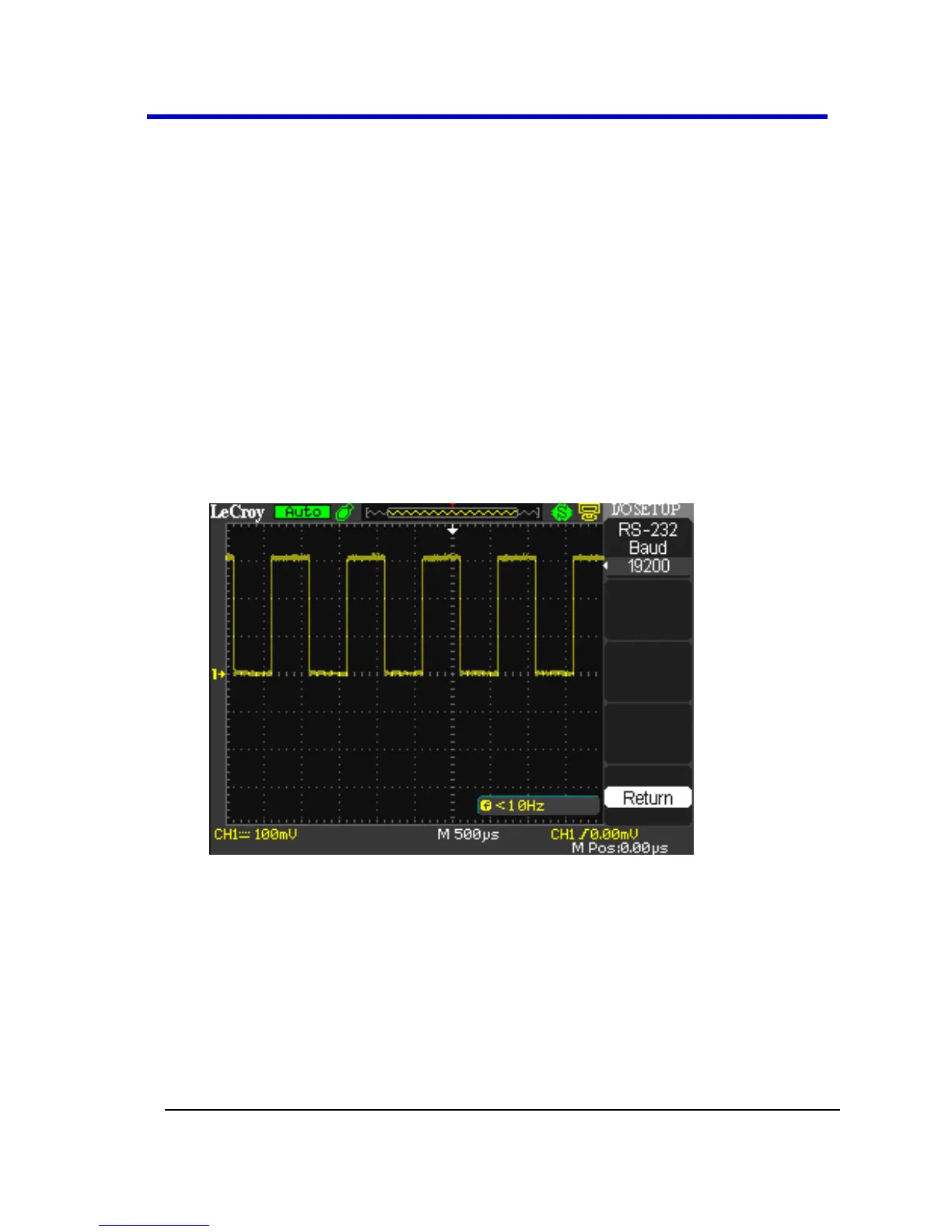

4. Pressing the IO Setting option button shows a small menu with RS-
232 Baud selections. Press this RS-232 Baud option button to
choose from 300, 2400, 4800, 9600, 19200, and 38400 baud rates.
Pressing the Return option button takes you back to the Utility
menu.
5. Press the Next Page option button on Utility Menu - Page 3/4 to
show page 4/4.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
