After downloading, open the .zip file on your computer. The .zip should
contain two .ads files and a Firmware Update Procedure .pdf file.
Move the two .ads files to a USB memory device.
System software updates (the two .ads files) are then loaded through the
USB memory port on the front of the oscilloscope.
1. Insert the USB memory device containing the software update in
the USB port on the front of the oscilloscope.
2. Press the front panel Utility button.
3. Press the Next Page menu option button to navigate to menu page

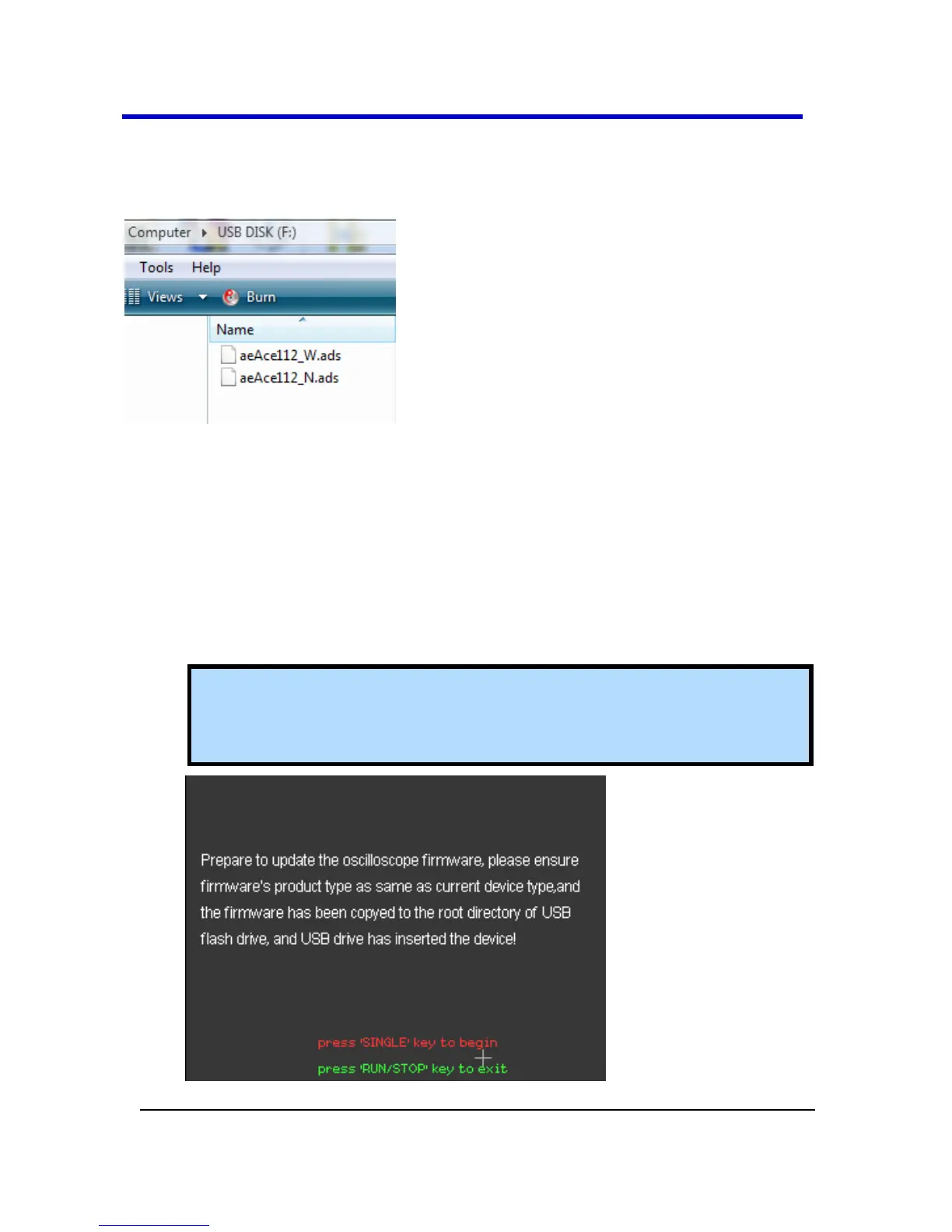

3/3. Select the Update Firmware menu option button. The Update
Firmware screen is shown.
Note: Verify the firmware product type matches your instrument.
Also, verify the firmware update file is stored in the root directory
of the USB memory device.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
