LeCroy WaveAce series User Manual

WaveAce Series
33
WA-GSM-E RevB

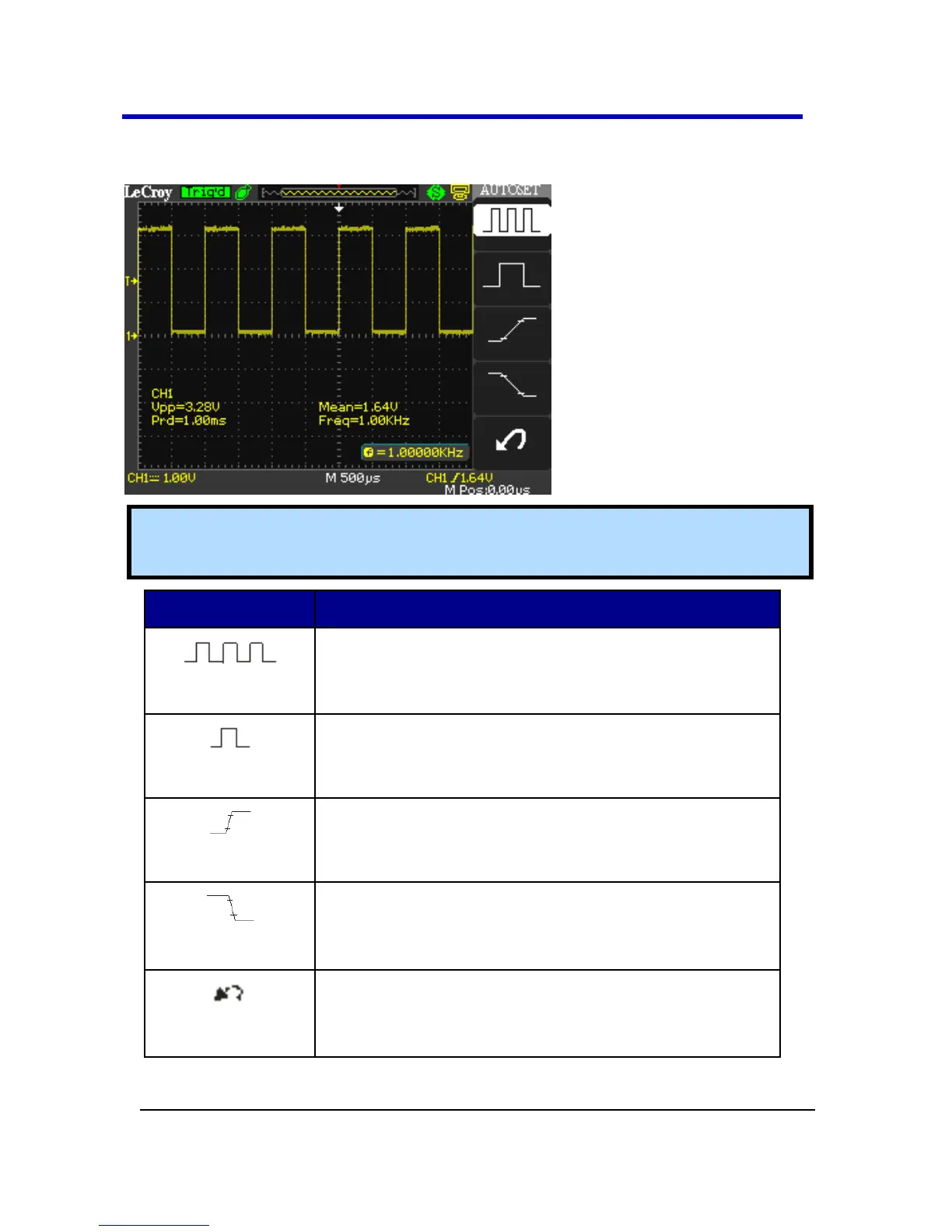

Press the AUTO front panel button, and then press the menu option
button adjacent to the desired waveform as follows:
Note: Use the bottom waveform menu button to Undo an applied Auto
Setup.
Option
Description
（Multi-cycle）
Auto set the screen and display several cycle
signal.
（Single-cycle）
Set the screen and auto display single cycle signal.
（Rising edge）
Auto set and show the rising time.
（Falling edge）
Auto set and show the falling time.
（Undo Setup）
Causes the oscilloscope to recall the previous
setup.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
