LeCroy WaveAce series User Manual

WaveAce Series
47
WA-GSM-E RevB

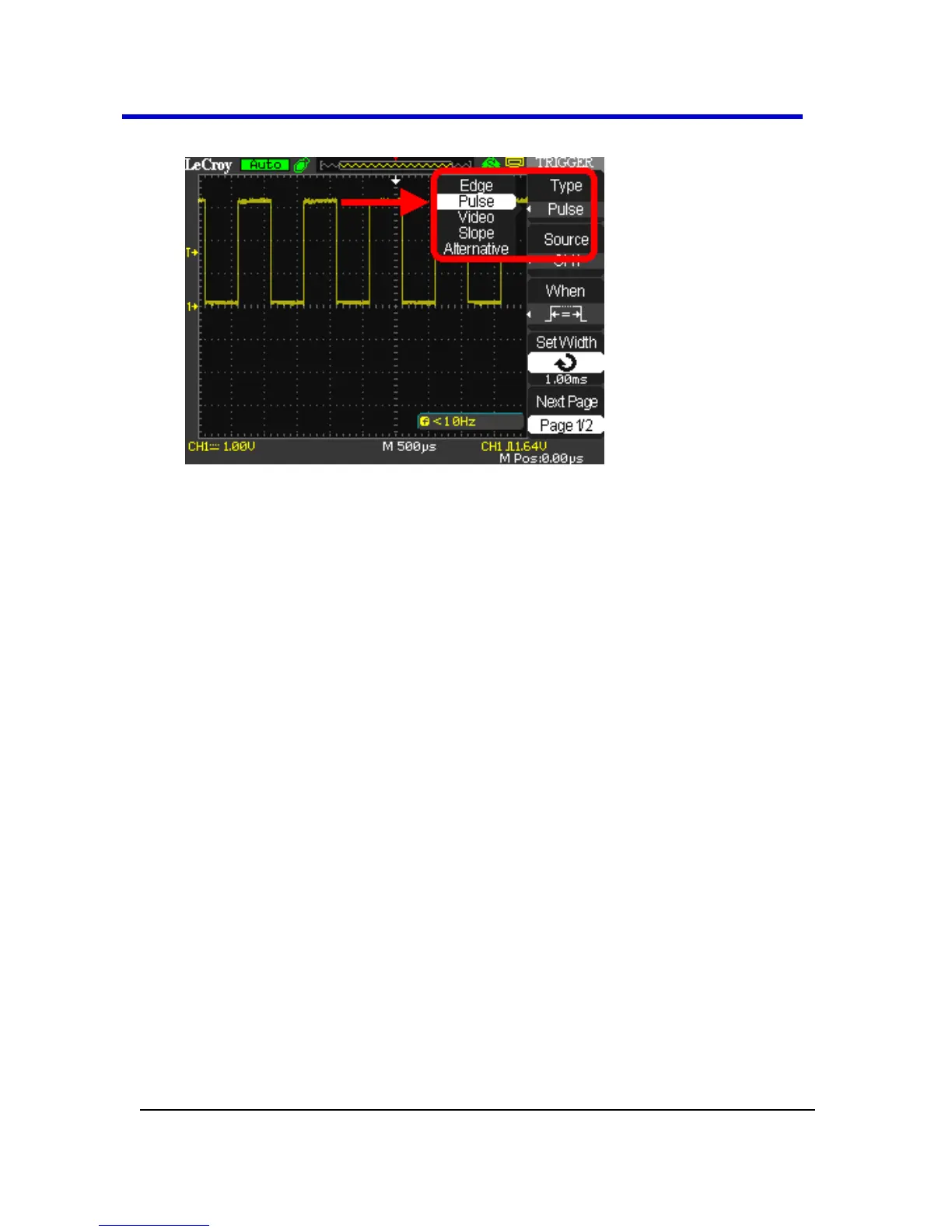

1. Press the Type option button and select Pulse.
2. Press the Source option button to choose a channel input (CHS 1 - 2;
or CHS 1 - 4 on 4 channel models) or external input.
3. Press the When option button to select how to compare the trigger
pulse relative to the value selected in the Set Width option.
4. Press the Set Width option button and then turn the Adjust front
panel knob to set the pulse width.
5. Press the Next Page option button.
6. Press the Mode option button to select Auto, Normal, or Single
mode. Use Auto mode to let the acquisition automatically run in the
absence of a trigger. Use Normal mode when you want to see only
valid triggered waveforms (when you use this mode the oscilloscope
does not display a waveform until after the first trigger). Use Single
mode when you want the oscilloscope to acquire a single waveform.
7. Press the Setup option button to display the Trigger Setup menu.
You can use the Trigger Setup menu to select a coupling mode and
define a Holdoff value. Coupling modes comprise DC, AC, HF Reject,
and LF Reject. Turn the Adjust front panel knob to set the Holdoff
value.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
