ΔV - the vertical space between Cursor A and Cursor B (Voltage
value between the two cursors)
CURSOR PLACEMENT

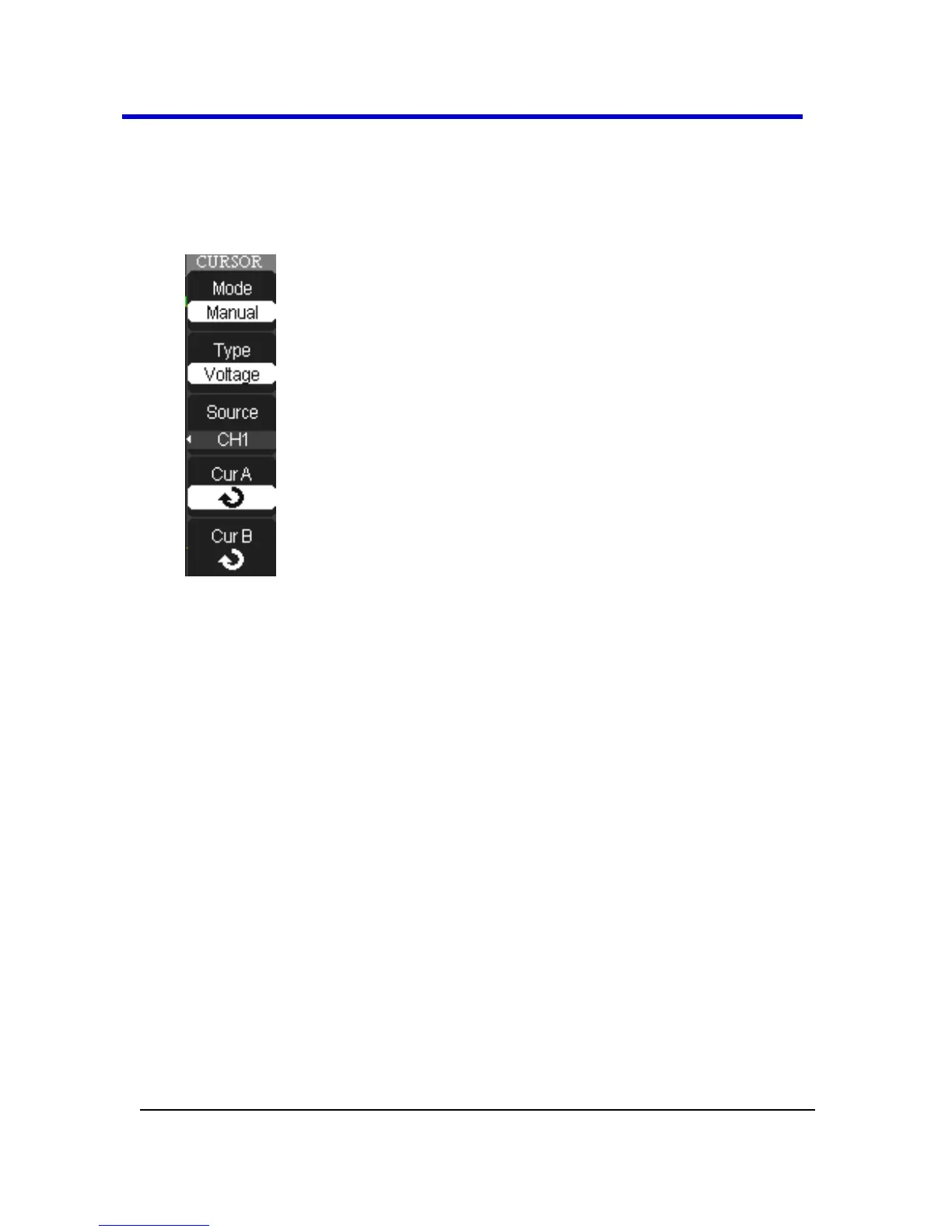

1. Press the CURSORS front panel button. The Cursor menu opens.
2. If you want to set the mode to Manual, press the Mode option
button and select Manual. Press the Type option button and select
Voltage or Time. Press the Source option button and select a source
of CH1, CH2 (also, CH3 and 4 on 4 channel models) MATH, REFA, or
REFB. Press the CurA or CurB option button and turn the Adjust
front panel knob to adjust the cursors.
OR
If you want to set the mode to Track, press the Mode option button
and select Track. Press the Cursor A or Cursor B option button and
select a source. Press the CurA or CurB option button and turn the
Adjust front panel knob to adjust the cursors. If Track is selected,
both cursors move in unison and both appear brighter in the grid.
OR
If you want to set the mode to Auto, press the Mode option button
and select Auto. When you select measurement parameters using
the MEASURE front panel button, the cursors are automatically
displayed.
