WaveAce Series
69
WA-GSM-E RevB

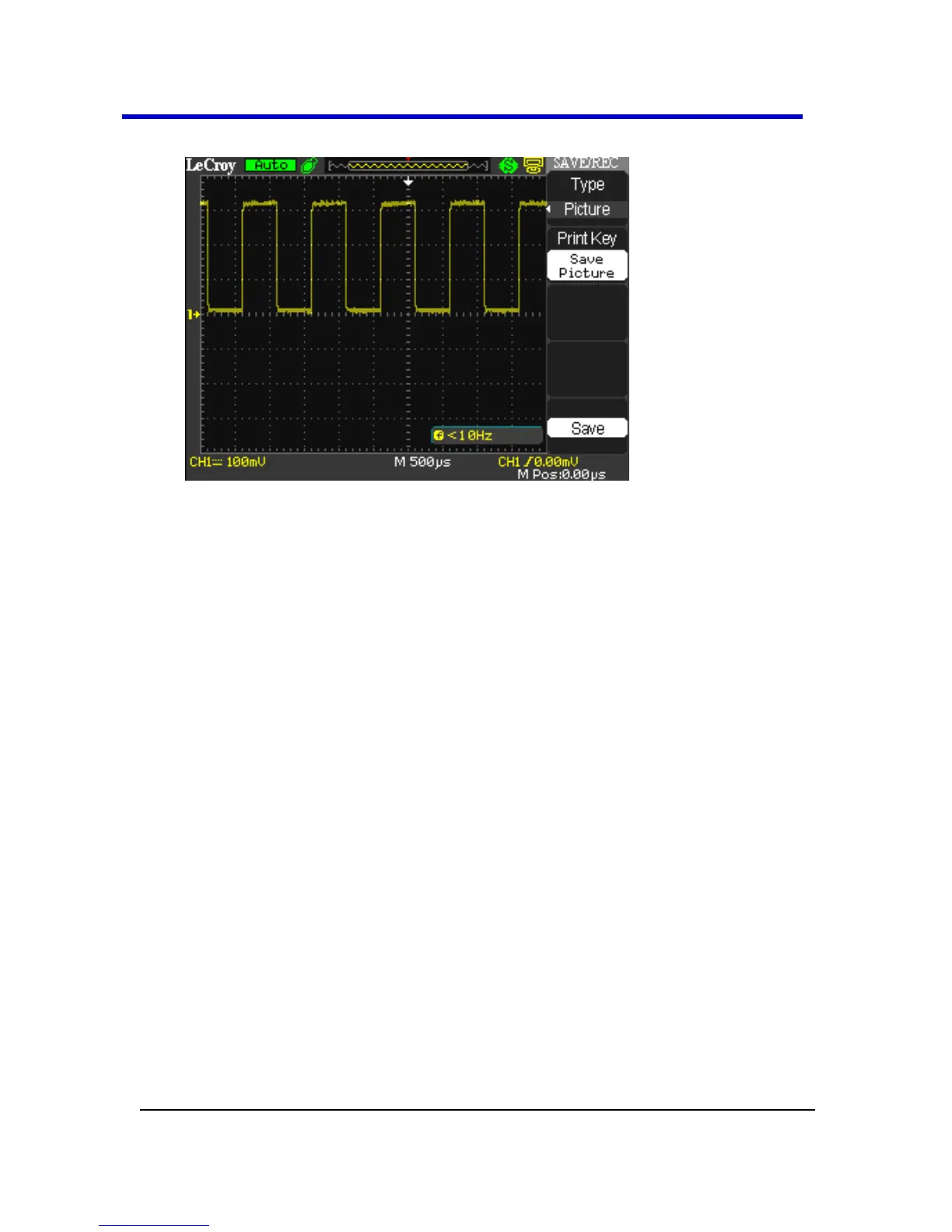

2. Use the Type option button to select Picture.
3. Print or Save your .BMP pictures to a USB memory device using the
following methods.
Printing Directly to a Printer
 Press the Print Key option button and select Print Picture. Be
sure a printer is connected to your WaveAce oscilloscope.
 Press the Picture option button or turn the Adjust knob to
select an incremental number for the .BMP filename for
saving.
Saving .BMP Pictures to a USB Memory Device
 Press the Print Key option button and select Save Picture. Be
sure a USB memory device is connected before saving the
image.
 Press the Save option button to save the displayed
waveform.
 The SAVE ALL screen is shown. Refer to Using the SAVE ALL
Screen (on page 75) to continue saving to your USB memory
device.
PLEASE NOTE THE FOLLOWING:
 Once you have set up your save and/or print options, press the
Print front panel button to save or print the displayed waveform.

LeCroy WaveAce series Specifications

General

Channels	2 or 4
Vertical Resolution	8-bit
Input Coupling	AC, DC, GND
Power Supply	100-240 VAC, 50/60 Hz
Sample Rate	2 GS/s
Display	800 x 480
Input Impedance	1 MΩ
Timebase Range	5 ns/div to 50 s/div
Trigger Types	Edge, Pulse Width, Video, Slope
Connectivity	USB host, USB device
