4. OVERVIEW OF THE INSTRUMENT
DIC setting
1 DIC fine adjustment
2 Selecting the objective prisms
Motorized DIC objective prism disk
1
Manual DIC objective prism disk
1
2

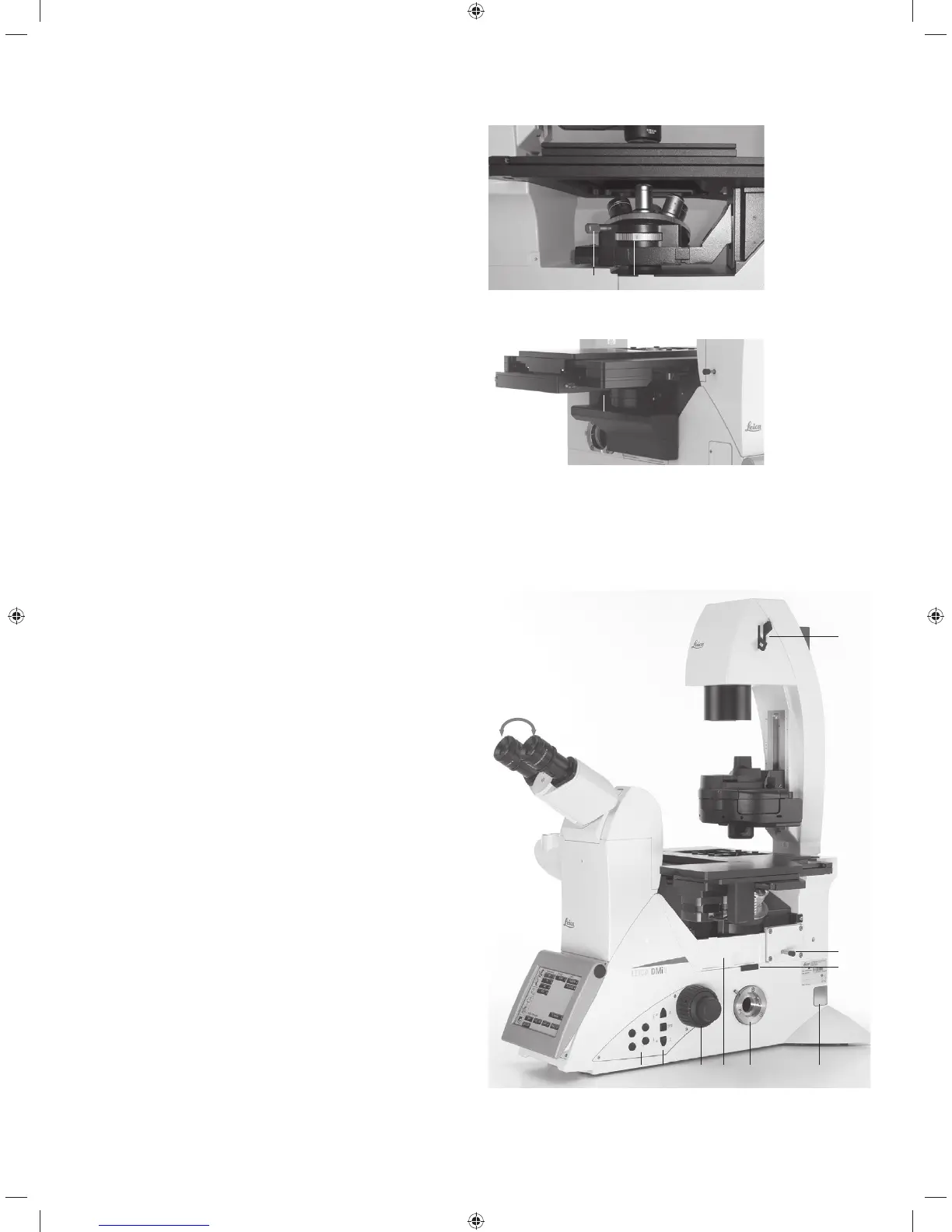

Right side of the Leica DMi8 with a tiltable Transmitted
Light arm
1 Switching the Transmitted Light filter on and off
The front position is assigned at the factory using a
shutter (dark stop), which is interchangeable with a fil-
ter.
2 Tube setting
3 Toggling the infinity port
4 Analyzer slot
5 Identification label
6 Right side port
7 Cover for fluorescent turret disk
8 Focusing
9 Focus thresholds
10 Variable function keys
1
3
2
4
678910
5
32
