4. OVERVIEW OF THE INSTRUMENT

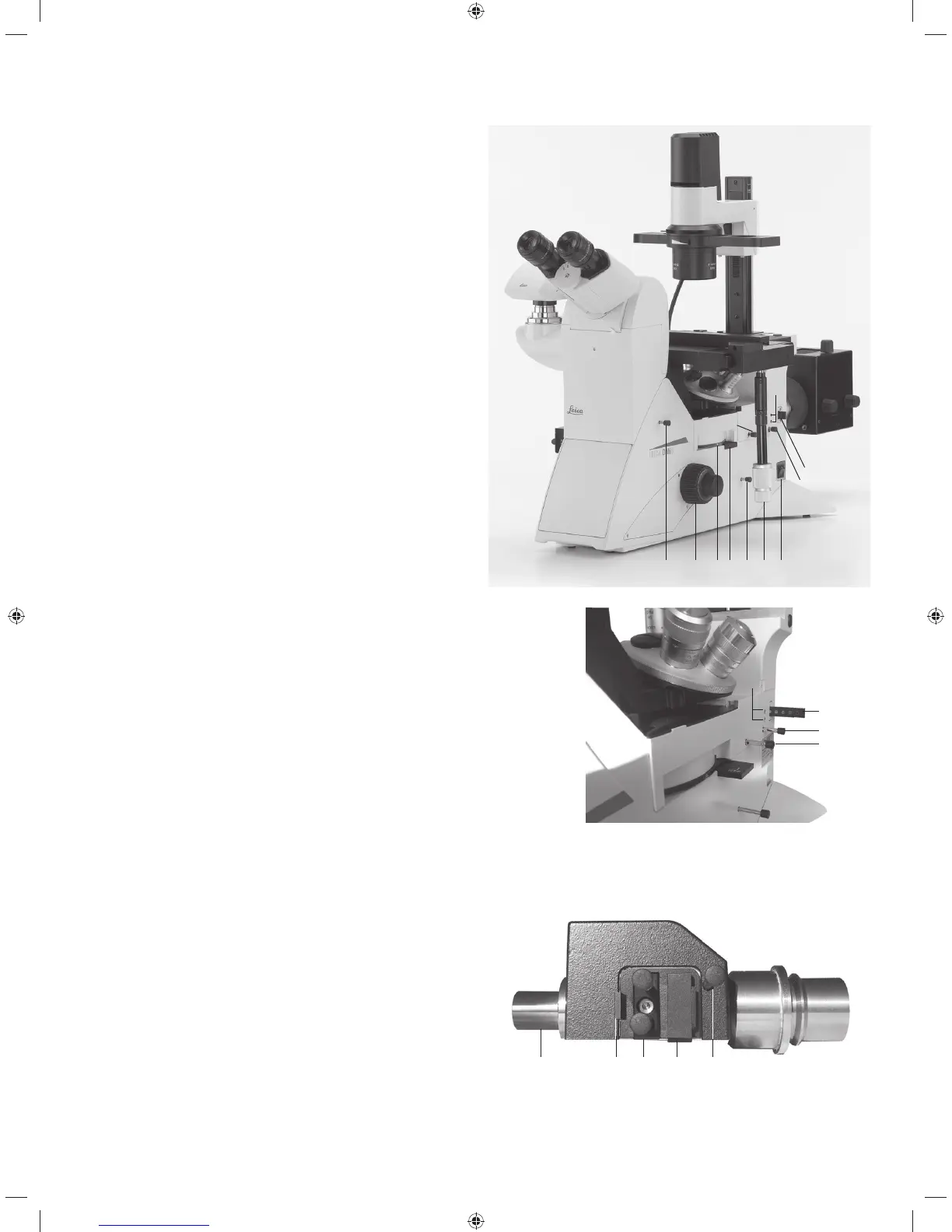

Right side of Leica DMi8 with manual integrated fluores-
cence axis
1 Manual Magnification Changer
2 Focusing
3 Manual filter change
4 Receptacle for analyzer
5 Toggling the left side port
6 Stage movement
7 On/off switch (only on manual stands)
8 Illuminated field diaphragm adjustment
9 Manual setting for FIM
10 Centering illuminated field diaphragm
11 Manual shutter
321 4 5 7
8
9
10
11
6
Manual external fluorescence axis
(Alternative connection on the left or rear microscope
side)
1 Connection for light guide
2 FIM
3 Diaphragm module
4 Receptacle for EFW or structured illumination
5 Manual Shutter
1
2
3 5
4
10
9
8
11
Section of manual integrated fluorescence axis
33
