LELY COSMIX P - 5.3.8 Install the M-box

5.2308.8512.0 B
INSTALLATION 5-17

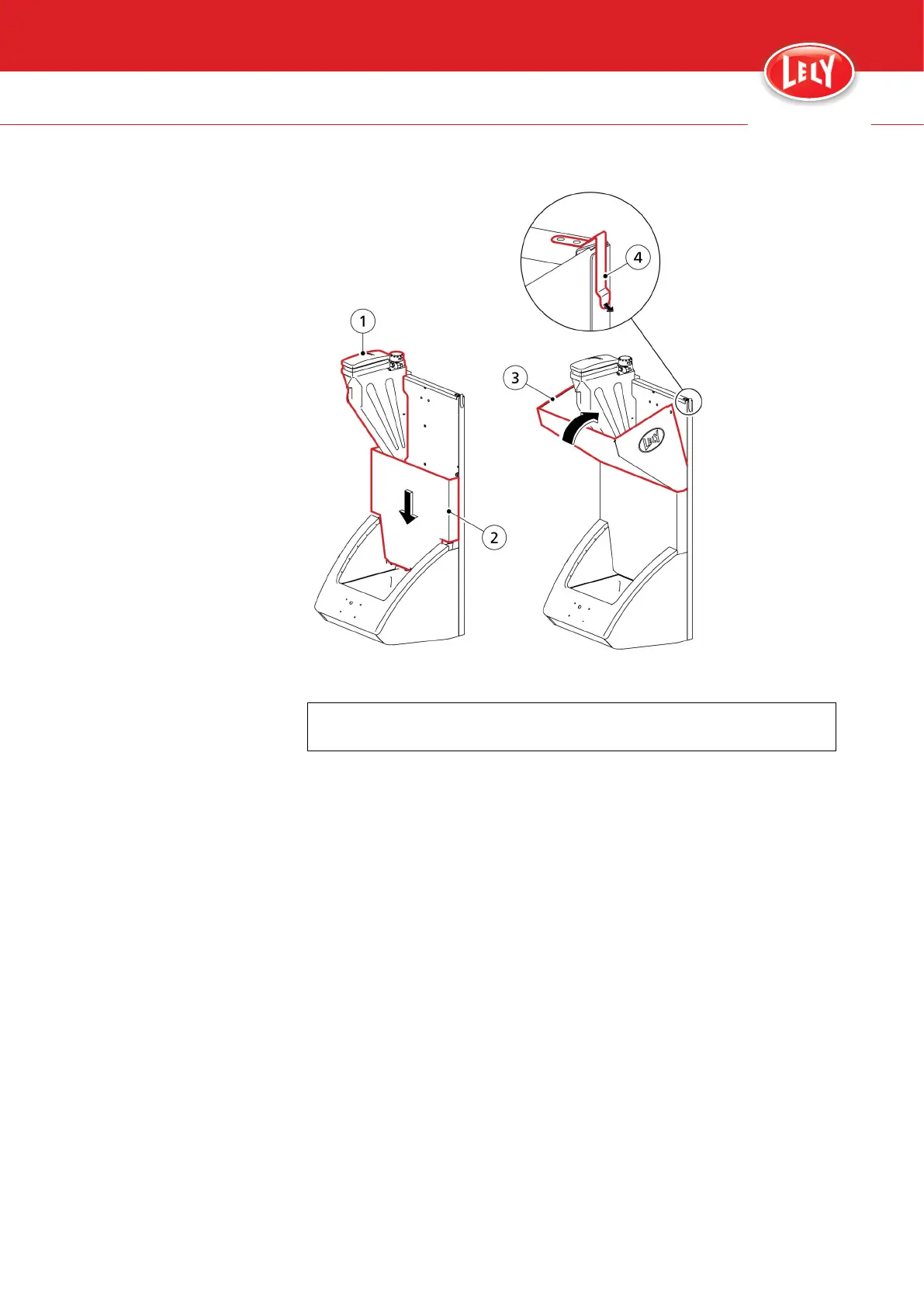

Figure 26. Install the dosing unit, feed hopper and feed funnel
KEY:
1. Dosing unit - 2. Feed funnel cover - 3. Feed hopper cover - 4. Clamping spring
5.3.8 Install the M-box
Parts
• 1× Left part M-box.
• 1× Right part M-box.
• 1x Mounting bracket for pneumatic cylinder M-box side.
• 1x Mounting bracket for pneumatic cylinder control box side.
• 4x Clamp.
• 2x M-box sensor.
• 2x Pipe clamp.
• 2x Cover plate.
• Air pressure ON / OFF valve.
• Pneumatic cylinder.
• Bolts, washers, bushings and (cap) nuts.
Installation
