5.2308.8512.0 B
4-12 DESCRIPTION AND OPERATION

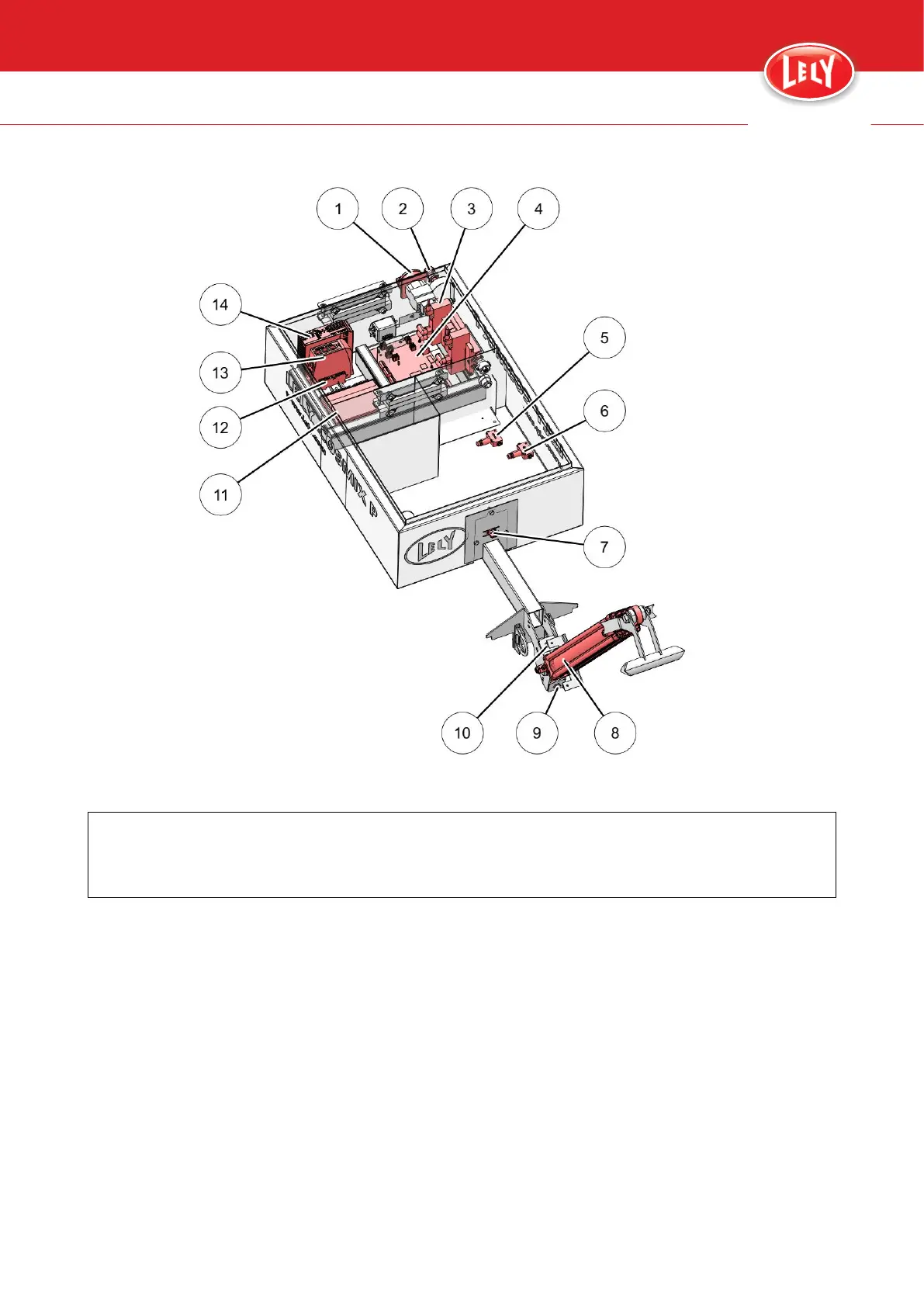

Figure 12. Control box (Qwes ISO leg)
KEY:
1. Main power switch - 2. E-Link connection - 3. Air valve block - 4. ADS3830 PCB - 5. Pressure reducer 2 bar (29 psi) (close M-
box) - 6. Pressure reducer 4 bar (58 psi) (open M-box) - 7. Air pressure ON / OFF valve - 8. Pneumatic cylinder - 9. M-box down
sensor - 10. M-box up sensor - 11. Velos box - 12. Protective earth (PE) - 13. Network switch (optional) - 14. 24 V Power supply
4.2.4 Cow Identification Systems
4.2.4.1 Qwes ISO neck System
The Qwes ISO neck system has two components:
• The cow tag (Qwes ISO ID/ACT neck tag).
• Qwes ISO neck reader.
The reader is a sealed plastic box with an internal antenna. The box is
installed on a mounting plate that is installed on the front plate under
the feed bin. The data cable of the reader is connected to the FSK pcb
(11) (see figure 8 on page 4-7) on the ADS3830 PCB.
