- Mount the V-belts.
- Tighten the V-belts. Adjust belt tension in such a way that,
if a 70 N (7 kg) force is exerted on the middle, the V-belt is
pushed in 10 mm (fig. C-1).
- Close the V belt housing.

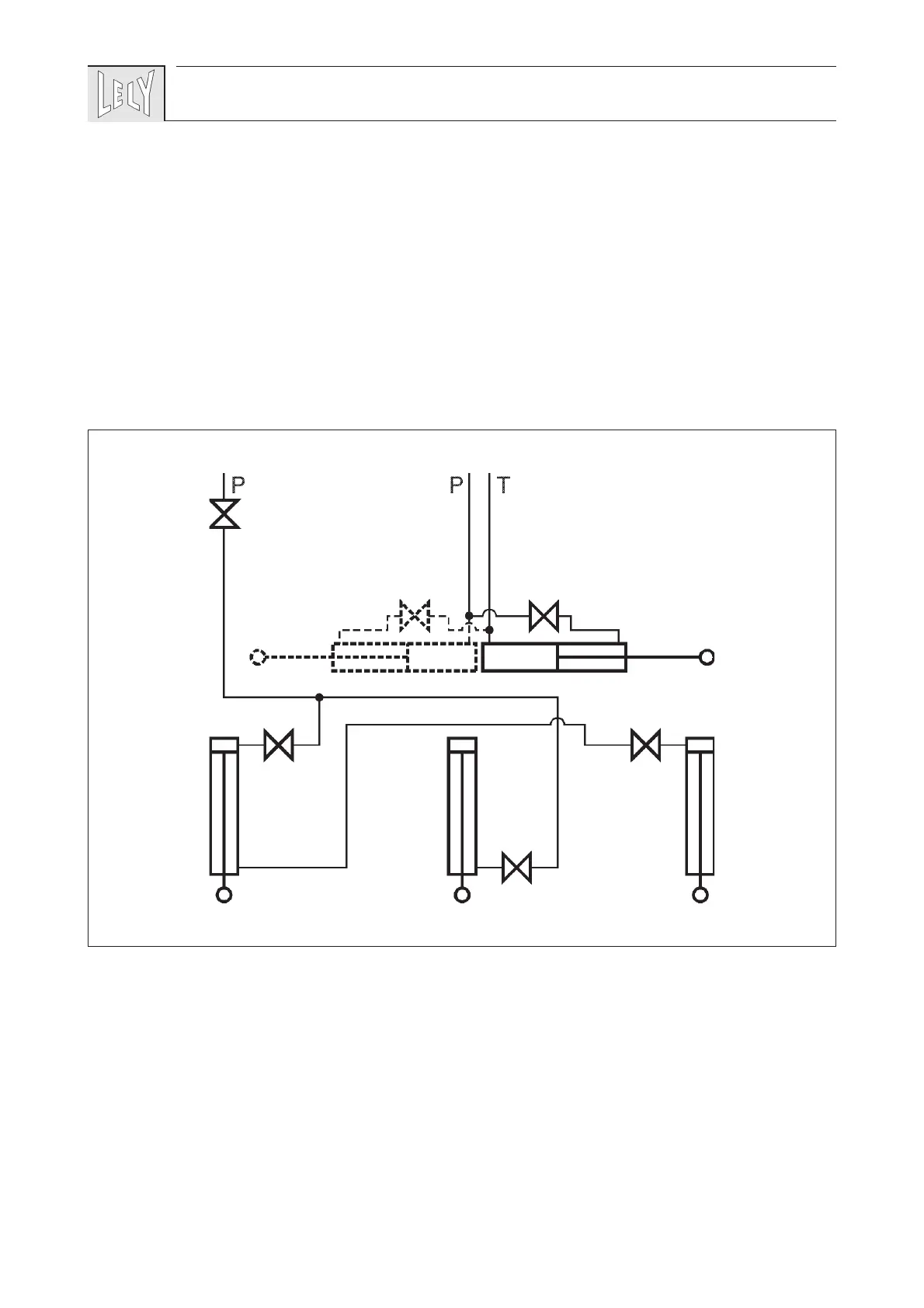

D HYDRAULIC SCHEME
Legend:
1 Ball valve
2 Double acting ram (wheel support)
3 Single acting ram (mower conditioner)
4 Single acting ram (wheel support)
5 Double acting ram (draw bar)
6 Double acting ram (draw bar, only SPLENDIMO
®
320 PC)
54
1
23
4
5
1
1
1
11
6
Supplement D
