Replacing a drive carrier module 123
4. Cam the drive carrier home. The camming foot on the carrier will engage into a slot in the enclosure. Continue
to push firmly until the handle fully engages. You should hear a click as the latch handle engages and holds the
handle closed.

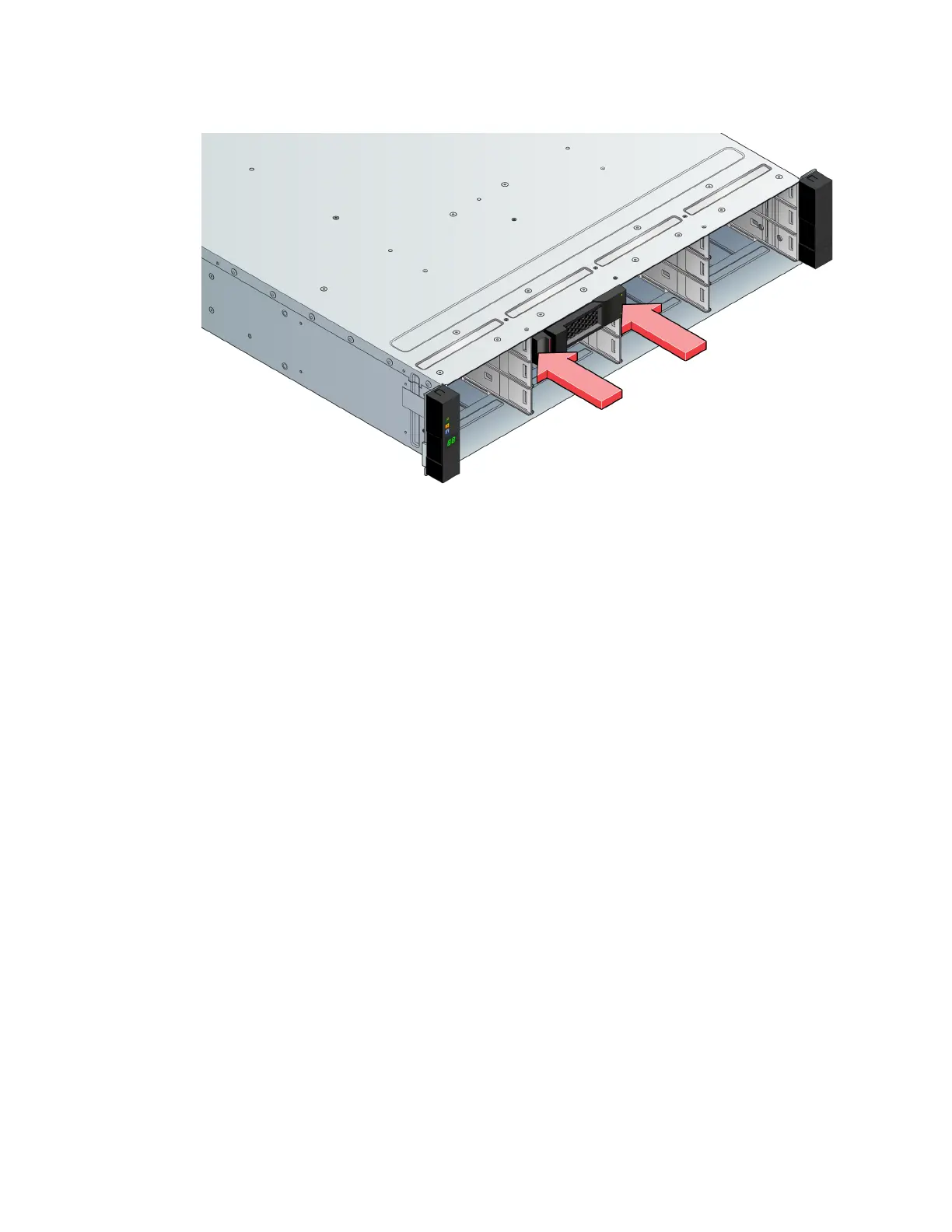

Figure 84 Installing a LFF drive carrier module (2 of 2)
5. Using the management interfaces (the SMC or CLI), verify whether the health of the new disk is OK. Verify
that the Green Drive LED is on/blinking per Figure 75 (page 98). Verify that Ops panel states show no amber
module faults.
Removing a SFF drive carrier module
The removal/replacement procedure for SFF drive carrier modules is basically the same as for LFF models, except
that the SFF carriers are mounted vertically.
