124 Module removal and replacement
1. Press the latch in the carrier handle downward to release the carrier handle so that it can revolve outward as
shown below.

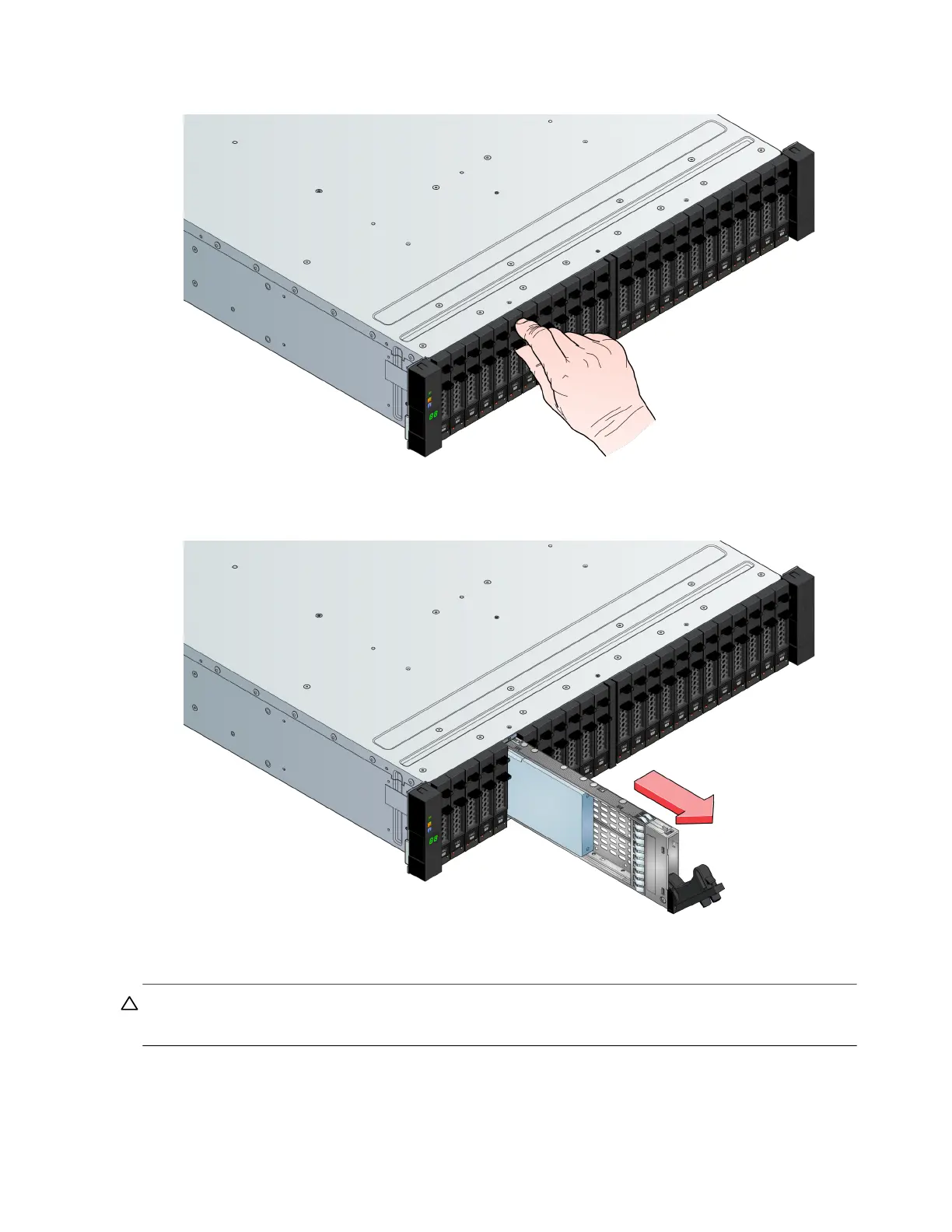

Figure 85 Removing a SFF disk drive module (1 of 2)
2. Gently move the drive carrier module outward from the drive slot.
Figure 86 Removing a SFF disk drive module (2 of 2)
3. Remove the module fully from the drive slot.
CAUTION: To ensure optimal cooling throughout the 2U enclosure, dummy drive carrier modules must be
fitted to all unused drive slots. See also Figure 47 (page 55).
