28 System overview
2U rear panel components
Controller modules
The top slot for holding IOMs is A and the bottom slot is B. The face plate details of the IOMs show the modules
aligned for use in A. This orientation also applies to canister insertion into IOM slots located on the 5U84 enclosure
rear panel.
Figure 17 and Figure 18 show CNC host interface ports that can be configured with 8/16Gb/s FC SFPs, 10GbE
iSCSI SFPs, or Gb/s RJ-45 SFPs. See “Install an SFP transceiver” (page 156) for installing qualified SFP options in
CNC ports.

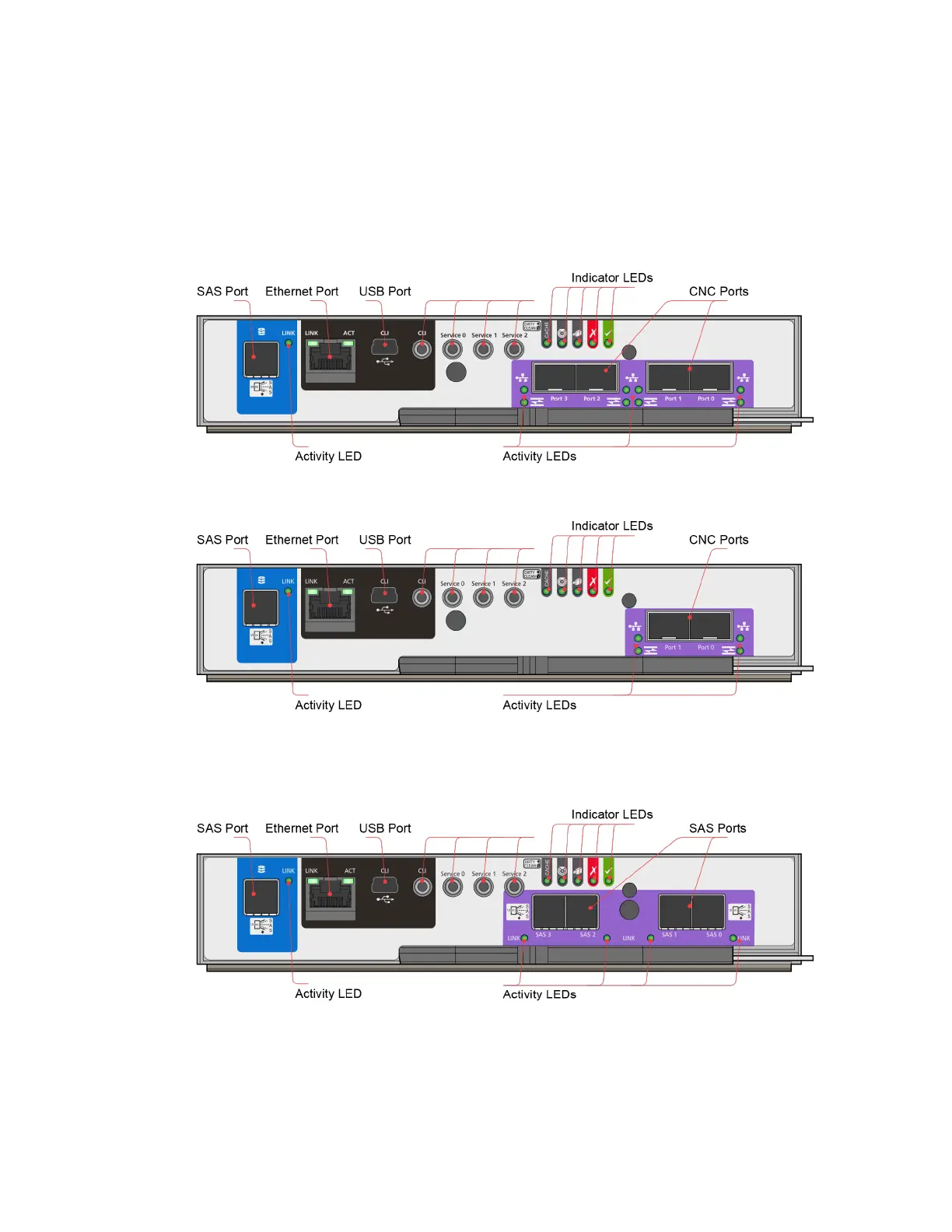

Figure 17 4-port FC/iSCSI controller module detail (DS6200/DS4200)
Figure 18 2-port FC/iSCSI controller module detail (DS2200 only)
Figure 19 and Figure 20 show SAS host interface ports that ship configured with 12Gb/s HD mini-SAS
(SFF-8644) external connectors.
Figure 19 4-port HD mini-SAS controller module detail (DS6200/DS4200)
Serial Ports
(Service Only)
Serial Ports
(Service Only)
Serial Ports
(Service Only)
