126 Module removal and replacement
2. Slide the carrier fully into the enclosure until it is stopped by the camming lever on the bottom of the carrier.

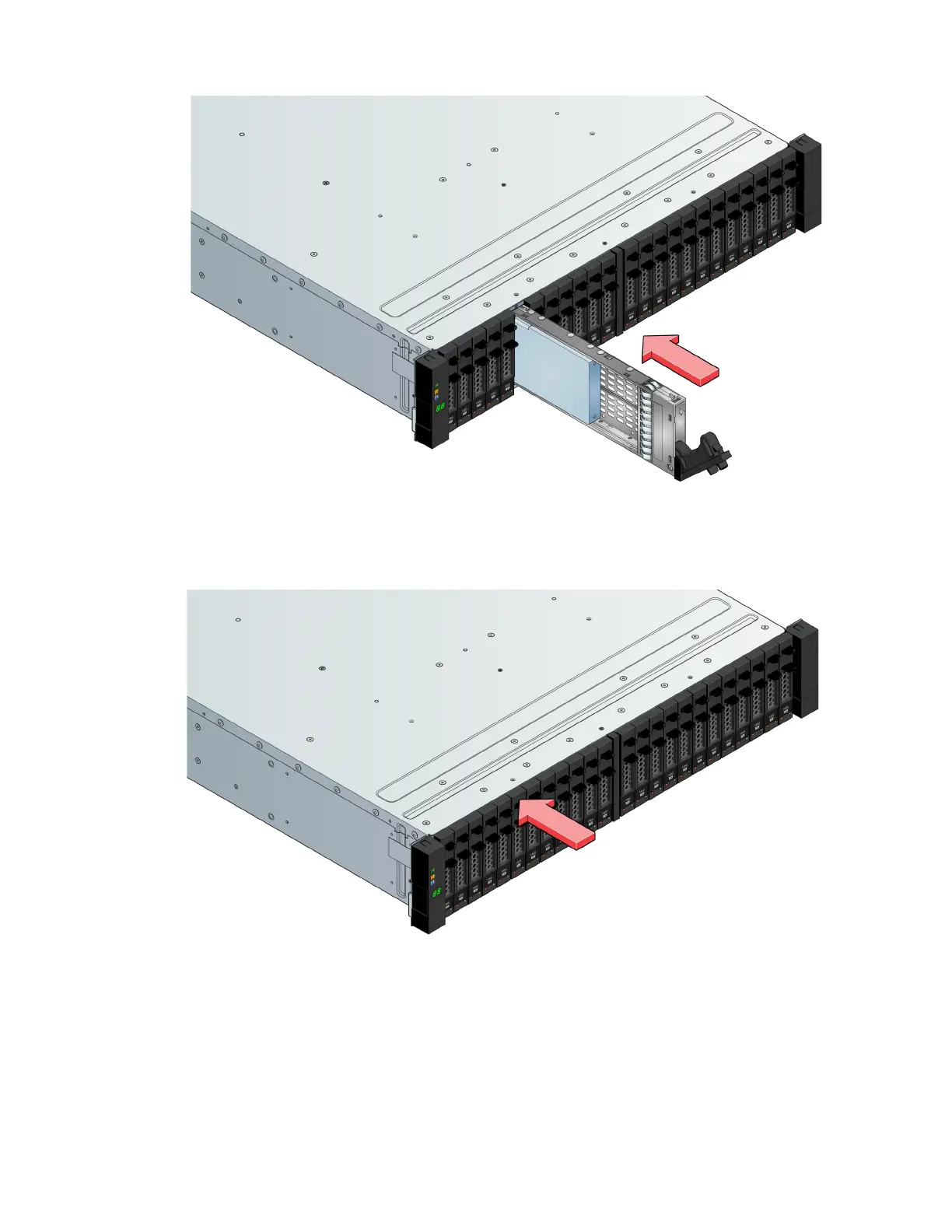

Figure 88 Installing a SFF drive carrier module (1 of 2)
3. Cam the carrier home. The camming lever on the carrier will engage into the a slot in the enclosure. Continue to
push firmly until the handle fully engages. You should hear a click as the latch handle engages and holds the
handle closed.
Figure 89 Installing a SFF drive carrier module (2 of 2)
4. Using the management interfaces (the SMC or CLI), verify whether the health of the new disk is OK. Verify
that the Green Drive LED is on/blinking per Figure 75 (page 98). Verify that Ops panel states show no amber
module faults.
