Connecting two storage systems to replicate volumes 91

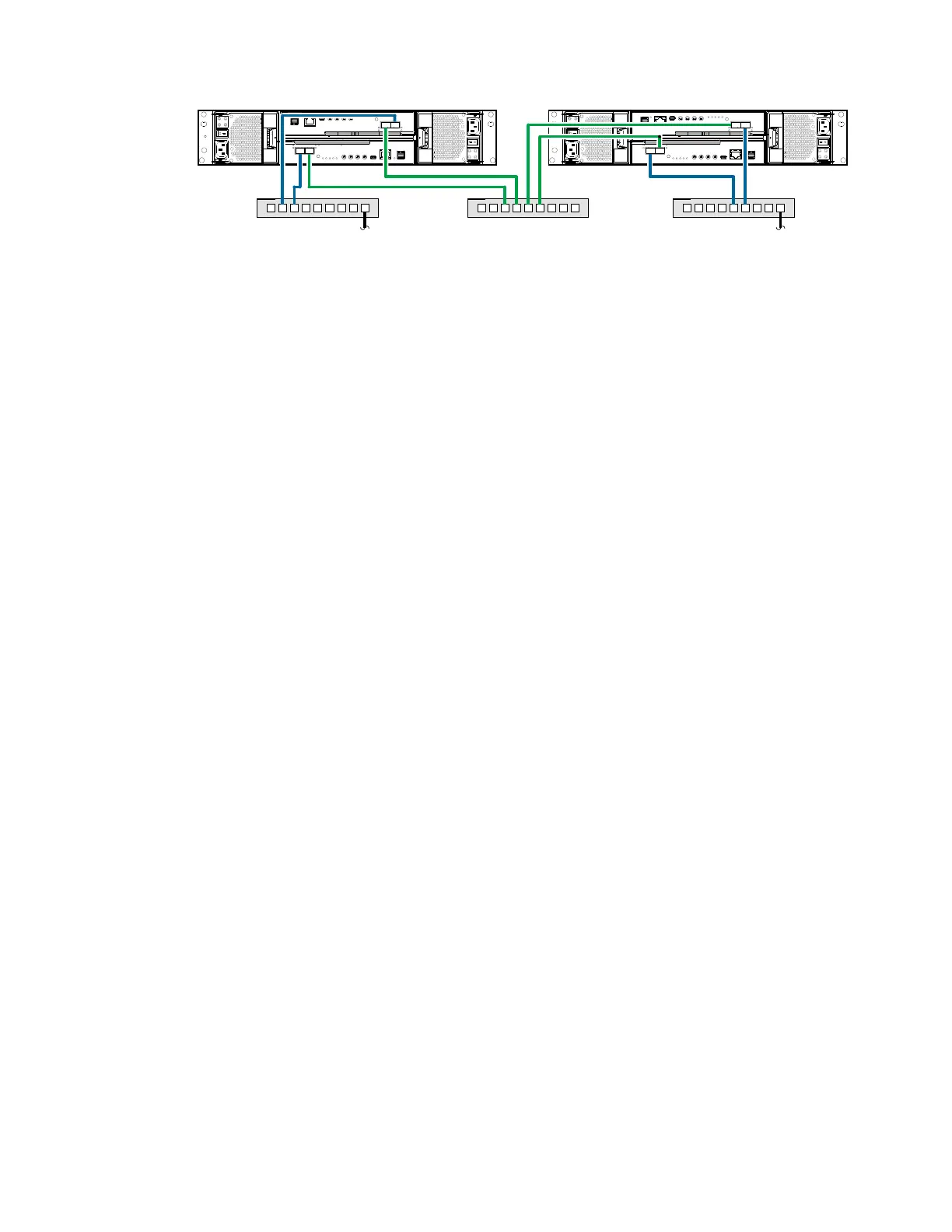

Figure 74 Connecting two DS2200 storage systems for replication: multiple servers/switches/two locations
Figure 73 (page 90) and Figure 74 represent two branch offices cabled to enable disaster recovery and backup. In
case of failure at either the local site or the remote site, you can fail over the application to the available site.
DS2200 controller enclosure DS2200 controller enclosure
Ethernet
WAN
I/O switch I/O switch
To host servers
(site A)
To host servers
(site B)
