5U enclosure core product 33
5U enclosure front panel

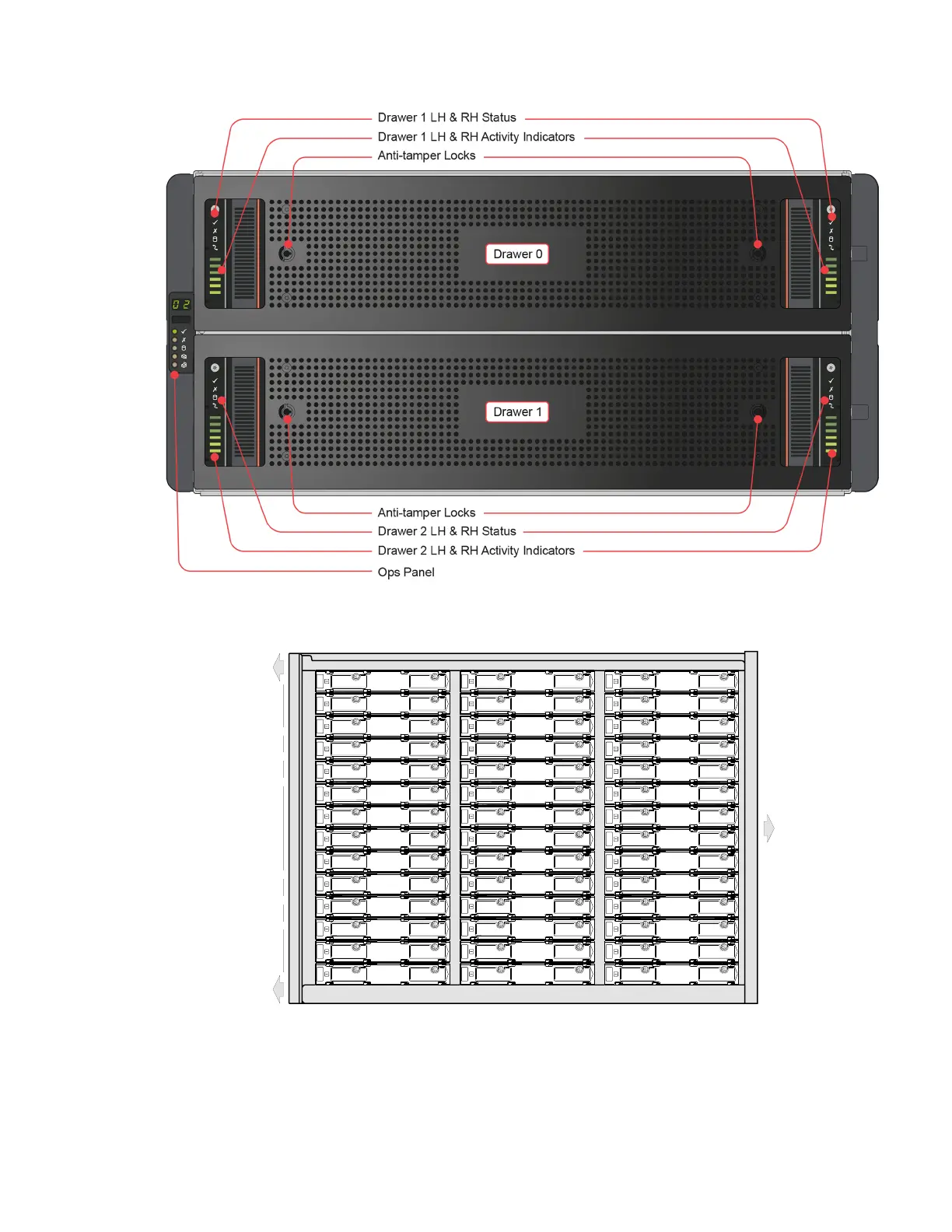

Figure 25 5U84 enclosure system – front panel components
Figure 26 5U84 enclosure system – plan view of drawer accessed from front panel
Figure 26 shows a plan view of an enclosure drawer accessed from the enclosure front panel. The view is scaled
and rotated - 90º about the vertical axis to better fit the page, and the conceptual graphics are simplified for clarity.
0/42
1/43
2/44
3/45
4/46
5/47
6/48
7/49
8/50
9/51
10/52
11/53
12/54
13/55
14/56
15/57
16/58
17/59
18/60
19/61
20/62
21/63
22/64
23/65
24/66
25/67
26/68
27/69
28/70
29/71
30/72
31/73
32/74
33/75
34/76
35/77
36/78
37/79
38/80
39/81
40/82
41/83
Drawer front panel
Into slot
Forward
Forward
Plan view of a drawer – showing installed DDICs and numeric indexing
