Installing the 5U enclosure 65
3. Locate the rail location pins inside the front of the rack, and extend the length of the rail assembly to enable the
rear location pins to locate. Ensure the pins are fully located in the square or round holes in the rack posts. See
also Figure 54.

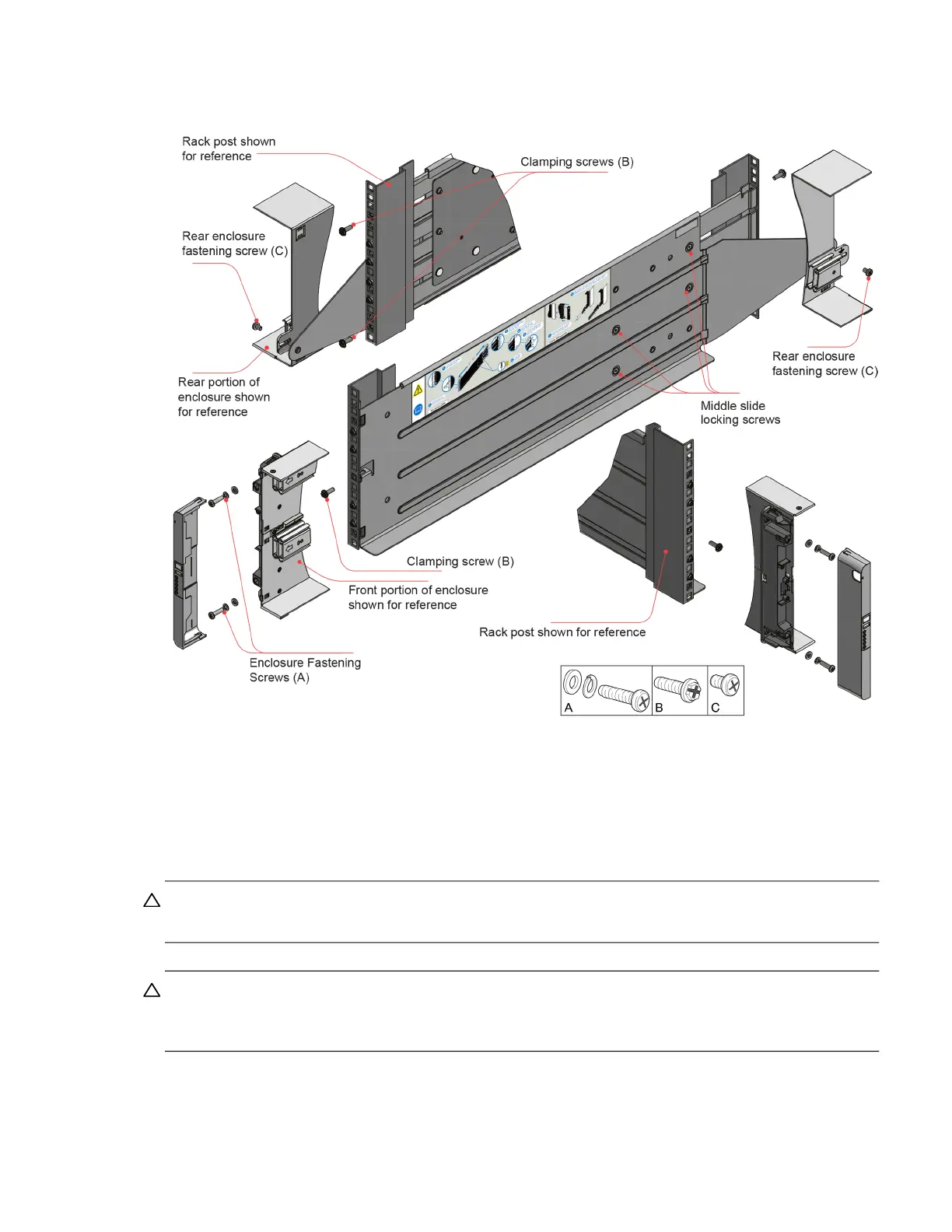

Figure 54 Securing the brackets to the rail (left hand rail shown for 5U)
4. Fully tighten all clamping screws and middle slide locking screws.
5. Ensure the rear spacer clips (x4) are fitted to the edge of the rack post.
6. Slide the enclosure fully home on its rails.
7. Fasten the front of the enclosure using the enclosure fastening screws (x4) as shown in Figure 54.
8. Fix the rear of the enclosure to the sliding bracket with the rear enclosure fastening screws.
CAUTION: Use only power cords supplied, or power cords that comply with the specifications in Table 37
(page 151).
CAUTION: Once the enclosure is installed in the rack, dispose of the lifting straps. Due to the difficulty in
attaching the straps once the enclosure is installed into the rack, the straps are not suitable for removing the
enclosure from the rack.
