Lenovo ThinkSystem DS Series - 5 U84 Enclosure System - Isometric Front and Rear Orientations

24 System overview
The 2U24 controller enclosure above is equipped with dual-controllers (4-port SAS model shown).

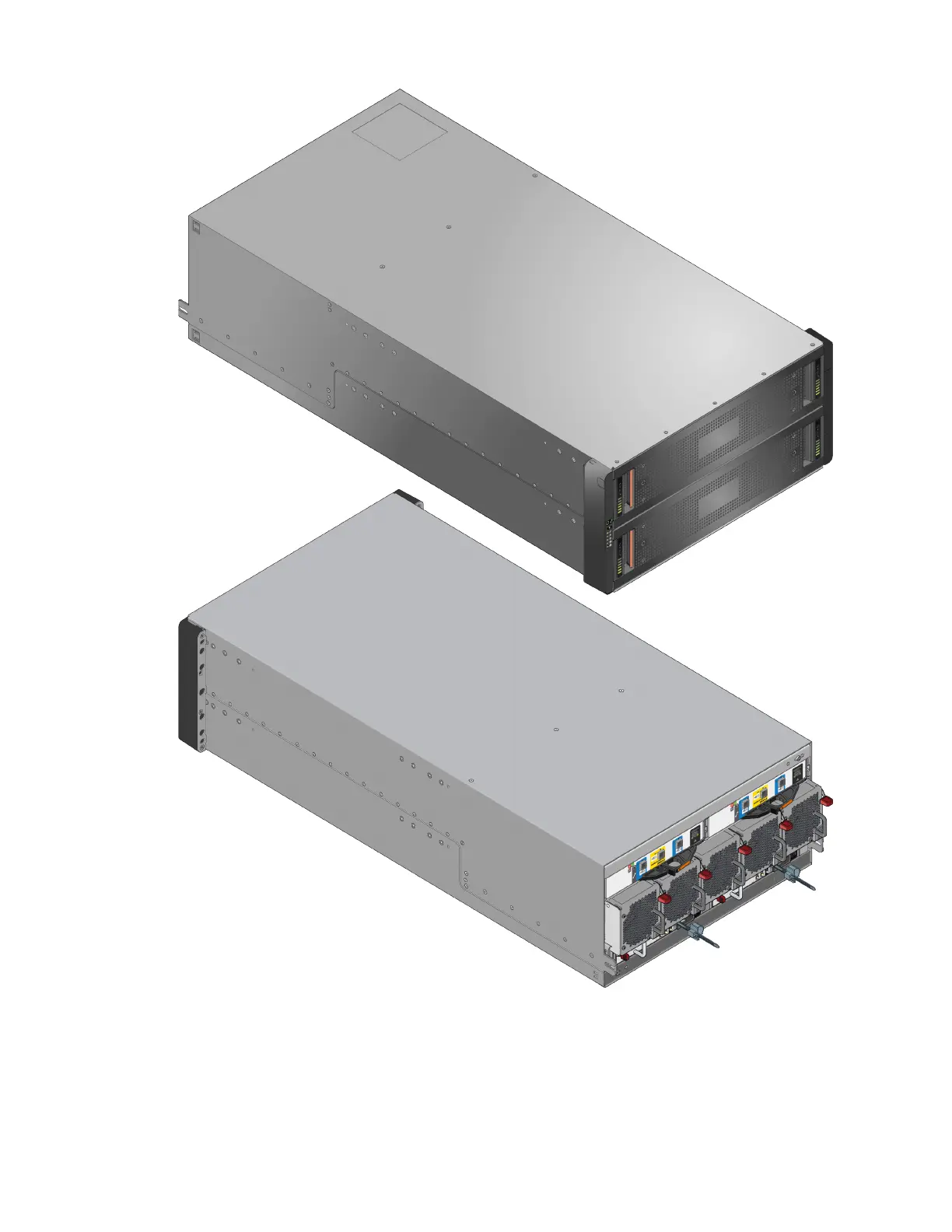

Figure 9 5U84 enclosure system – isometric front and rear orientations
Isometric front view orientation
Isometric rear view orientation
(EBOD is equipped with dual-IOMS)
