Electrical installation − EMS version
Devices in a power range of 0.75 ... 4 kW (3/PE AC 400 V)
Terminal assignment of the power connections
7

123
EDS84DPS424 EN 5.0

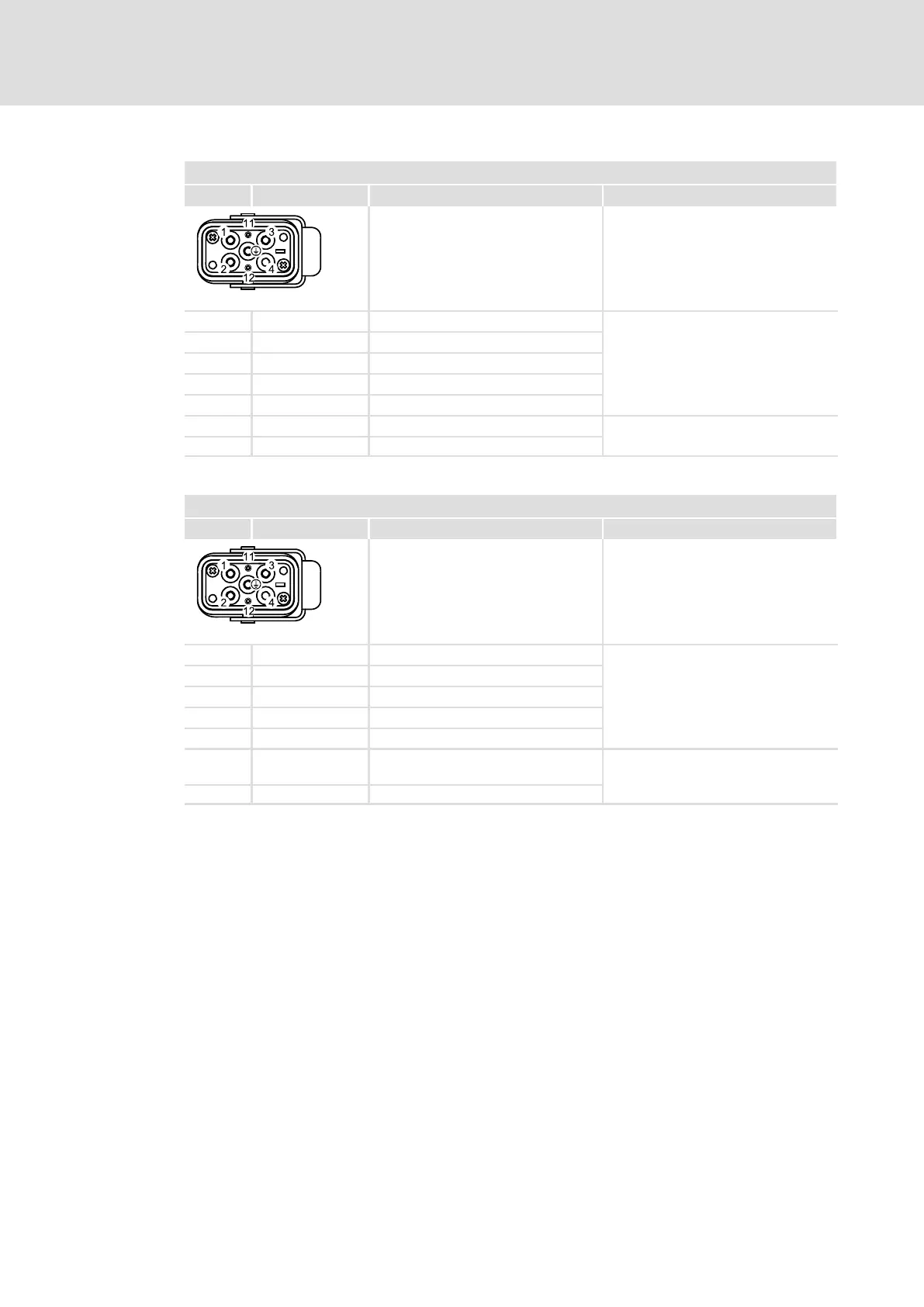

X11 − port for mains loop−through technique (optional)
Pin Connection Description Data
DESINA type Q4/2, sockets Version: 8400 protec EMS
Type designation:
 E84DEM... (half wave)
 E84DLM... (half wave coded)
 E84DPM... (power wave)
 E84DDM... (DECA bus)
84DWTX0110
1 L1 Mains phase L1
Max. 6 mm
2
2 L2 Mains phase L2
3 L3 Mains phase L3
4 n. c. Not assigned
 PE PE conductor
11 n. c. Not assigned
Max. 2.5 mm
2
12 n. c. Not assigned
X11 − port for loop−through technique DC supply (optional)
Pin Connection Description Data
DESINA type Q4/2, sockets Version: 8400 protec EMS
Type designation:
 E84DFM... (inductive)
84DWTX0110
1 n. c. Not assigned
Max. 6 mm
2
2 +UG DC−bus voltage +
3 −UG DC−bus voltage −
4 n. c. Not assigned
 PE PE conductor
11 + External supply voltage for motor
holding brake 24 V DC
Max. 2.5 mm
2
12 − External reference potential 24 V DC
