Lenze 8400 protec - Page 34

Product description
Concepts for the mains connection
Concepts for the connection of the power bus
3

34
EDS84DPS424 EN 5.0

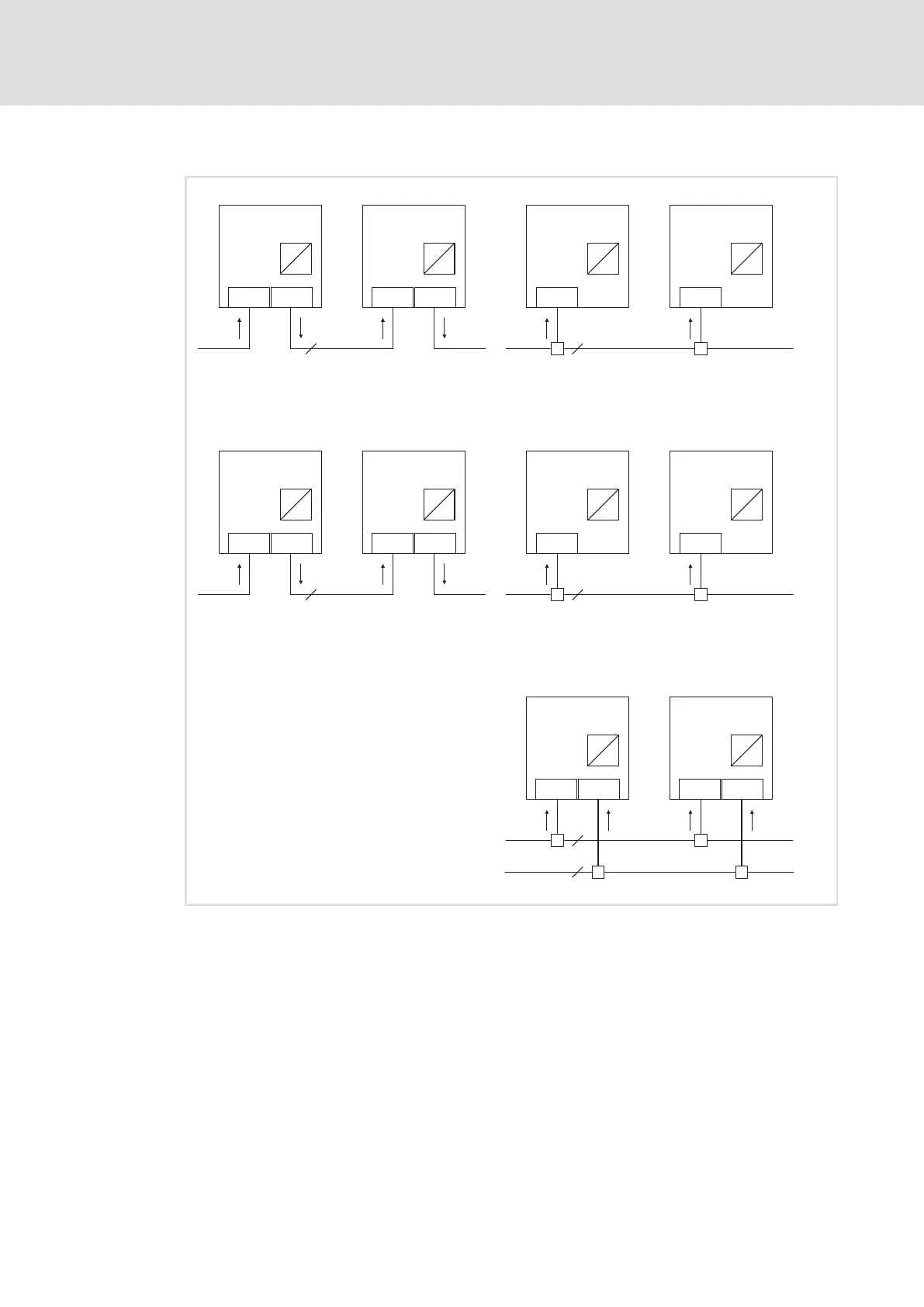

Wiring principle
X10 X10

4
3/PE AC
~
=
~
=
~
=
~
=
~
=
~
=
X10 X10

6
3/PE AC
24 V DC
X10 X10
X11 X11

4
3/PE AC
24 V DC
2
X10 X10
X11 X11

6
3/PE AC
24 V DC
X10 X10
X11 X11

4
3/PE AC
~
=
~
=
~
=
~
=
E84D ...xP E84D ...xPE84D ...xM E84D ...xM
E84D ...xP E84D ...xPE84D ...xM E84D ...xM
E84D ...xM E84D ...xM
E84DVK002
 Loop−through technique with 8400 protec in version E84DxM...
X10, X11 Mains connection 3/PE AC with standard cable
 Loop−through technique with 8400 protec in version E84DxM...
X10, X11 Mains connection 3/PE AC with 24 V DC supply voltage and hybrid cable
 Power distributor with 8400 protec in version E84DxP...
X10 Mains connection 3/PE AC with standard cable
 Power distributor with 8400 protec in version E84DxP...
X10 Mains connection 3/PE AC with 24 V DC supply voltage and hybrid cable
 Power distributor with 8400 protec in version E84DxM...
X10 Mains connection 3/PE AC with standard cable
X11 24 V DC buffer voltage with standard cable
