7.7.2 Loop guard
The loop guard for the optics cover prevents damage to the safety sensor caused by light contact with for-
eign objects.
NOTICE
The loop guard can only be used together with the mounting system BTU800M.
1
1
2
3 3
4

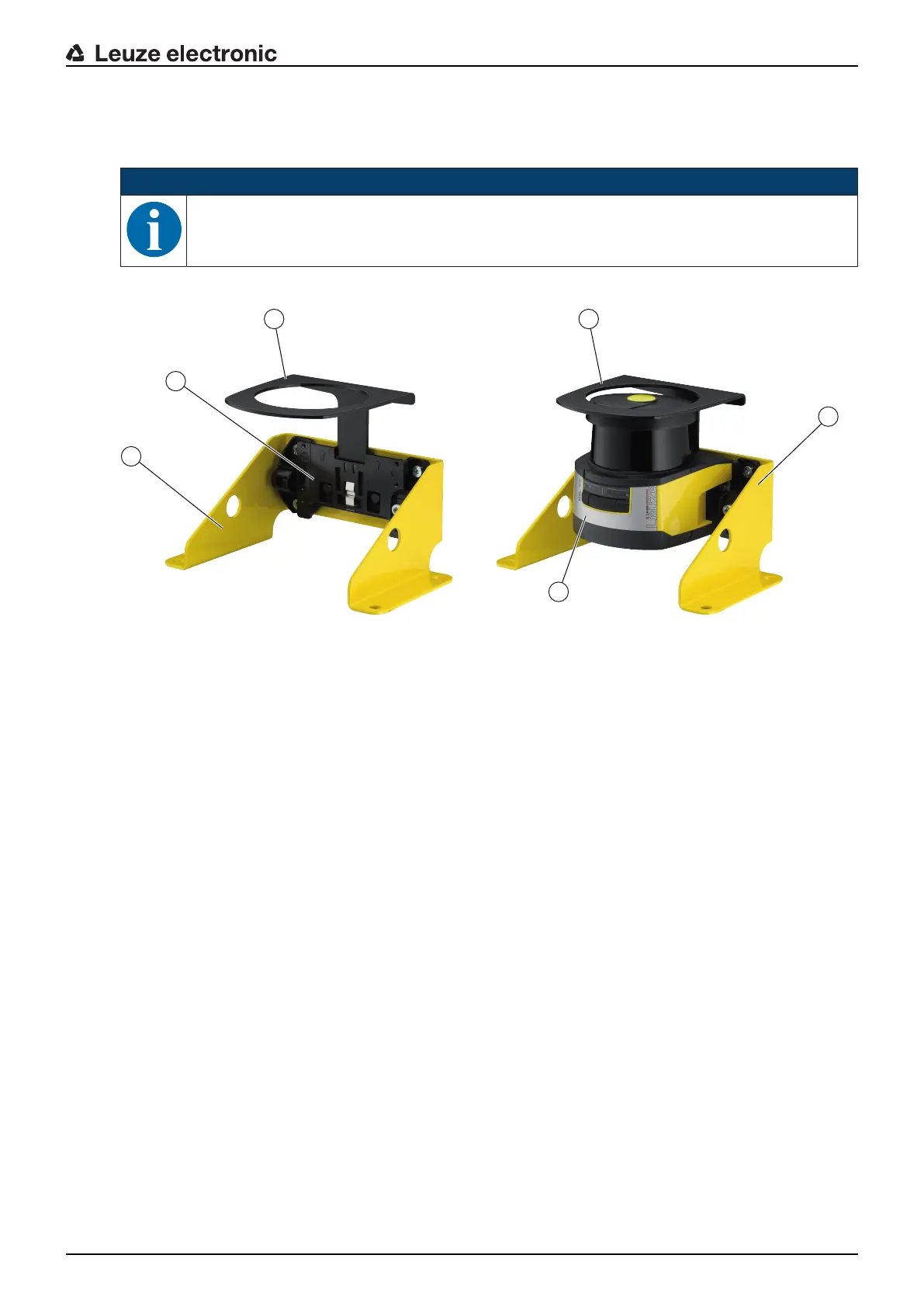

1 BTF815M mounting bracket for floor mounting (only with BTU800M mounting system)
2 BTU800M mounting system
3 Loop guard
4 Safety sensor
Fig.7.18: Loop guard
Ä Attach the safety sensor to the mounting system.
Ä Engage the loop guard for the optics cover from above into the mounting system.
