Configuring the safety sensor
Leuze electronic RSL 430 88
Ä Confirm successful transfer of the safety configuration to the safety sensor with [OK].
The safety configuration has only been successfully transferred to the safety sensor when the confirma-
tion dialog is displayed during the download.

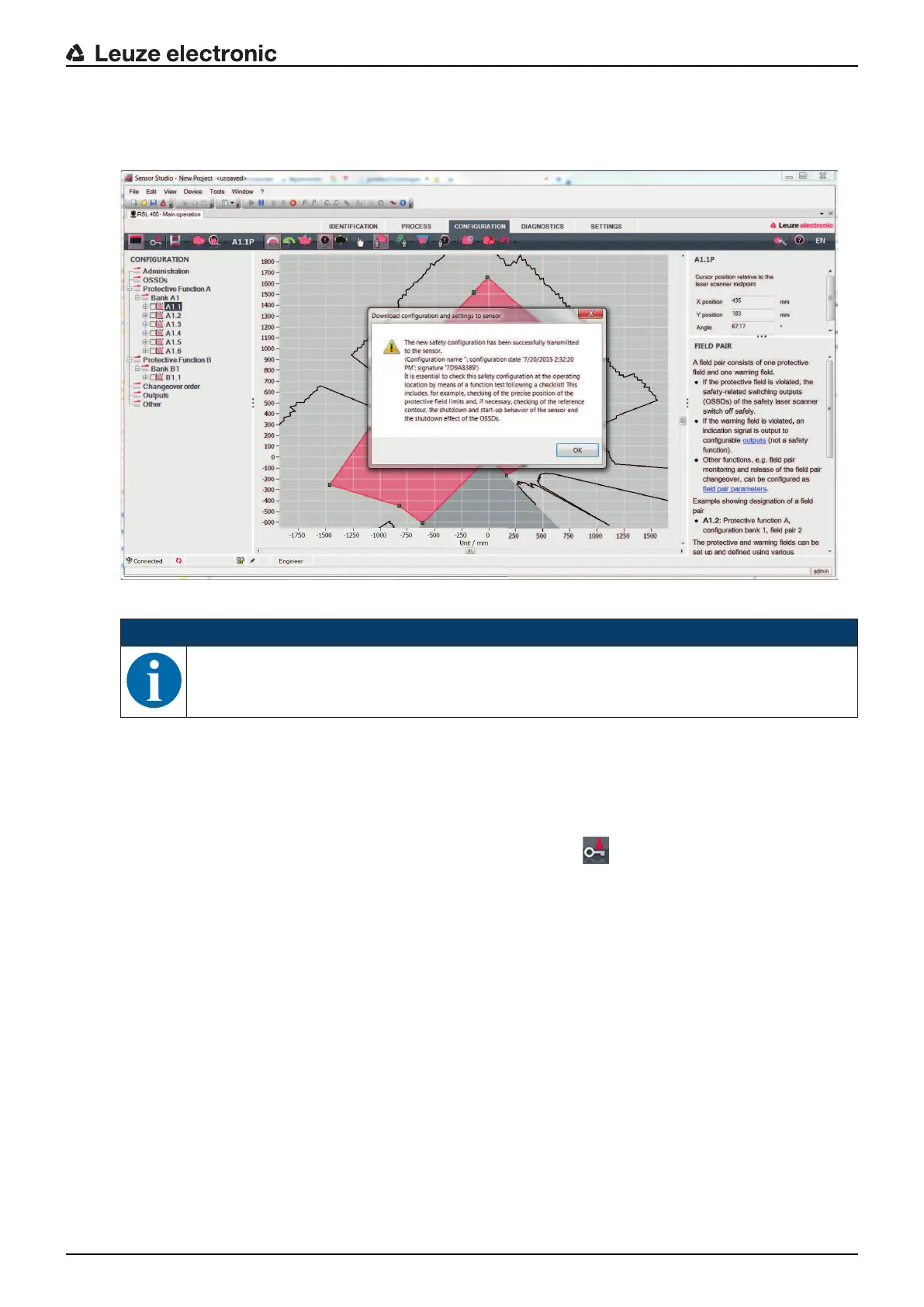

Fig.9.4: Confirmation: safety configuration downloaded
NOTICE
The safety-related switching outputs will already have switched on if all conditions are fulfilled.
ð The software has saved the configuration project in the safety sensor.
9.9 Selecting access level
Using the device manager (DTM) you can change the access level of the user, if necessary (see chapter
5.1 "Authorization concept of safety sensor").
Ä Click in the DTM menu bar on the Change access levelbutton ( ).
ð The Change access level dialog box opens.
Ä In the Authorization list, select the item Engineer, Expert or Observer and enter the default password
or the password defined for the individual user (see chapter 4.5.6 "SETTINGS").
• Default password for Engineer: safety
• Default password for Expert: comdiag
Ä Confirm with [OK].
9.10 Reset safety configuration
The device manager (DTM) can be used to reset the safety configuration to the default configuration (one
protective function, no restart).
Ä In the DTM menu bar, click the [Reset safety configuration] button.
ð Users with the access level Engineer can additionally transfer the changed safety configuration to the
safety sensor (see chapter 9.8 "Transferring configuration project to safety sensor").
