Chapter 12 VPN
http://www.level1.com Page 129
1. Configure Shanghai VPN gateway

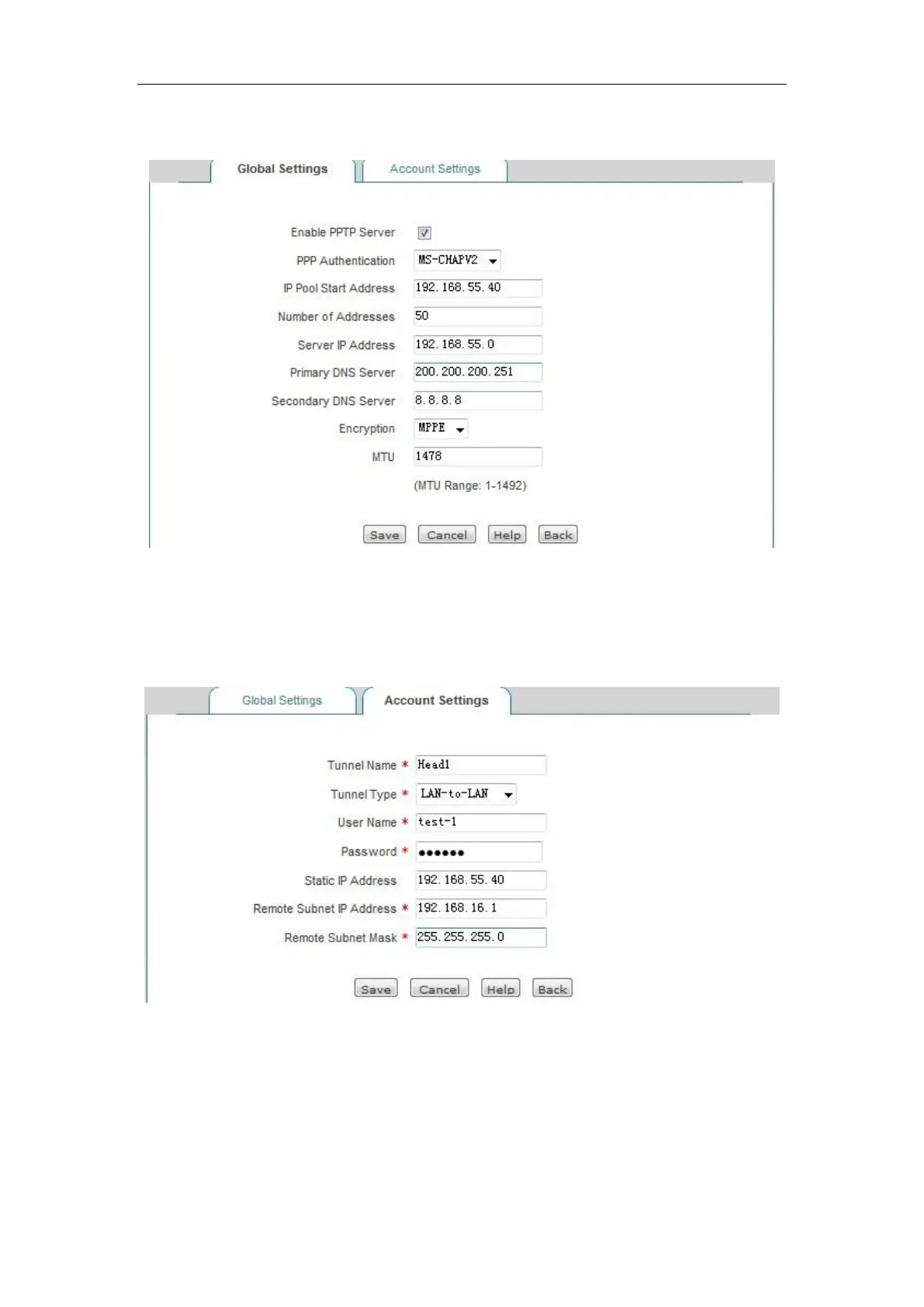

Figure 12_7 PPTP server Settings
Create an account for the Beijing Branch, user type: LAN to LAN. User name: Test2. Password:
123456. Password authentication mode: MS-CHAPV2. Remote Intranet network addresses:
192.168.16.1. Remote Intranet subnet mask: 255.255.255.0.
Figure 12_8 PPTP server Settings - LAN to LAN
Create an account for mobile users, user types: Mobile users. User name: Test1. Password: 123456.
And assign a fixed IP address of 192.168.55.41 for the mobile user.
