Chapter 6 Network parameters
http://www.level1.com Page 37

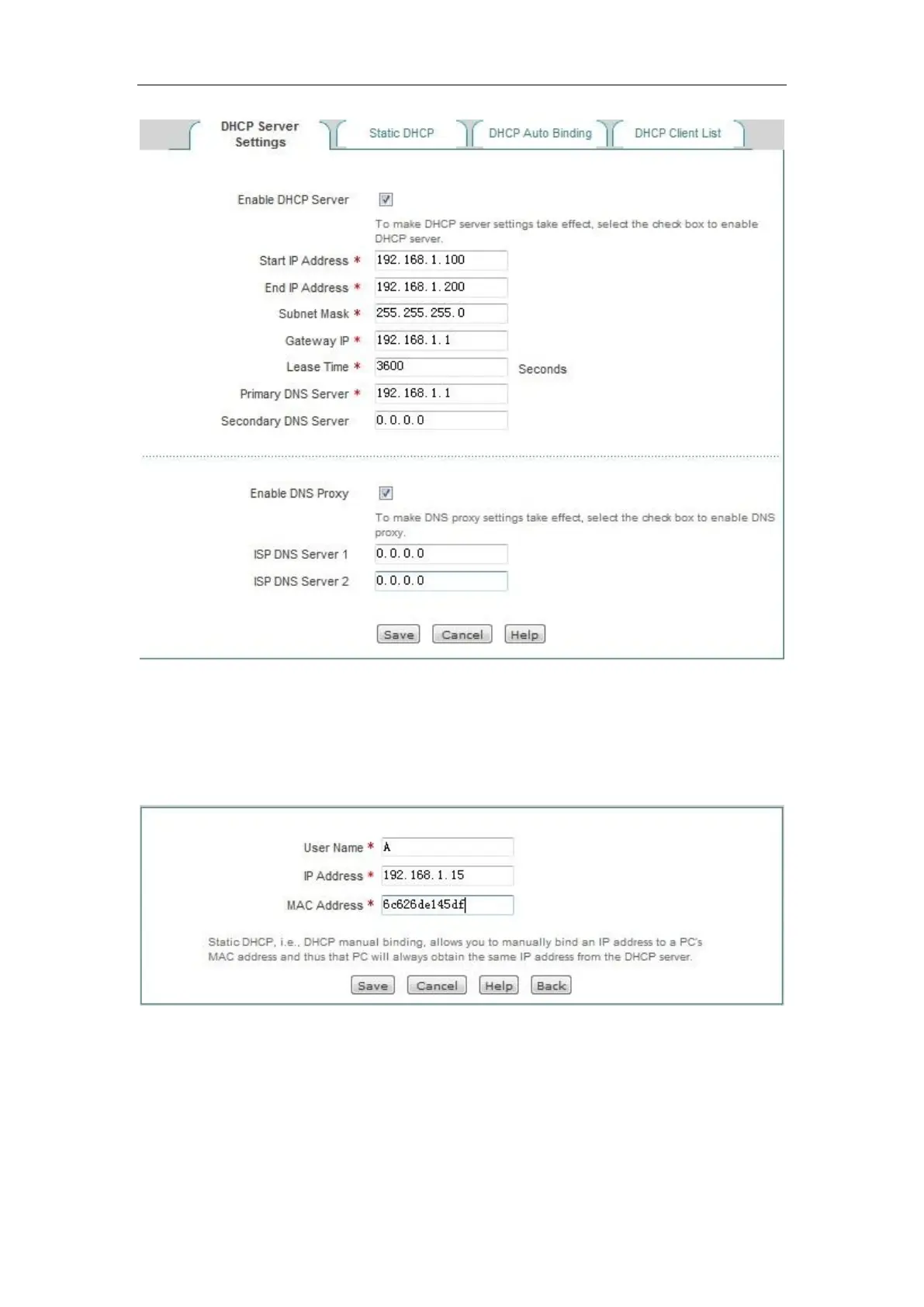

Figure 6_19 DHCP service settings - Instance
The third step is to enter the Network parameters -> DHCP server-> Static DHCP page, and click
<Add new entry>, to configure the two static DHCP instances in the request (such as Figure 6_20,
Figure 6_21).
Figure 6_20 Static DHCP configuration - Instance A
