Chapter 7 Advanced Configuration
http://www.level1.com Page 44

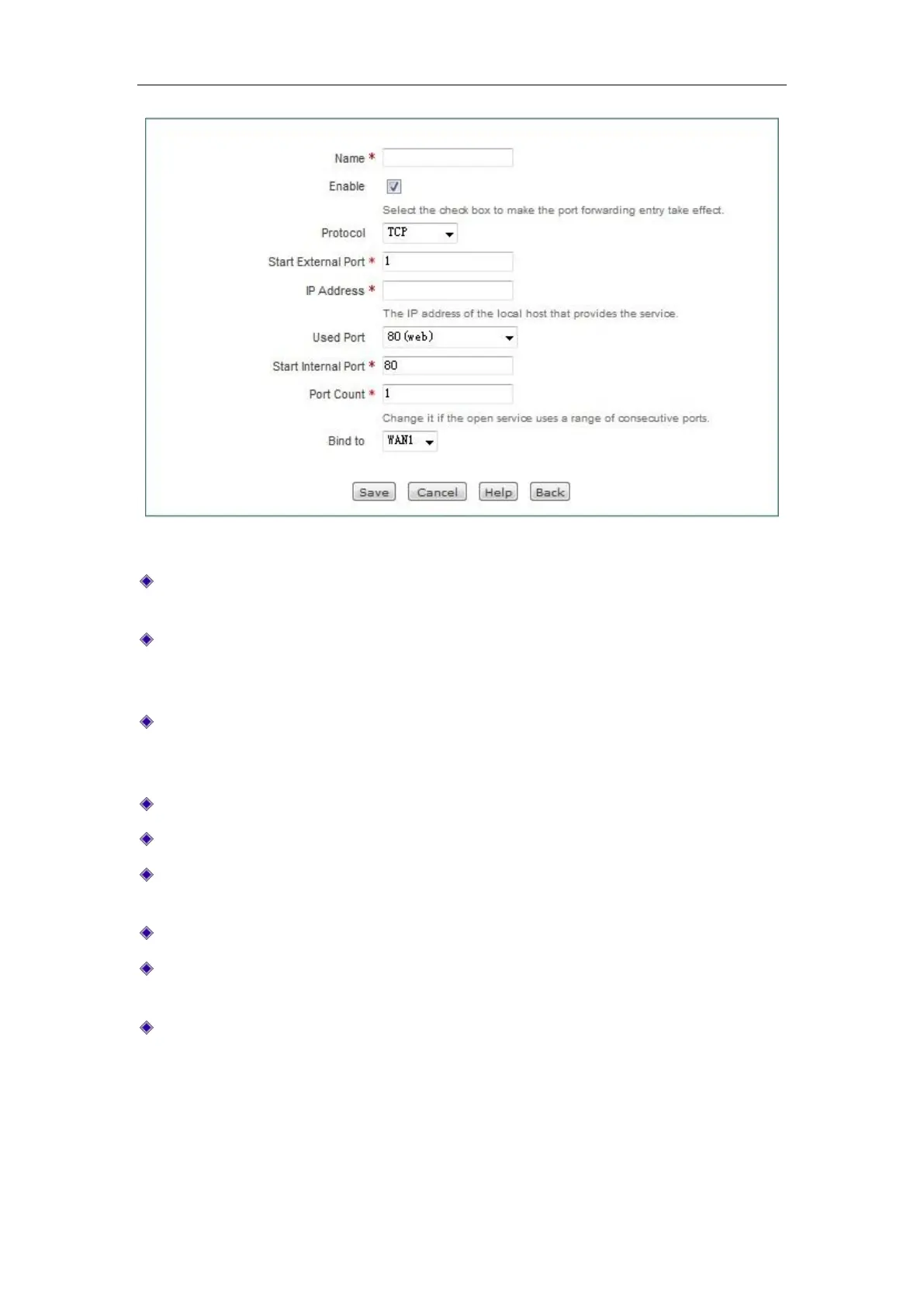

Figure 7_2 Port Forwarding Settings
Static mapping name: The name of static NAT mapping, which is custom and cannot be
repeated.
Enable this configuration: Selecting it indicates that the static NAT mapping takes effect, and
not selecting it means that the static NAT mapping does not take effect, but retains its
configuration.
Protocol: The protocol type of packets, the available options are: TCP, UDP and TCP/UDP.
When you are unable to confirm that the protocol used by the application is TCP or UDP,
select TCP/UDP.
External starting port: The starting service port the device provides to the Internet.
IP address: The IP address of the computer as a server in the Intranet.
Common port: The port number that corresponds to the common protocol type for users'
choice. When you are unable to confirm the protocol, select TCP/UDP.
Internal starting port: The starting port of the services enabled by the network server.
Number of ports: A segment of ports starting from the internal starting port, whose maximum
value is set to 500.
NAT binding: Selects the interface bound by the static NAT mapping.
