Chapter 7 Advanced Configuration
http://www.level1.com Page 46

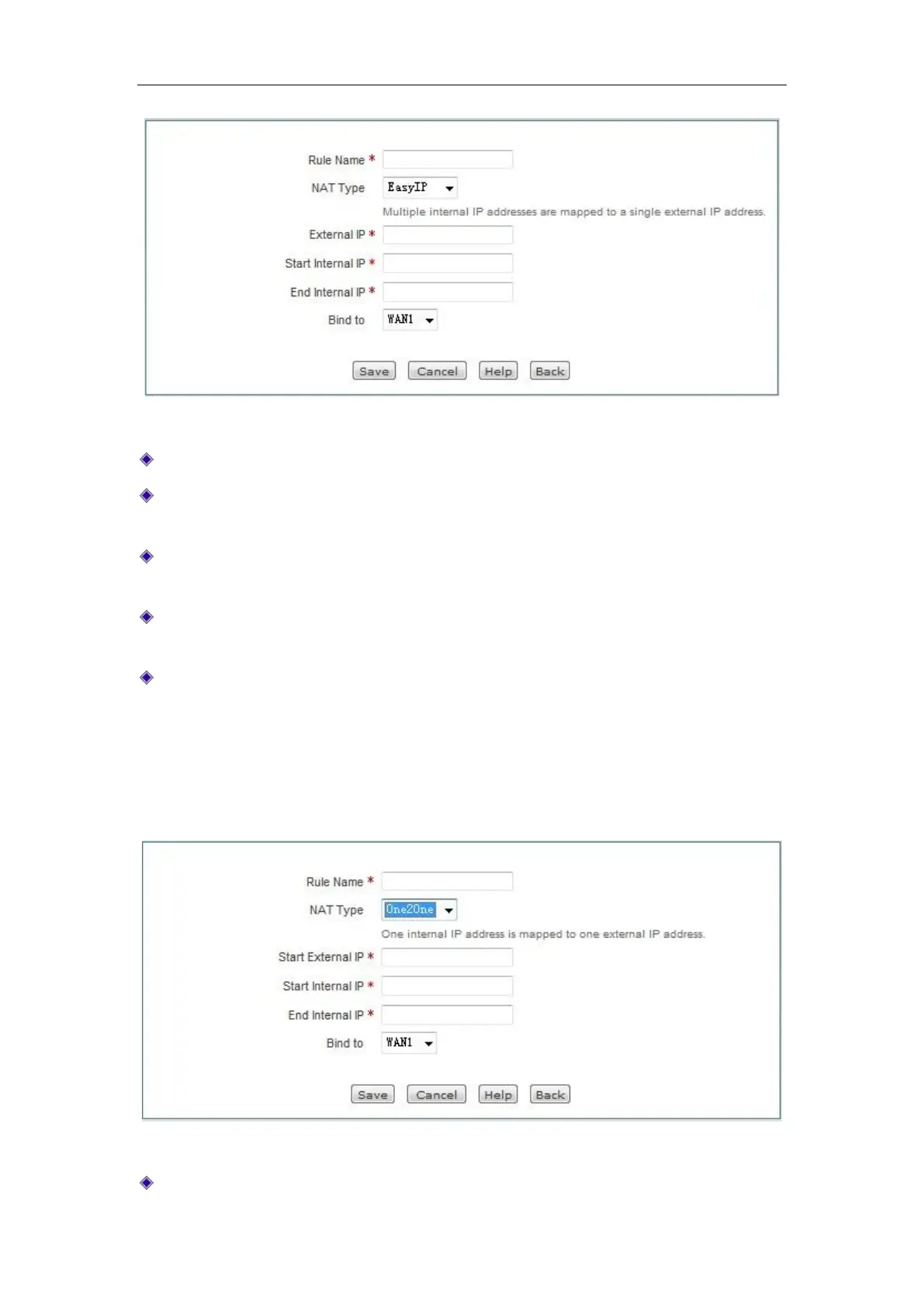

Figure 7_4 Easy IP
Rule name: Customizes the name of the NAT rule.
NAT type: Selects EasyIP here, which means the internal IP address are mapped to the same
external IP address.
External IP address: In the NAT rule, the external IP address mapped to the internal IP
address.
Internal starting IP address, internal ending IP address: The IP address range for the
computers in the intranet that have the priority to use the NAT rules for Internet access.
Binding: Selects the interface bound by the static NAT mapping.
3. One2One
Select the NAT type as One2One in Figure 7_5. The meaning of the parameters for configuring
the NAT rules as One2One type is described here, and those parameters same as EasyIP are
repeated no longer here.
Figure 7_5 One2One
NAT type: Here, One2One is selected. The internal IP address and the external IP address are
