4-16 Service Manual
5025-2xx, 4xx

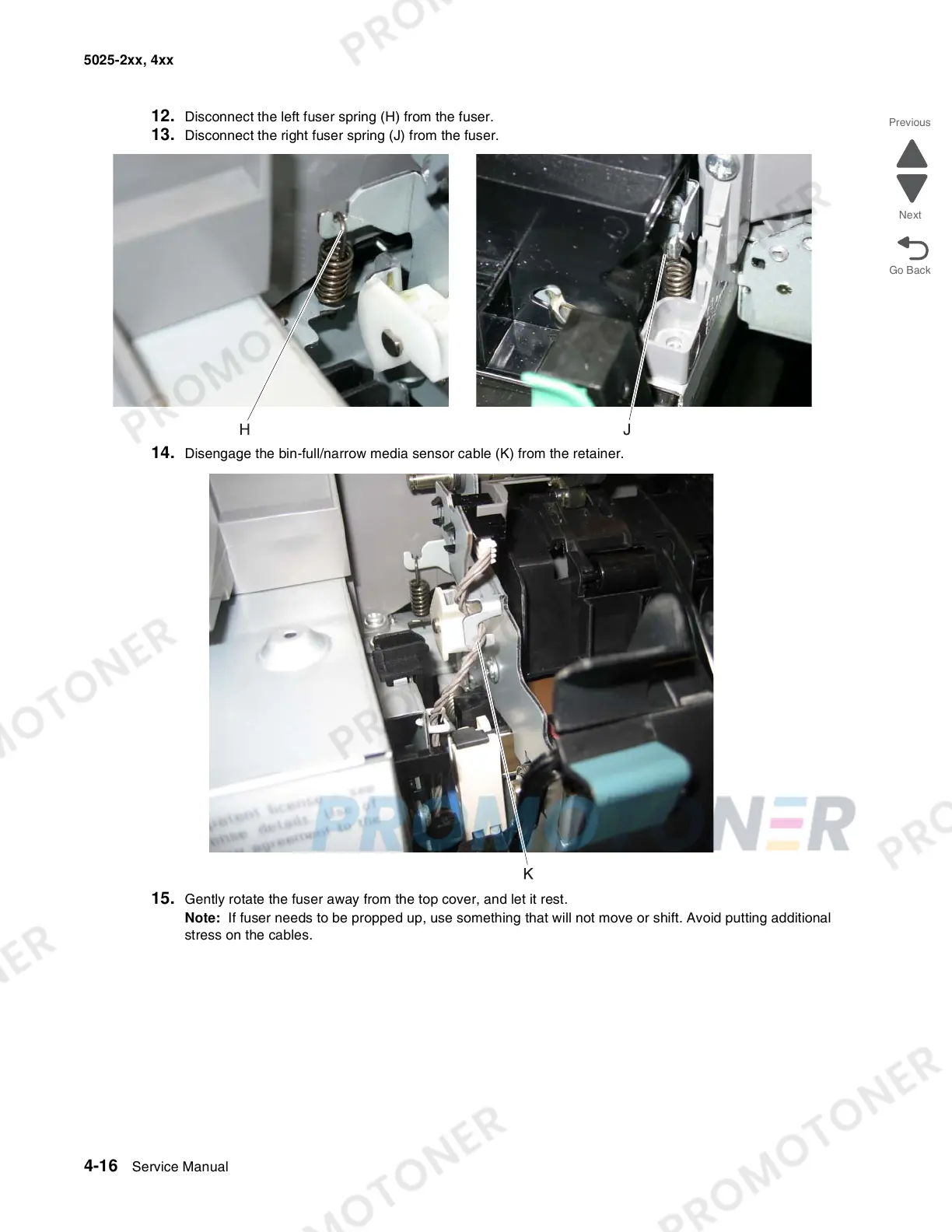

12. Disconnect the left fuser spring (H) from the fuser.
13. Disconnect the right fuser spring (J) from the fuser.
14. Disengage the bin-full/narrow media sensor cable (K) from the retainer.
15. Gently rotate the fuser away from the top cover, and let it rest.
Note: If fuser needs to be propped up, use something that will not move or shift. Avoid putting additional
stress on the cables.
