Repair information 4-15
5025-2xx, 4xx
Go Back
Previous
Next

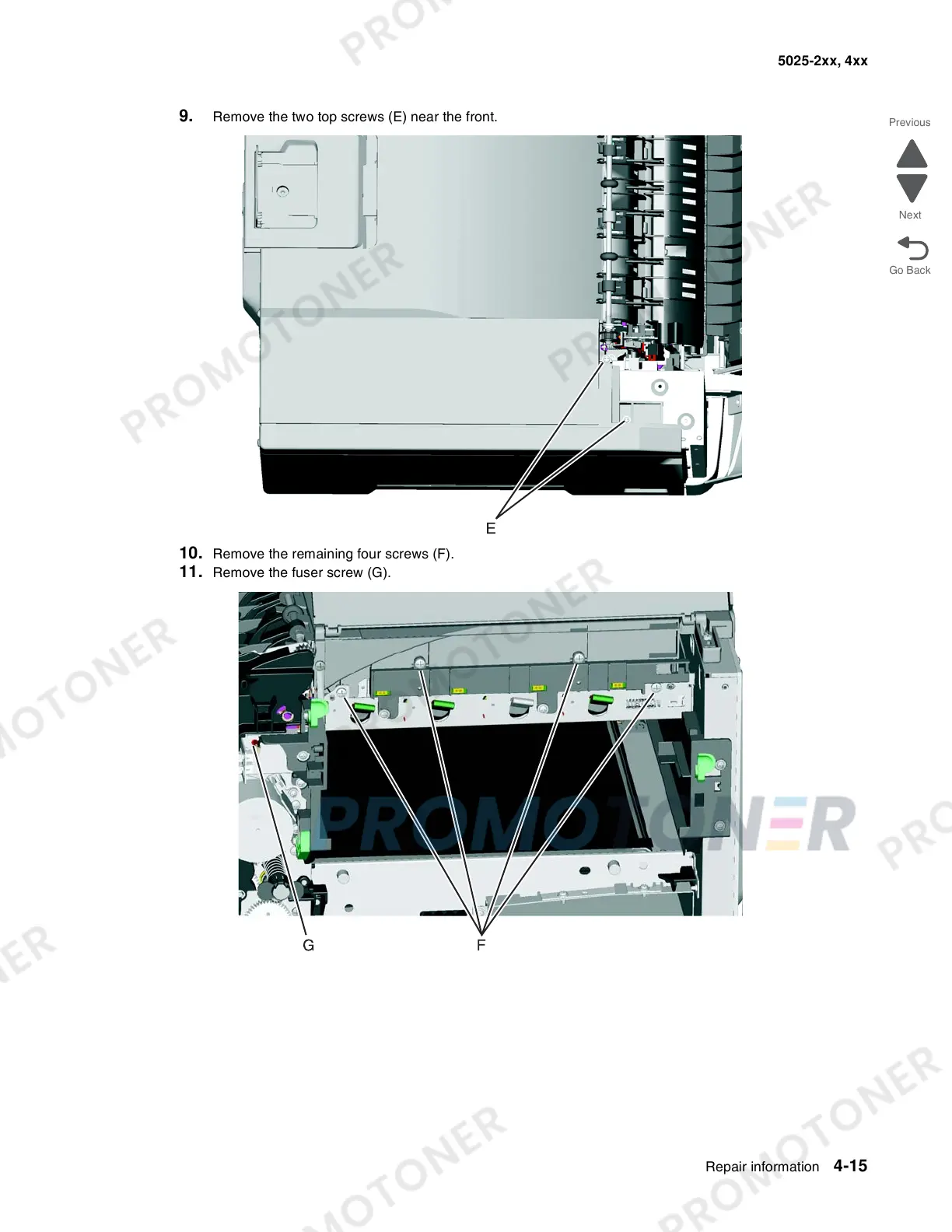

9. Remove the two top screws (E) near the front.
10. Remove the remaining four screws (F).
11. Remove the fuser screw (G).
