Lexmark C543dn Service Manual

Connector locations 5-11
5025-2xx, 4xx
Go Back
Previous
Next
JUSBW1
USB wireless connector
1 Ground
2 USB_HST_VP
3 USB_HST_VM
4 Ground
5+5 V dc
6 +3.3 V dc
JWT1
Waste toner detection
1 SENSE
2VREF
3 +1.5 V dc
4 Ground (no wire)

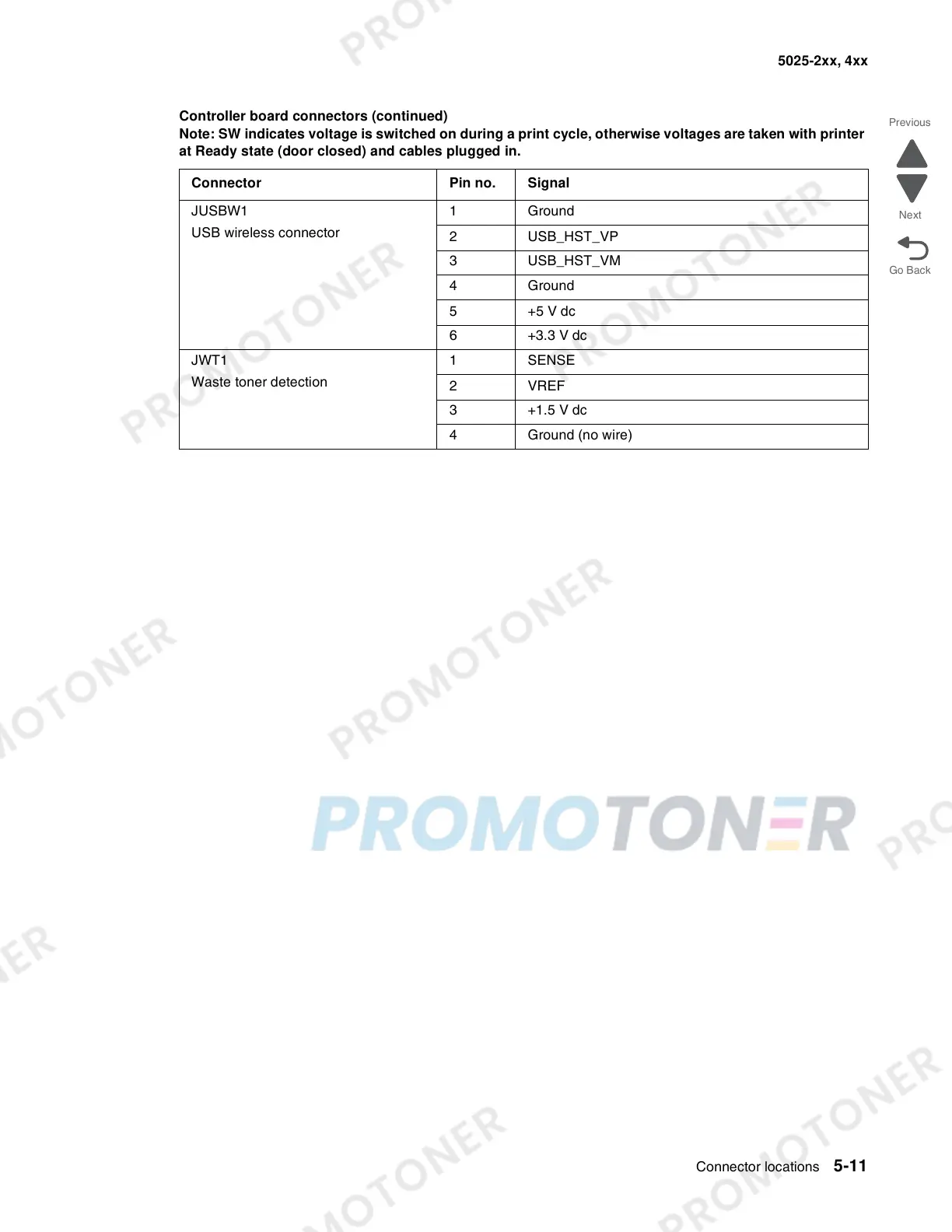

Controller board connectors (continued)
Note: SW indicates voltage is switched on during a print cycle, otherwise voltages are taken with printer
at Ready state (door closed) and cables plugged in.
Connector Pin no. Signal
