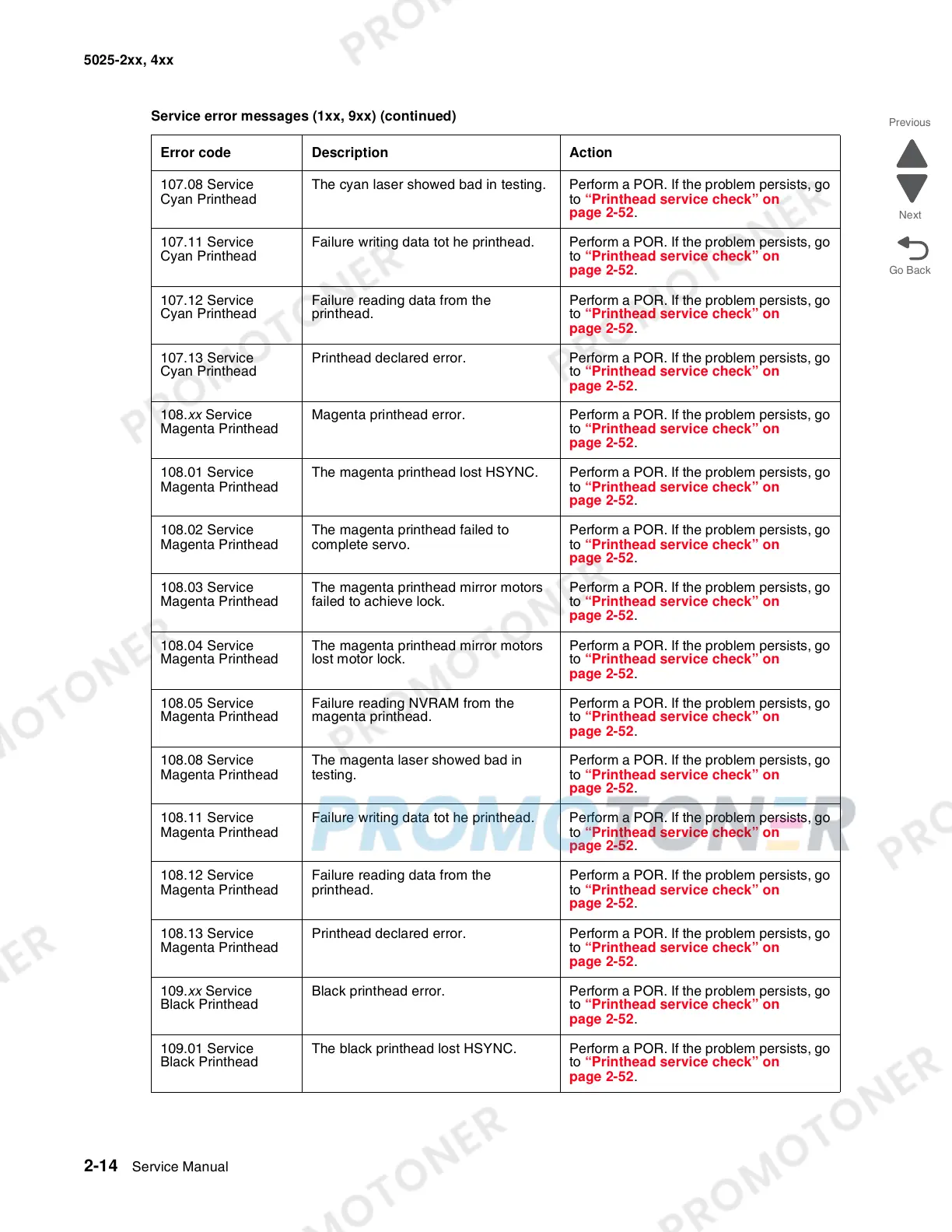

107.08 Service
Cyan Printhead
The cyan laser showed bad in testing. Perform a POR. If the problem persists, go
to “Printhead service check” on
page 2-52.
107.11 Service
Cyan Printhead
Failure writing data tot he printhead. Perform a POR. If the problem persists, go
to “Printhead service check” on
page 2-52.
107.12 Service
Cyan Printhead
Failure reading data from the
printhead.
Perform a POR. If the problem persists, go
to “Printhead service check” on
page 2-52.
107.13 Service
Cyan Printhead
Printhead declared error. Perform a POR. If the problem persists, go
to “Printhead service check” on
page 2-52.
108.xx Service
Magenta Printhead
Magenta printhead error. Perform a POR. If the problem persists, go
to “Printhead service check” on
page 2-52.
108.01 Service
Magenta Printhead
The magenta printhead lost HSYNC. Perform a POR. If the problem persists, go
to “Printhead service check” on
page 2-52.
108.02 Service
Magenta Printhead
The magenta printhead failed to
complete servo.
Perform a POR. If the problem persists, go
to “Printhead service check” on
page 2-52.
108.03 Service
Magenta Printhead
The magenta printhead mirror motors
failed to achieve lock.
Perform a POR. If the problem persists, go
to “Printhead service check” on
page 2-52.
108.04 Service
Magenta Printhead
The magenta printhead mirror motors
lost motor lock.
Perform a POR. If the problem persists, go
to “Printhead service check” on
page 2-52.
108.05 Service
Magenta Printhead
Failure reading NVRAM from the
magenta printhead.
Perform a POR. If the problem persists, go
to “Printhead service check” on
page 2-52.
108.08 Service
Magenta Printhead
The magenta laser showed bad in
testing.
Perform a POR. If the problem persists, go
to “Printhead service check” on
page 2-52.
108.11 Service
Magenta Printhead
Failure writing data tot he printhead. Perform a POR. If the problem persists, go
to “Printhead service check” on
page 2-52.
108.12 Service
Magenta Printhead
Failure reading data from the
printhead.
Perform a POR. If the problem persists, go
to “Printhead service check” on
page 2-52.
108.13 Service
Magenta Printhead
Printhead declared error. Perform a POR. If the problem persists, go
to “Printhead service check” on
page 2-52.
109.xx Service
Black Printhead
Black printhead error. Perform a POR. If the problem persists, go
to “Printhead service check” on
page 2-52.
109.01 Service
Black Printhead
The black printhead lost HSYNC. Perform a POR. If the problem persists, go
to “Printhead service check” on
page 2-52.
