Lexmark C543dn Service Manual

2-16 Service Manual
5025-2xx, 4xx
Go Back
Previous
Next
122.08 Service
Fuser Error
Wrong lamp bit is set in NVRAM. Go to “Fuser service check” on
page 2-31.
122.10 Service
Fuser Error
Fuser failed to warm up. Go to “Fuser service check” on
page 2-31.
122.11 Service
Fuser Error
Fuser under temperature error while in
standby.
Go to “Fuser service check” on
page 2-31.
122.12 Service
Fuser Error
Fuser under temperature error while
printing.
Go to “Fuser service check” on
page 2-31.
122.13 Service
Fuser Error
Fuser open thermistor check failed for
second thermistor.
Go to “Fuser service check” on
page 2-31.
122.14 Service
Fuser Error
Fuser shorted thermistor check failed
for hot roll thermistor.
Go to “Fuser service check” on
page 2-31.
122.15 Service
Fuser Error
Fuser storted thermistor check failed
for second thermistor
Go to “Fuser service check” on
page 2-31.
122.16 Service
Fuser Error
Estimated power is at or above
maximum power.
Go to “Fuser service check” on
page 2-31.
122.17 Service
Fuser Error
Total failure to close fuser nip. Go to “Fuser service check” on
page 2-31.
141.xx Service
Staging Motor
Staging motor error. Go to “Paper pick motor drive assembly
service check” on page 2-42.
141.01 Service
Staging Motor
Staging motor has exceeded the ramp
up table.
Go to “Paper pick motor drive assembly
service check” on page 2-42.
141.02 Service
Staging Motor
Staging motor has exceeded number
of encoders at minimum PWM.
Go to “Paper pick motor drive assembly
service check” on page 2-42.
141.03 Service
Staging Motor
Staging motor has exceeded number
of encoders at maximum PWM.
Go to “Paper pick motor drive assembly
service check” on page 2-42.
141.04 Service
Staging Motor
Motor encoder count did not change
between interrupts.
Go to “Paper pick motor drive assembly
service check” on page 2-42.
141.05 Service
Staging Motor
Staging motor has encountered a stall
timeout.
Go to “Paper pick motor drive assembly
service check” on page 2-42.
150.xx Service
Black/ITU cartridge
Motor
Black/ITU Cartridge Motor Go to “Main drive gear assembly (EP
drive) service check” on page 2-33.
150.01 Service
Black/ITU cartridge
Motor
Failed to achieve lock for motor within
allotted time.
Go to “Main drive gear assembly (EP
drive) service check” on page 2-33.
150.02 Service
Black/ITU cartridge
Motor
Timeout waiting for SAP BLDC motor
to reach valid FG speed.
Go to “Main drive gear assembly (EP
drive) service check” on page 2-33.
150.03 Service
Black/ITU cartridge
Motor
Timeout waiting for
MP_NUM_INITIAL_SAP_HALLS.
Go to “Main drive gear assembly (EP
drive) service check” on page 2-33.
150.04 Service
Black/ITU cartridge
Motor
Timeout waiting for SAP BLDC motor
FG.
Go to “Main drive gear assembly (EP
drive) service check” on page 2-33.

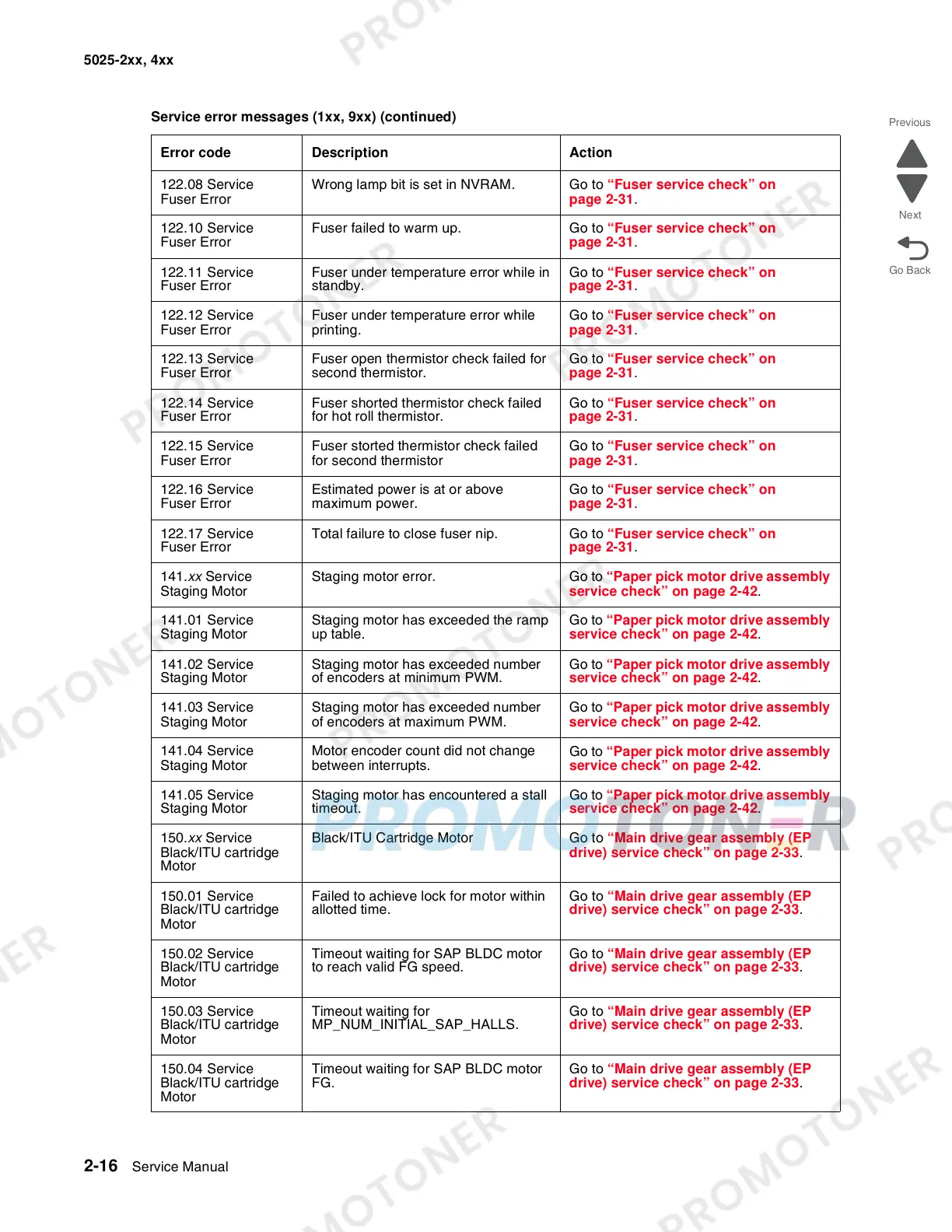

Service error messages (1xx, 9xx) (continued)
Error code Description Action
