3-50 Service Manual
5056-XXX

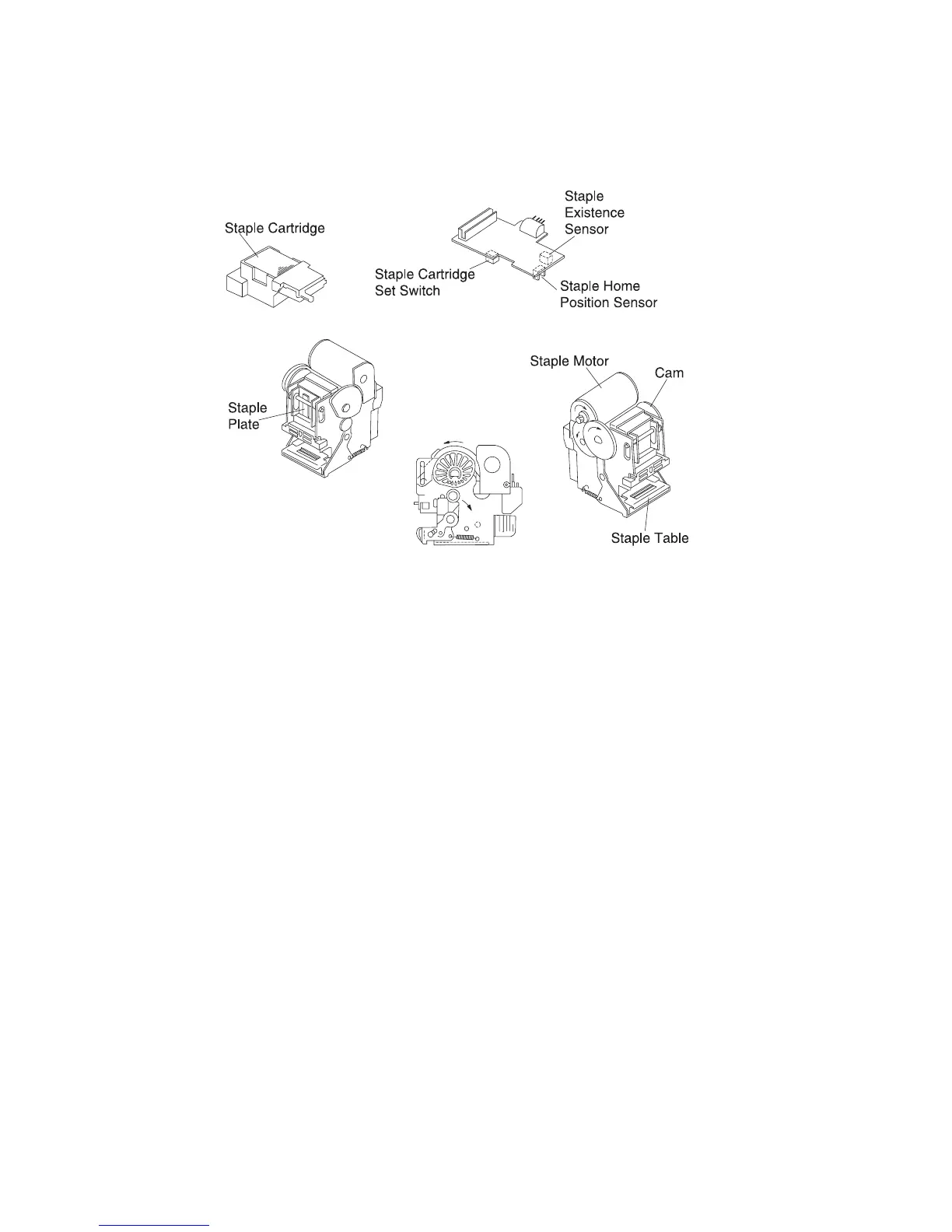

Stapling mechanism
The stapler motor rotation drives a gear link and cam mechanism. The cam movement allows the stapler
mechanism to operate.
