Lexmark C920 - Lowering or Raising the Finisher

3-60 Service Manual
5056-XXX
Lowering or raising the finisher

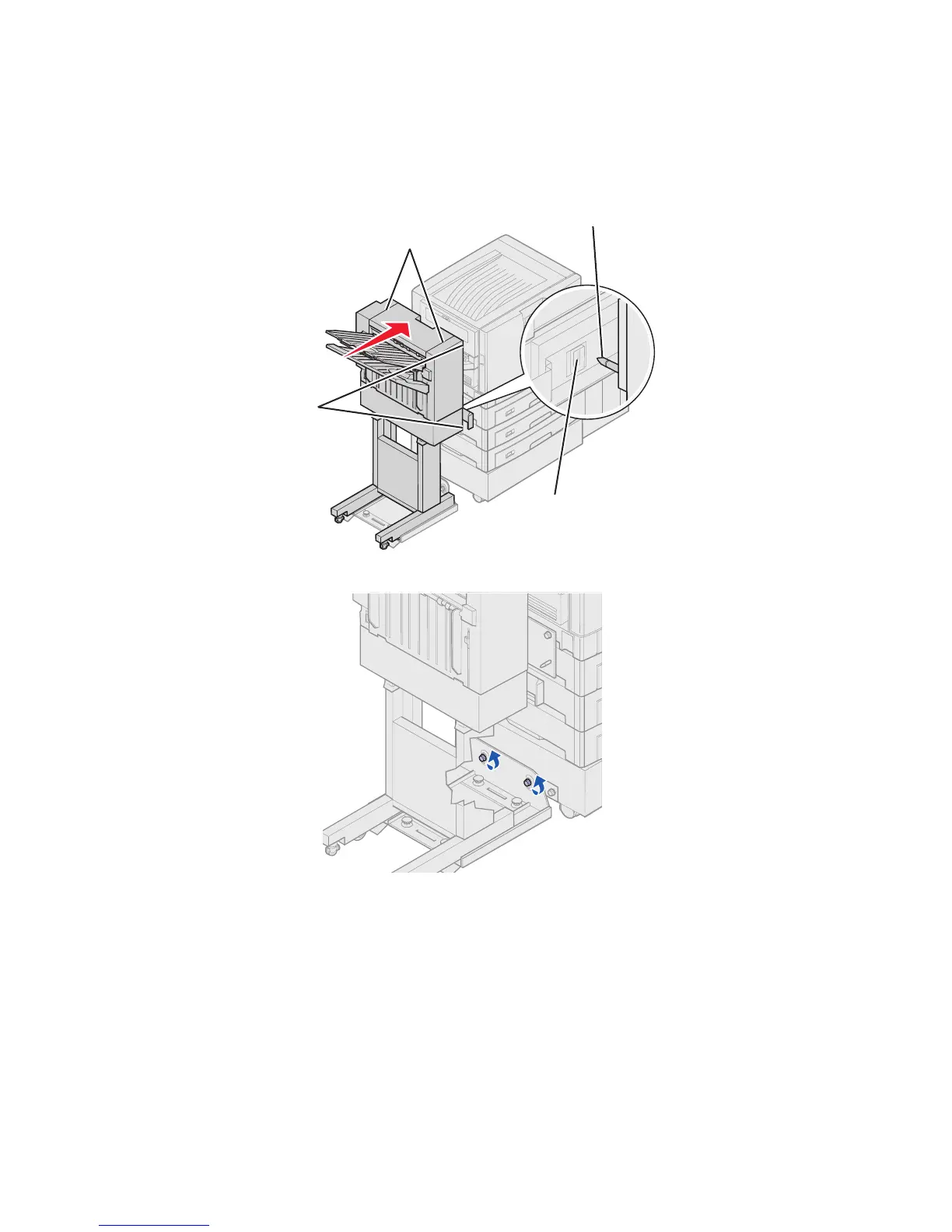

Follow these instructions if the holes on the finisher are above or below the pins on the docking plate.
1. Determine if the pins are above or below the holes in the finisher.
2. Loosen the guide rail thumbscrews.
3. Rotate the adjustment knobs as needed to align the holes in the finisher with the pins.
• To raise the finisher, rotate the adjustment knobs clockwise.
• To lower the finisher, rotate the adjustment knobs counterclockwise.
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
0
0
#
#
Alignment Marks
Spacing
Hole in Finisher
Pin
