Repair information 4-65
5056-XXX

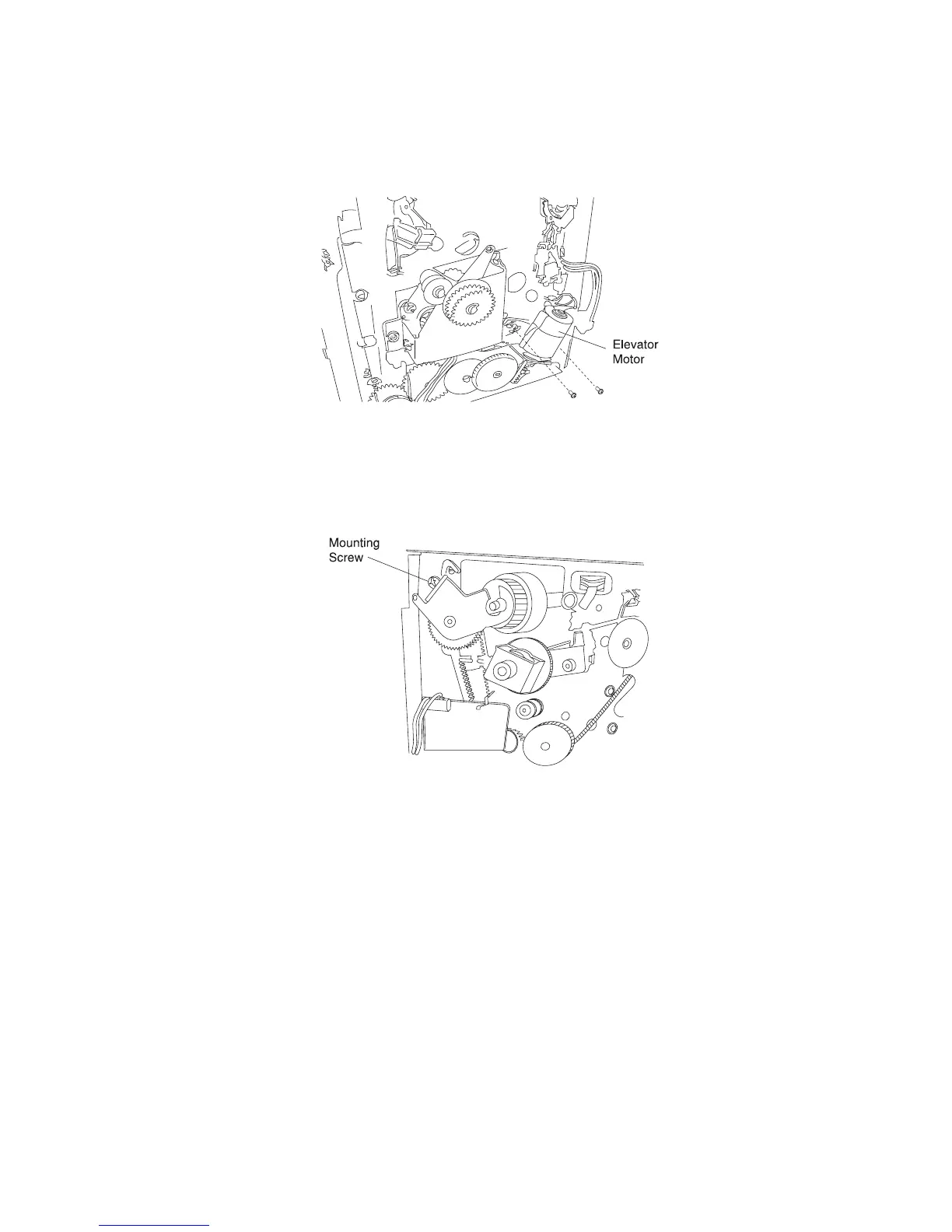

Elevator motor removal
1. Disconnect the elevator motor connector.
2. Remove the two elevator motor bracket screws from the bracket.
3. Remove the elevator motor assembly.
Feed motor assembly removal
1. Remove the finisher control board mounting bracket.
2. Loosen the tension bracket mounting screw.
3. Disconnect the feed motor connector.
4. Remove the three screws and connector from the feed motor mounting bracket, and remove the feed motor
assembly.
5. Remove the feed motor pulley.
