Repair information 4-19
5056-XXX

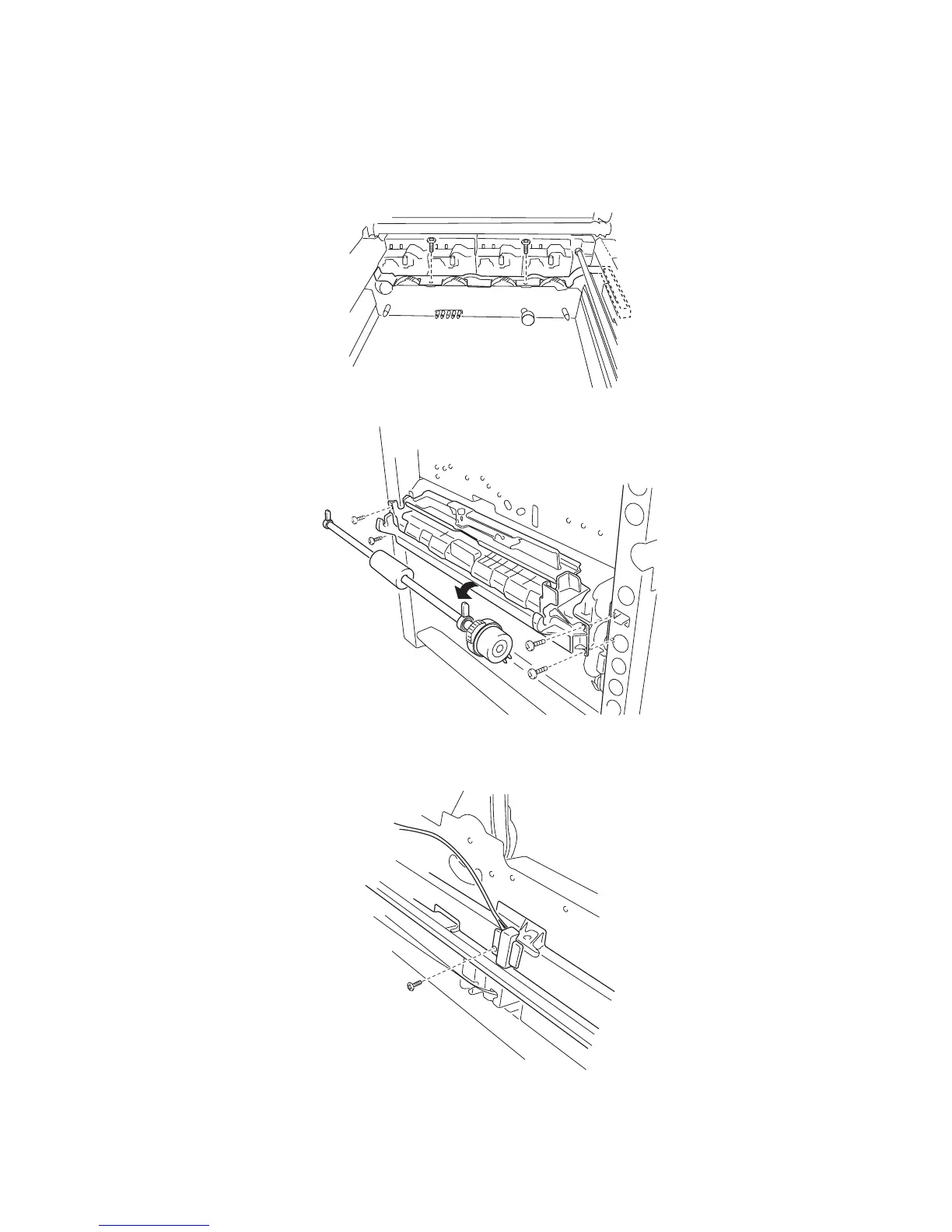

Gear cover removal/Multipurpose feeder frame assembly
1. Open the top unit, and remove the upper cassette, front cover, multipurpose feeder, right side cover, and
turn guide.
2. Remove the two screws from the gear cover, and remove the cover.
3. Remove the four screws from the multipurpose feeder frame and the ground screw.
4. Disconnect the connector of the multipurpose feeder paper feed sensor.
5. Pull out the multipurpose feeder frame slightly.
6. Remove the screw from the OHP detection sensor (upper).
7. Turn the bearing stopper of the multipurpose feeder roll forward
1/4 turn, and remove upward.
8. Remove the multipurpose feeder frame assembly.
