Locations 5-13
5056-XXX

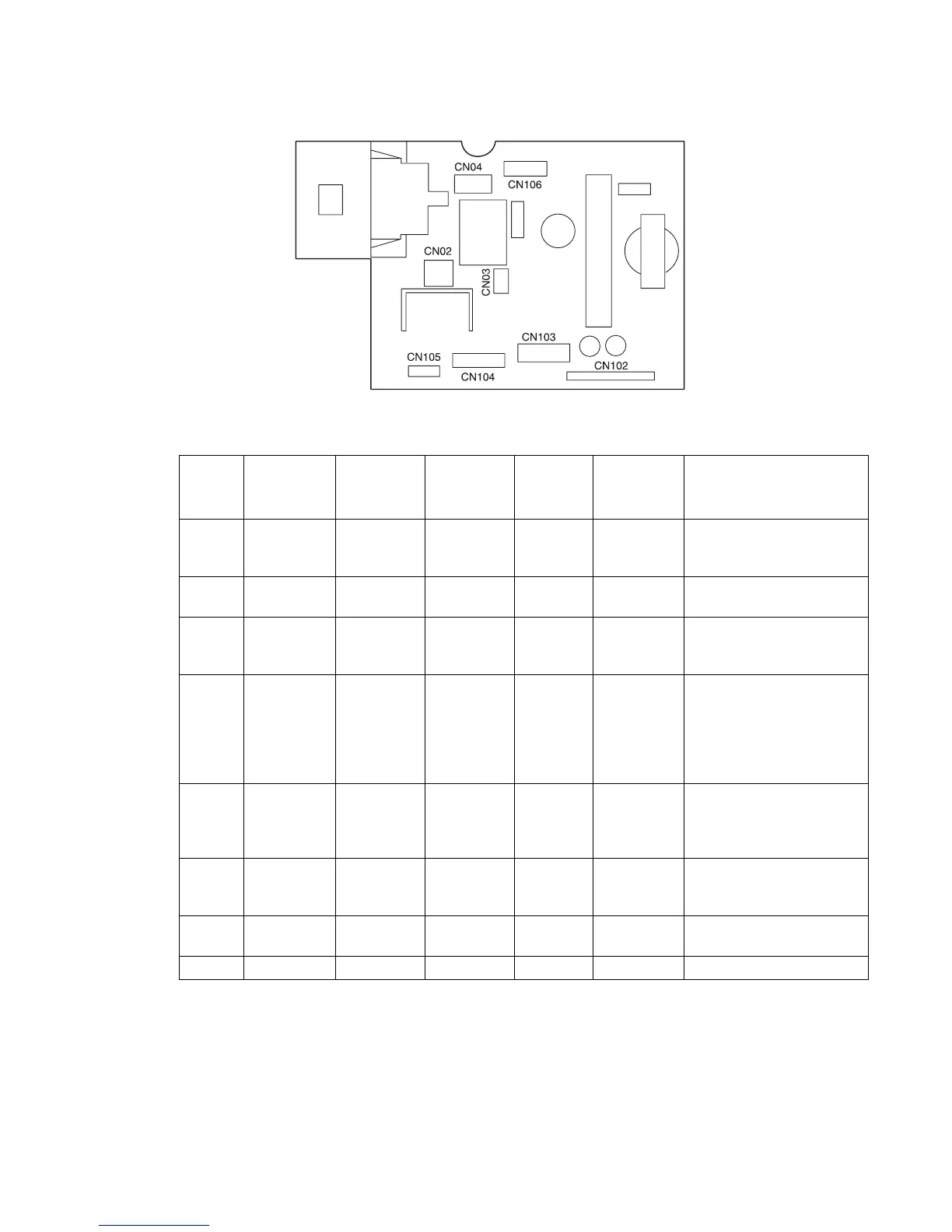

LVPS 2 board connectors
Conn # Orientation
Board
connector
color
Cable
connector
color
# Wires Wire color Connector
CN02 Horizontal White White 3 • Red
•White
•Black
Fuser
CN03 Horizontal White White 2 • Black
•White
Motor drive board
CN104 Horizontal White White 8 • 2 yellow
• 4 black
•2 red
Printer controller
CN105 Horizontal White White 6 • Gray
•White
•Red
•Purple
•Orange
•Black
Printer controller
CN102 Horizontal White White 14 • 3 purple
• 3 yellow
• 1 brown
• 7 black
RIP board
CN103 Horizontal Clear Clear 14 • 2 purple
• 5 yellow
• 7 black
Printhead controller
CN04 Horizontal White White 2 • Black
•White
LVPS 1
CN106 Horizontal White White 5 • 5 black LVPS 1
