Lexmark M3250 Service Manual

Warning—Potential Damage: Do not insert the cable so that the contacts are facing the locking actuator.
The contacts always face away from the actuator.
Warning—Potential Damage: Do not insert the cable diagonally into the ZIF socket. This can cause damage
to the contacts on the cable.
Warning—Potential Damage: Avoid using a
fingernail,
or sharp object to open the locking mechanism. This
could damage the cable.
Warning—Potential Damage: Avoid pressing against the cable when opening the locking mechanism. This
can also damage the cable.
These are the types of ZIF connectors used in this printer:
• Horizontal top contact connector
• Horizontal bottom contact connector
• Vertical mount contact connector
• Horizontal sliding connector
Horizontal top contact connector
This FRU contains a horizontal top contact cable connector. Read the instructions before proceeding.
The horizontal top contact connector uses a back
flip
locking actuator to lock the ribbon cable into the Zero
Insertion Force (ZIF) connector. The cable is inserted horizontally into the connector.
Warning—Potential Damage: When opening or closing this type of actuator, gently lift or close the two tabs
located on each end of the actuator. The two tabs should be moved simultaneously. Do not close the
actuator from the center of the actuator.
Removing a cable from the horizontal top contact connector

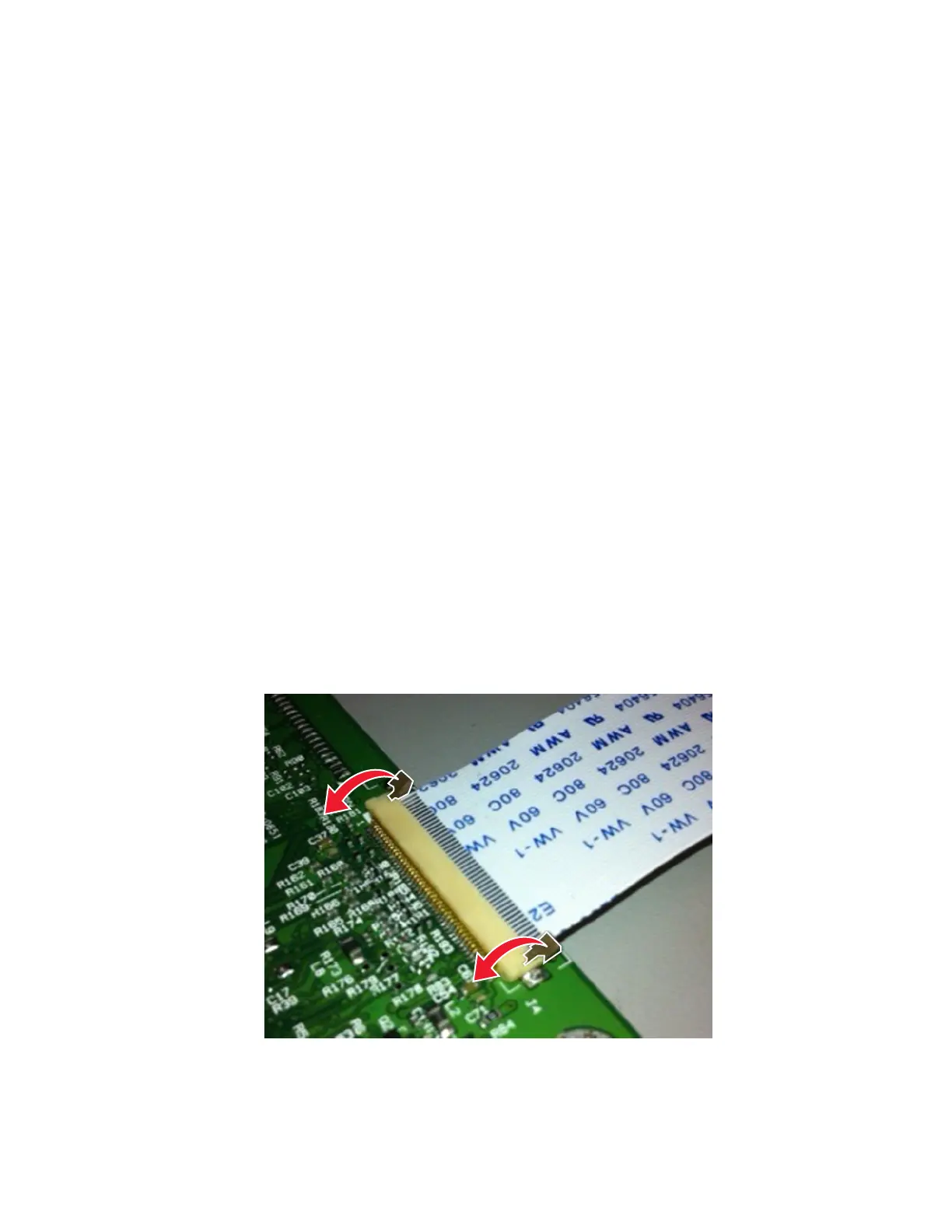

1 Place a finger at each end of the locking actuator, and then gently lift the actuator to the unlocked position.
2 Slide the cable out of the connector.
4600-830, -835, -895
Parts removal
162

Lexmark M3250 Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	50 ppm
Printing colors	Black
Maximum duty cycle	175000 pages per month
Recommended duty cycle	2000 - 20000 pages per month
Number of print cartridges	1
Page description languages	-
Paper input type	Paper tray
Total input capacity	650 sheets
Total output capacity	250 sheets
Maximum input capacity	2300 sheets
Maximum number of input trays	4
Multi-Purpose tray input capacity	100 sheets
Envelopes sizes	7 3/4, 9, 10, DL
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm), Universal
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
USB connector	USB Type-A / USB Type-B
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Processor cores	2
Processor frequency	1000 MHz
Sound pressure level (printing)	55 dB
Operating altitude	0 - 2896 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Sustainability certificates	EPEAT Silver, ENERGY STAR
Power consumption (printing)	- W
Control type	Touch
Product color	Black, White
Display diagonal	4.3 \
Market positioning	Business

Weight and Dimensions

Depth	373.4 mm
Width	398.8 mm
Height	302.3 mm
