Main drive gearbox removal

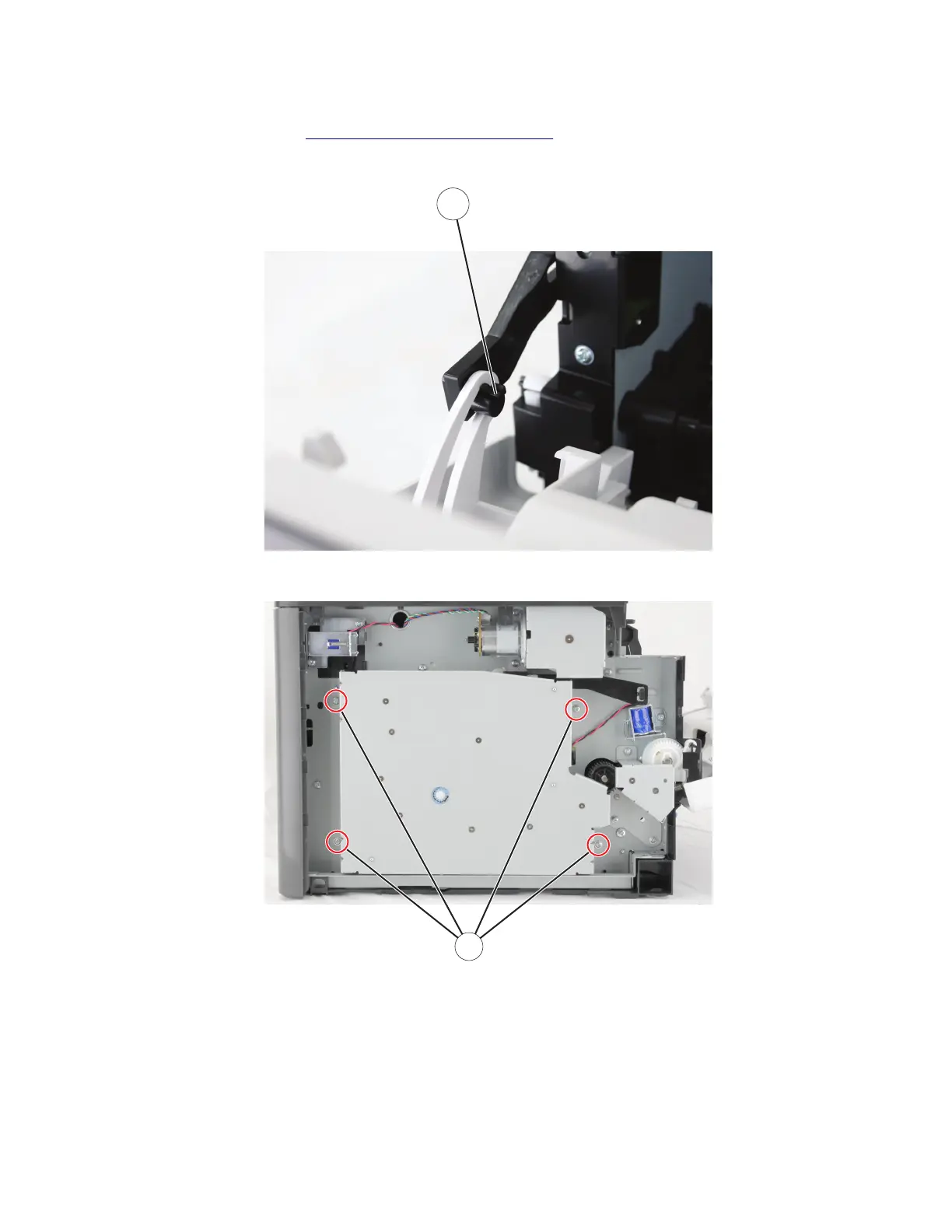

1 Remove the left cover. See “Left cover removal” on page 177.
2 Release the latch (A), and then detach the link.
A
3 Remove the four screws (B).
B
4 Disconnect the cable from the main drive gearbox.
5 Remove the gearbox.
Warning—Potential Damage: Do not lose the fuser gear (C) and spring (D).
4600-830, -835, -895
Parts removal
178
