Lexmark M3250 Service Manual

Low Insertion Force (LIF) connector
This FRU contains a Low Insertion Force (LIF) connector. Read the instructions before proceeding.
Warning—Potential Damage: When installing a cable into an LIF connector, care must be taken to avoid
bending the edges of the cables and damaging the contacts on the cables.
Inserting a cable into the LIF connector

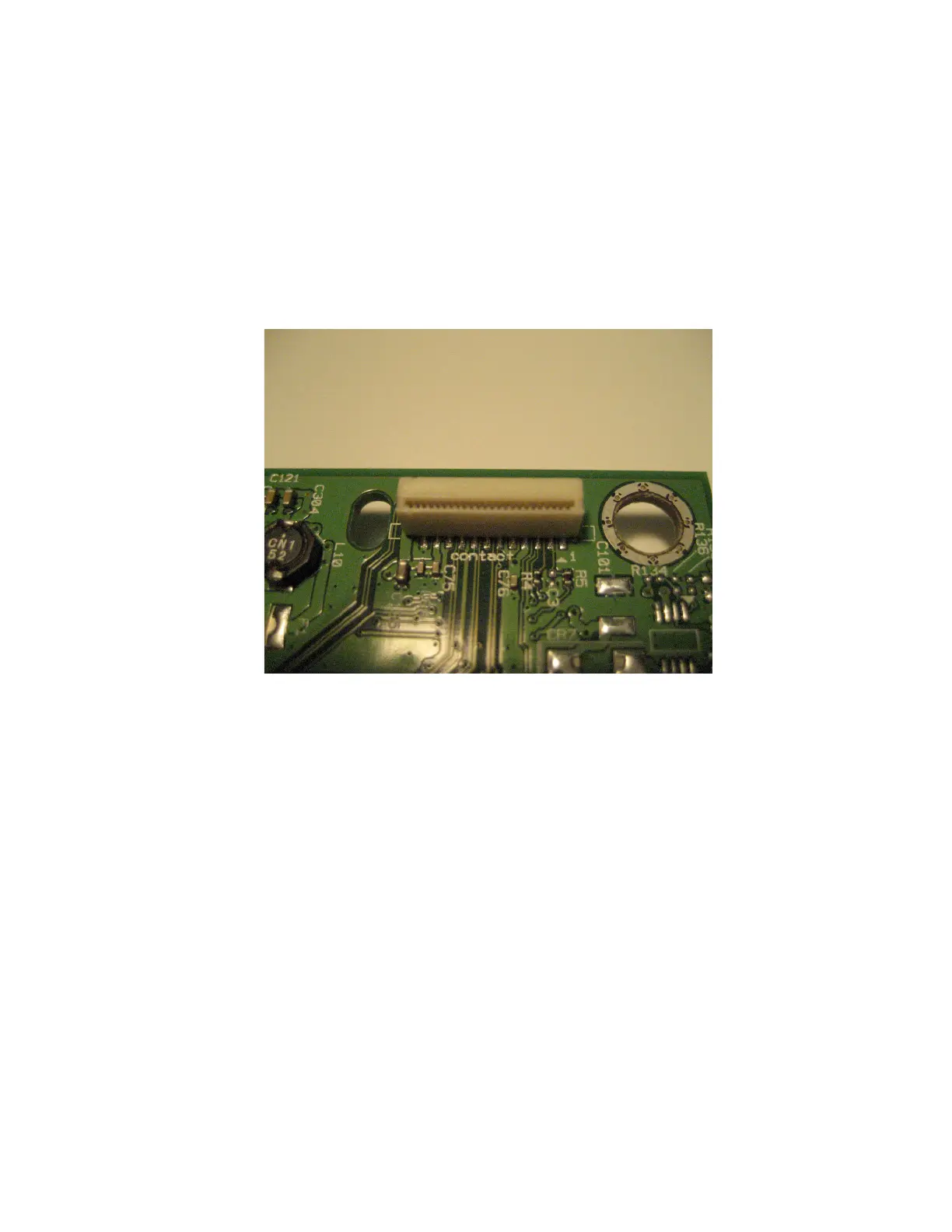

1 Looking at the connector, take note on which side the contacts are located. Many boards will have the word
“contacts” stamped on them to indicate which side of the LIF has the contacts. When looking at the board,
take note that the contacts from the board to the connector are located on the side of the connector with
the contacts.
2 Insert the cable squarely into the connector.
Note: Verify that the cable is installed straight into the connector. If the cable is not installed properly,
then intermittent failures could occur.
4600-830, -835, -895
Parts removal
174

Lexmark M3250 Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	50 ppm
Printing colors	Black
Maximum duty cycle	175000 pages per month
Recommended duty cycle	2000 - 20000 pages per month
Number of print cartridges	1
Page description languages	-
Paper input type	Paper tray
Total input capacity	650 sheets
Total output capacity	250 sheets
Maximum input capacity	2300 sheets
Maximum number of input trays	4
Multi-Purpose tray input capacity	100 sheets
Envelopes sizes	7 3/4, 9, 10, DL
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm), Universal
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
USB connector	USB Type-A / USB Type-B
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Processor cores	2
Processor frequency	1000 MHz
Sound pressure level (printing)	55 dB
Operating altitude	0 - 2896 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Sustainability certificates	EPEAT Silver, ENERGY STAR
Power consumption (printing)	- W
Control type	Touch
Product color	Black, White
Display diagonal	4.3 \
Market positioning	Business

Weight and Dimensions

Depth	373.4 mm
Width	398.8 mm
Height	302.3 mm
