Lexmark M3250

Controller board removal
MS621 controller board
1 Remove the right cover. See “Right cover removal” on page 186.
2 Disconnect all the cables.

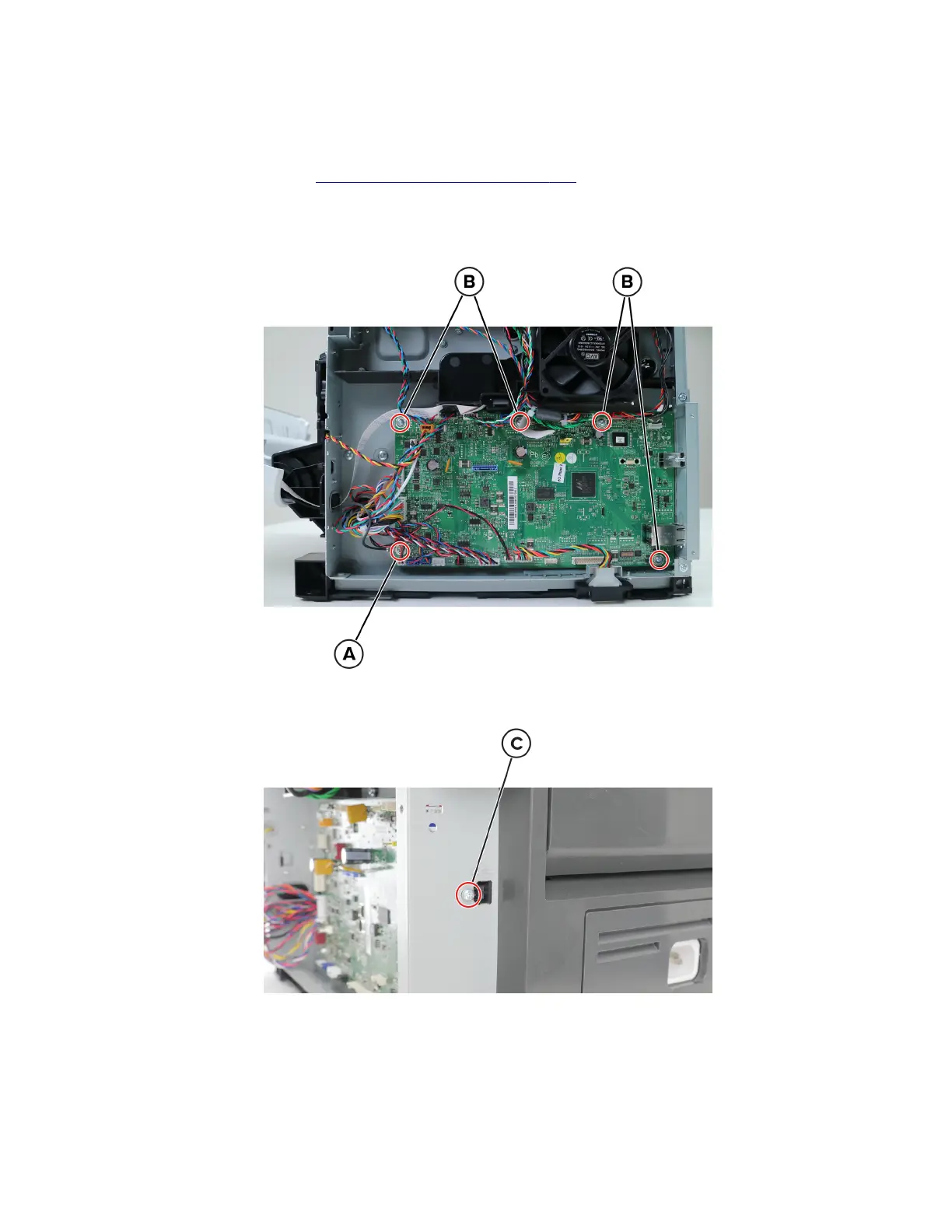

3 Remove the ground screw (A) and the four screws (B).
4 Remove the screw (C).
5 Remove the controller board.
4600-830, -835, -895
Parts removal
194
