Lexmark M3250 Service Manual

Horizontal bottom contact connector
This FRU contains a horizontal bottom contact cable connector. Read the instructions before proceeding.
The horizontal bottom contact connector uses a
flip
locking actuator to lock the ribbon cable into the Zero
Insertion Force (ZIF) connector. The cable is inserted horizontally into the connector.
Warning—Potential Damage: When opening or closing this type of actuator, gently lift the center of the
actuator using your
finger.
Do not use a
fingernail
or screwdriver to open the actuator. This could damage
the ribbon cable. Do not close the actuator from the ends of the actuator.

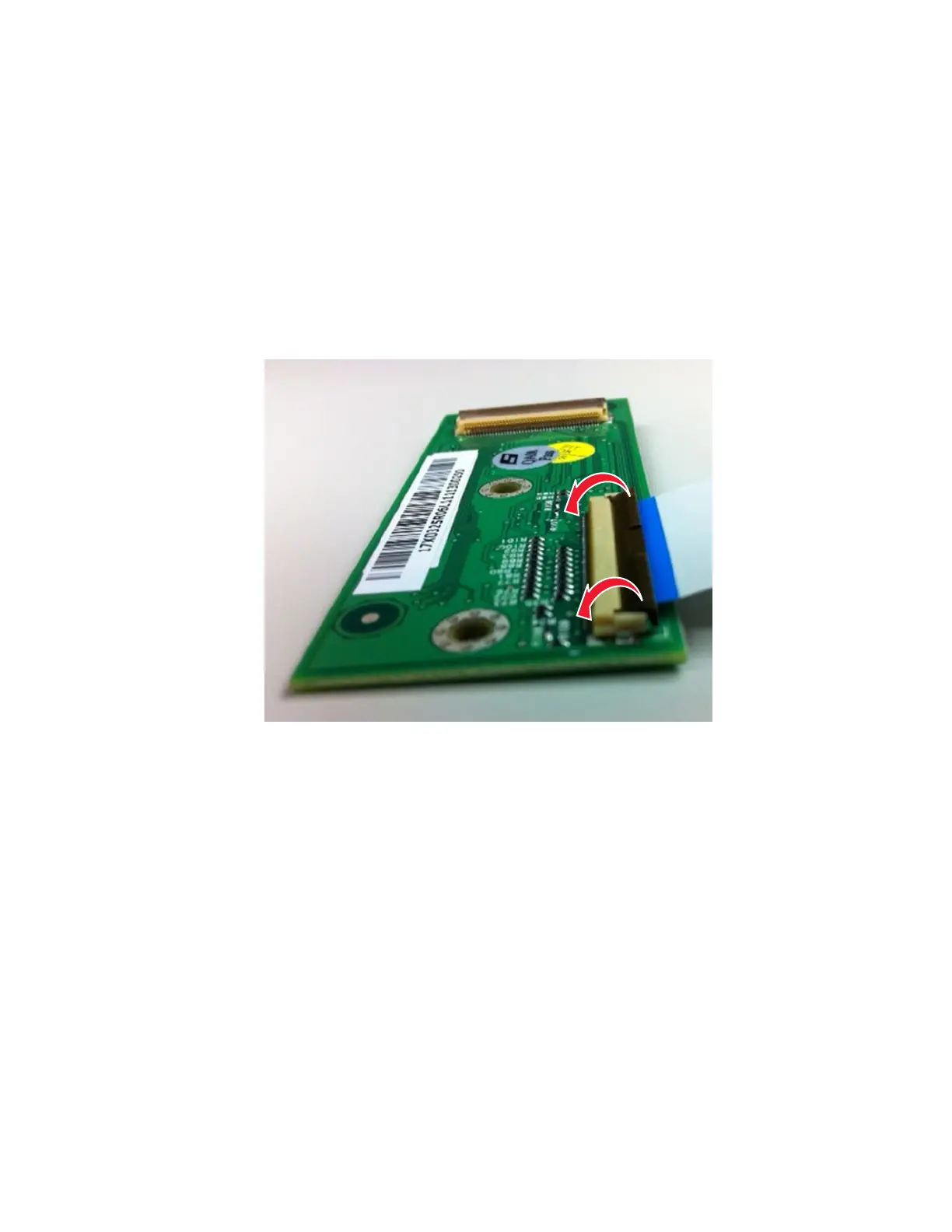

Removing a cable from the horizontal bottom contact connector
1 Place two
fingers
towards each end of the locking actuator, and then gently lift the actuator to the unlocked
position.
2 Slide the cable out of the connector.
4600-830, -835, -895
Parts removal
165

Lexmark M3250 Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Time to first page (black, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	50 ppm
Printing colors	Black
Maximum duty cycle	175000 pages per month
Recommended duty cycle	2000 - 20000 pages per month
Number of print cartridges	1
Page description languages	-
Paper input type	Paper tray
Total input capacity	650 sheets
Total output capacity	250 sheets
Maximum input capacity	2300 sheets
Maximum number of input trays	4
Multi-Purpose tray input capacity	100 sheets
Envelopes sizes	7 3/4, 9, 10, DL
Paper tray media types	Card stock, Envelopes, Labels, Plain paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size), Letter (media size), Oficio (media size), Statement (140 x 216mm), Universal
ISO A-series sizes (A0...A9)	A4, A5, A6
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Mobile printing technologies	Apple AirPrint, Google Cloud Print, Mopria Print Service
USB connector	USB Type-A / USB Type-B
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Processor cores	2
Processor frequency	1000 MHz
Sound pressure level (printing)	55 dB
Operating altitude	0 - 2896 m
Operating temperature (T-T)	16 - 32 °C
Operating relative humidity (H-H)	8 - 80 %
Sustainability certificates	EPEAT Silver, ENERGY STAR
Power consumption (printing)	- W
Control type	Touch
Product color	Black, White
Display diagonal	4.3 \
Market positioning	Business

Weight and Dimensions

Depth	373.4 mm
Width	398.8 mm
Height	302.3 mm
