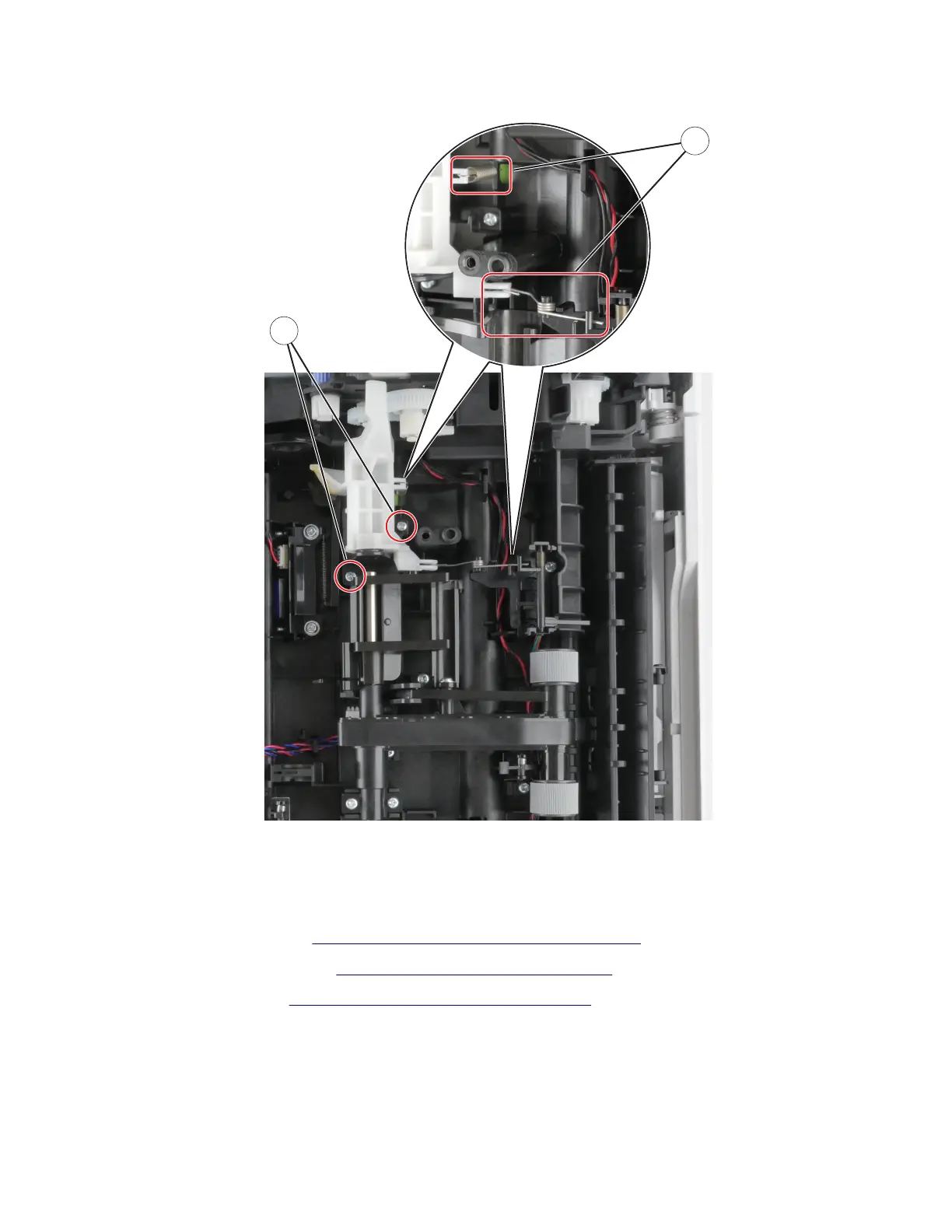

8 Remove the two screws (A) and release the two springs (B).
B
A
9 Remove the lift cam.
Pick/lift motor gearbox removal
1 Remove the rear cover. See “Rear door and cover removal” on page 234.
2 Remove the power supply. See “Power supply removal” on page 216.
3 Remove the duplex. See “Duplex assembly removal” on page 218.
4 Remove the six screws (A).
4600-830, -835, -895
Parts removal
232
