Installation notes:

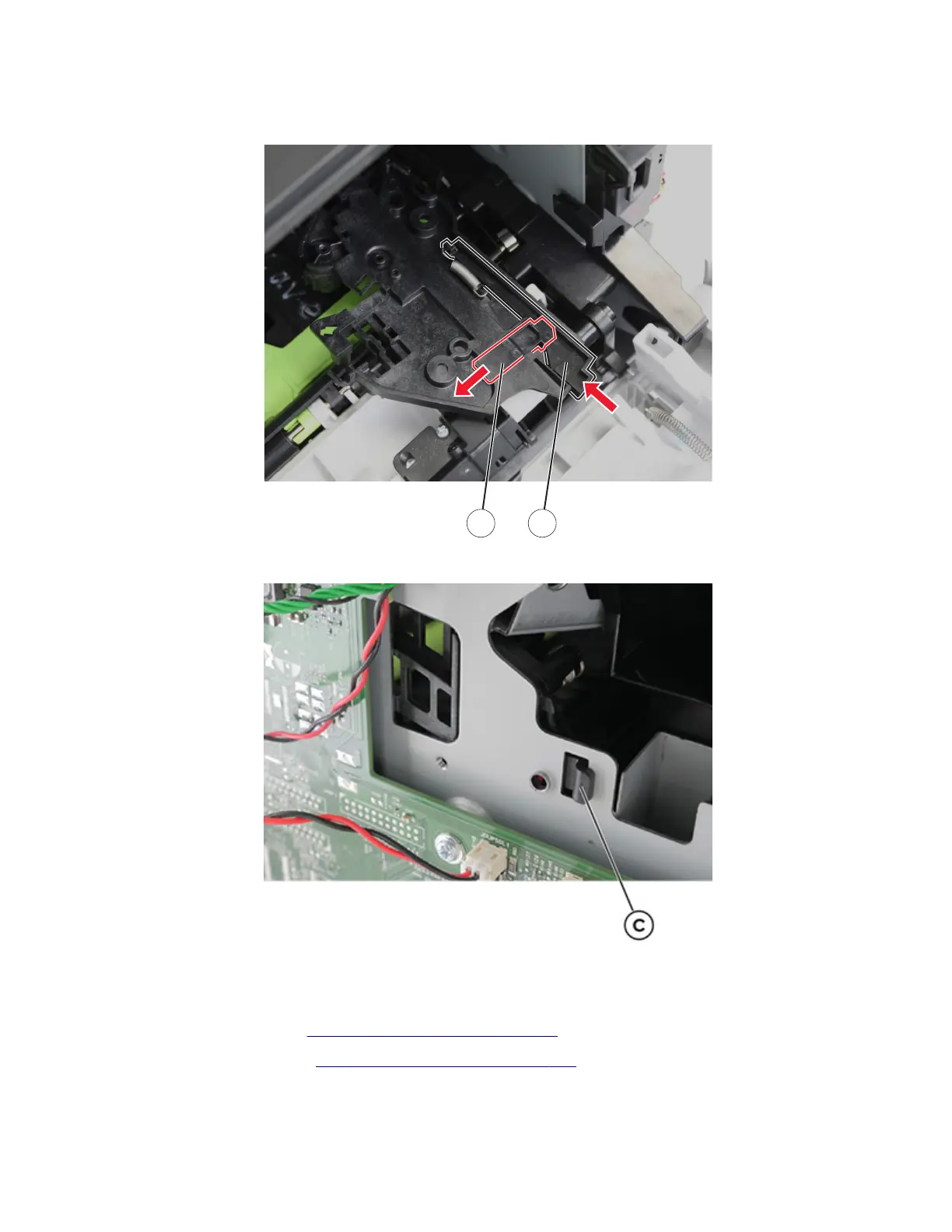

• To test if the spring and actuator are properly installed, press the actuator (A). The lock (B) should move up.
B
A
• Make sure that the tab (C) at the back of the cartridge guide is properly installed as shown.
Cartridge barrel shutter sensor kit removal
1 Remove the top cover. See “Top cover removal” on page 238.
2 Remove the right cover. See “Right cover removal” on page 186.
3 Disconnect the cable JCVR1 from the controller board.
4600-830, -835, -895
Parts removal
198
