Lexmark M3250

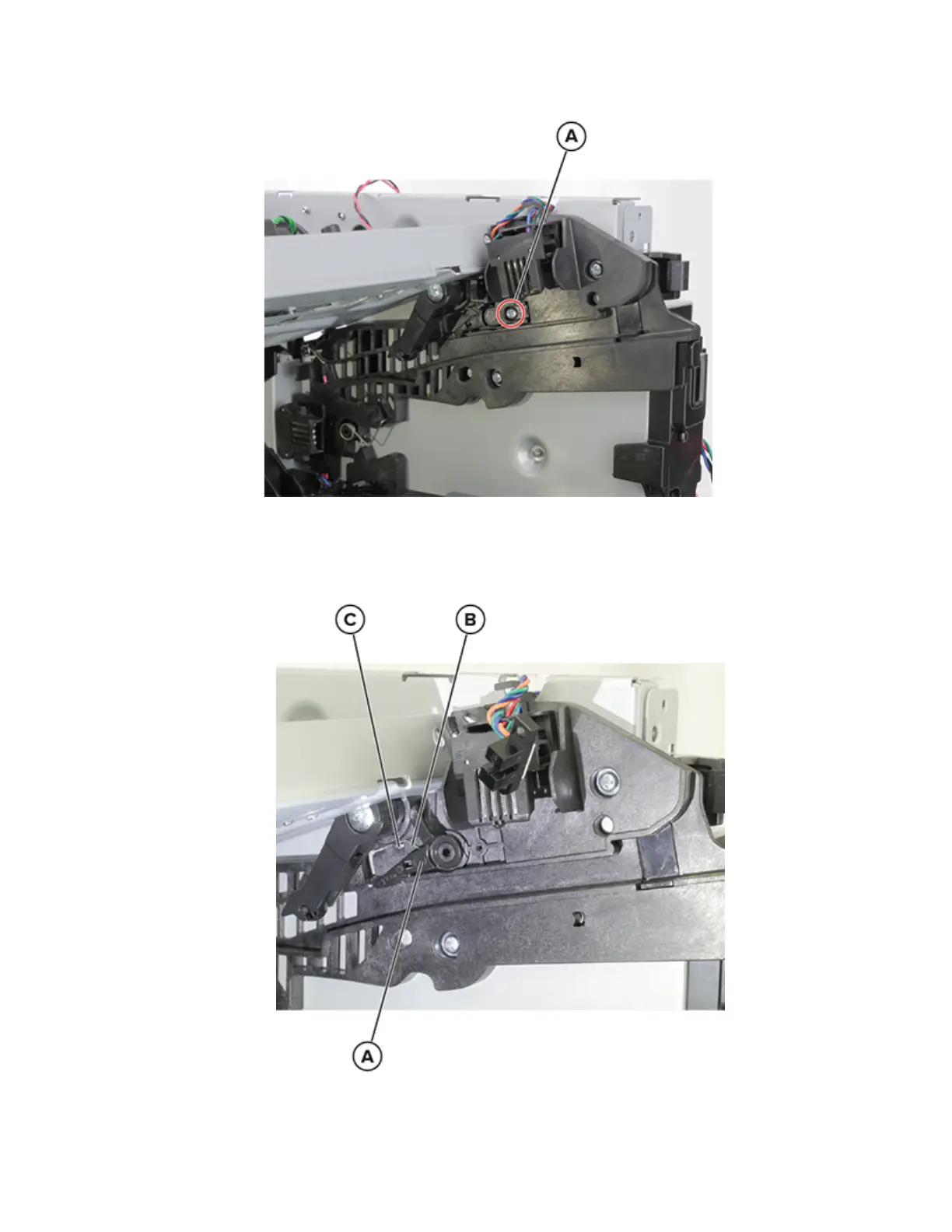

4 Remove the screw (A), and then remove the bracket, actuator, spring, and sensor.
Installation notes:
a Install the sensor (cartridge barrel shutter) actuator (A) as shown.
Note: Make sure that the spring (B) is behind the boss (C).
4600-830, -835, -895
Parts removal
199
