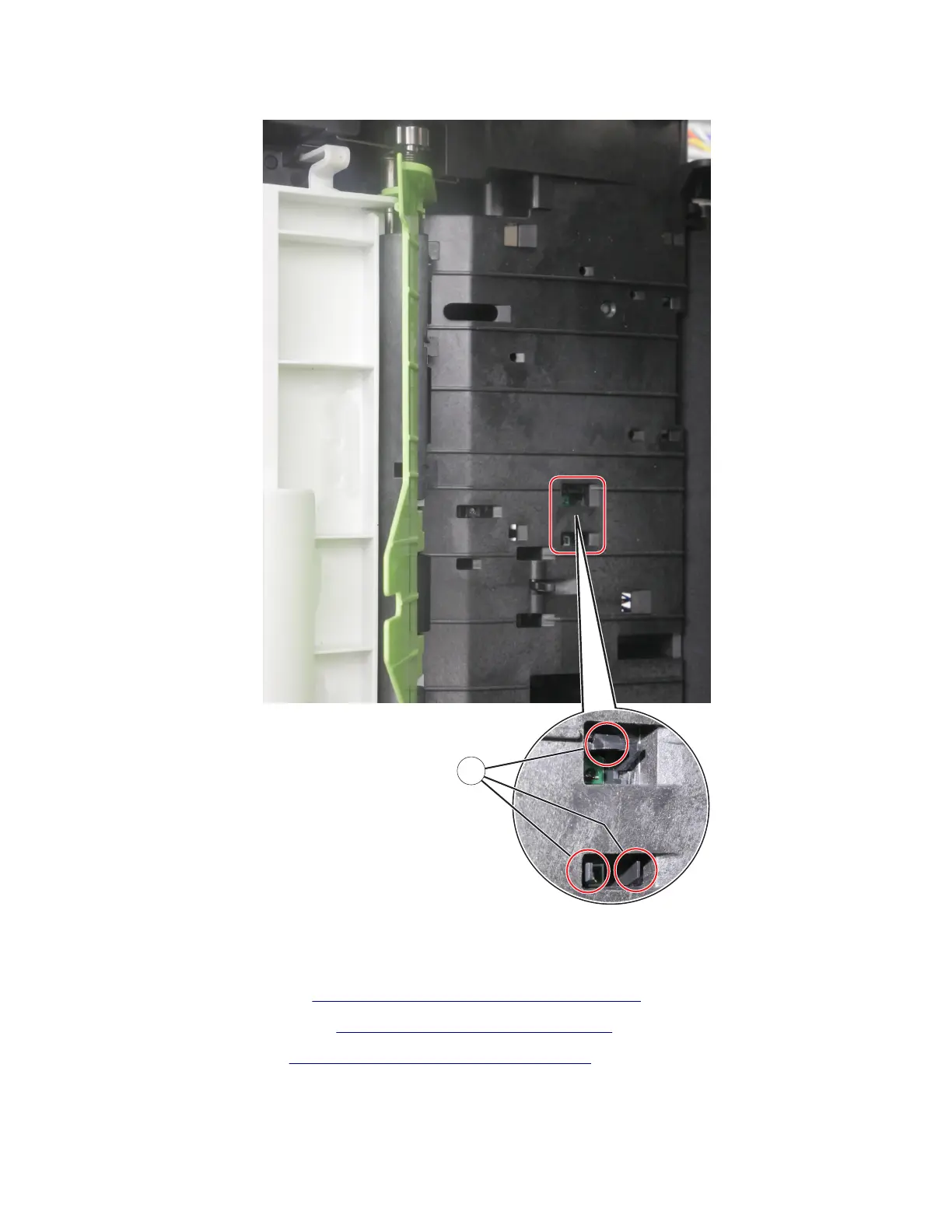

5 Release the three latches (B).
B
A
B
Sensor (trailing edge) removal
1 Remove the rear cover. See “Rear door and cover removal” on page 234.
2 Remove the power supply. See “Power supply removal” on page 216.
3 Remove the duplex. See “Duplex assembly removal” on page 218.
4 Open the controller board access cover, and then disconnect the cable JACM1.
4600-830, -835, -895
