Redrive gear plate removal
1 Remove the top cover. See “Top cover removal” on page 238.
2 Remove the left cover. See “Left cover removal” on page 177.
3 Remove the redrive assembly. See “Redrive assembly removal” on page 236.

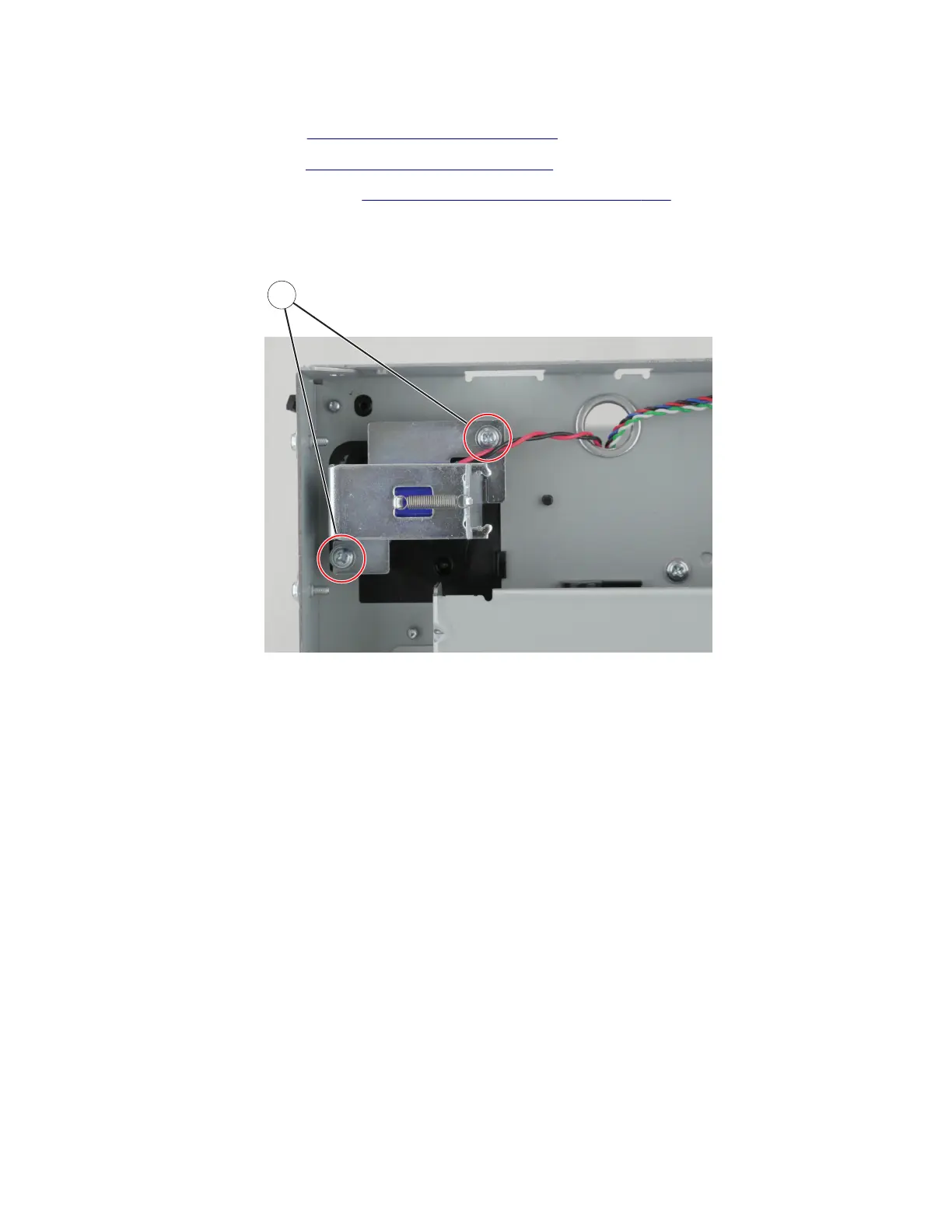

4 Remove the two screws (A), and then detach the reverse solenoid.
Note: Do not disconnect the reverse solenoid cable from the controller board.
A
4600-830, -835, -895
Parts removal
