3 Remove the cover, buttons, and board.
Control panel (4.3‑inch display) cover, buttons, and board removal
1 Remove the right cover. See “Right cover removal” on page 186.
2 Remove the nameplate. See “Nameplate removal” on page 201.
3 Remove the control panel assembly. See “Control panel assembly removal (MS622de and MS622dte)”
on page 203.

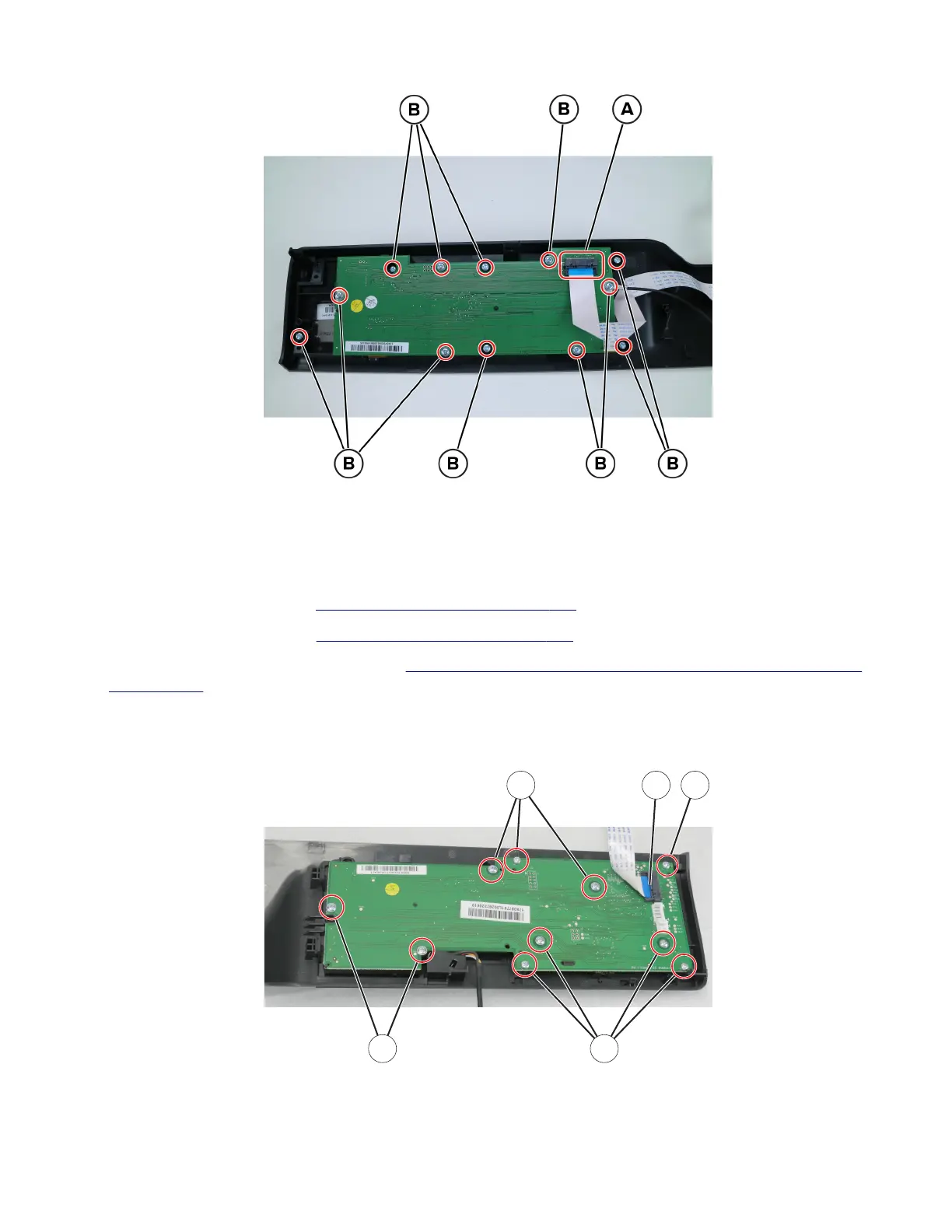

4 Release the latch (A), and then remove the cable.
5 Remove the 10 screws (B).
B
BB
B A
6 Remove the control panel cover, buttons, and board.
4600-830, -835, -895
Parts removal
205
